6SFB-HF-CC-100M18G-MAH-RX-TX Active

Integrated Module - Dual 5-Channel Switched Filter Banks

6SFB-HF-CC-100M18G-MAH-RX-TX
  • 6SFB-HF-CC-100M18G-MAH-RX-TX
  • 6SFB-HF-CC-100M18G-MAH-RX-TX
Product Feature

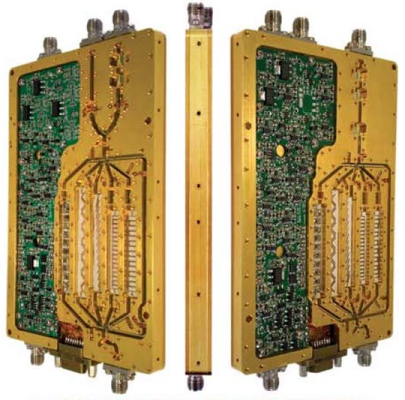

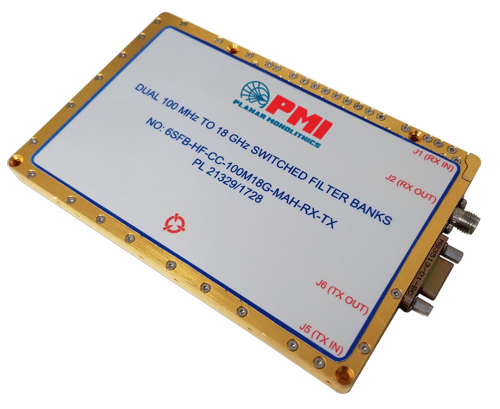

PMI Model 6SFB-HF-CC-100M18G-MAH-RX-TX is an integrated module containing two 5-Channel Switched Filter Bank covering 0.1 to 18 GHz. A lossless receive switched filter band and a lossless transmit switched filter bank allow 1 of 5 filter paths to be chosen. Both filter banks can be used simultaneously in different bands. The unit measures only 4.8" x 3.08" x 0.365" with a 15 Pin Micro-D connector for power/control, SMPM and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 5
Operating Frequency (GHz): 0.1 to 18
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Center Frequency (GHz): Channel 1: 2.4 GHz (Cut-Off)
Channel 2: 13.4 GHz
Channel 3: 15.4 GHz
Channel 4: 17.2 GHz
Switching Speed: 100 ns
Control Type: TTL
DC Voltage: +12 VDC / +5 VDC / +3.3 VDC / -12 VDC
DC Current (mA): 600 mA / 550 mA / 0 mA / 300 mA
VSWR: 2:1 Max
Rejection: Channel 1: -40 dBc Typ @ 2.8 to 18 GHz, -30 dBc Min

Channel: -40 dBc Typ @ 0.1 to 12 GHz, -30 dBc Min,
-40 dBc Typ @14.8 to 18 GHz, -30 dBc Min

Channel 3: -40 dBc Typ @ 0.1 to 14 GHz, -30 dBc Min,
-40 dBc Typ @ 16.8 to 18 GHz, 30 dBc Min

Channel 4: -40 dBc Typ @ 0.1 to 16.0 GHz, -30 dBc Min,
-40 dbc Typ @ 18.4 to 20.0 GHz), -30 dBc Min
Connectors: J1 (RX IN): SMPM
J2 (RX OUT): SMA Female
J5 (TX IN): SMPN
J6 (TX OUT): SMPM
Power & Control: 15 Pin Micro-D
Size: 4.80" x 3.08" x .0365"
Finish: Gold Plated
Export Classification (ECCN): EAR99
