7SFB-0R258R3-5-15-SFF Active

7-Channel Switch Filter Bank

7SFB-0R258R3-5-15-SFF
  • 7SFB-0R258R3-5-15-SFF
  • 7SFB-0R258R3-5-15-SFF
  • 7SFB-0R258R3-5-15-SFF
Product Feature

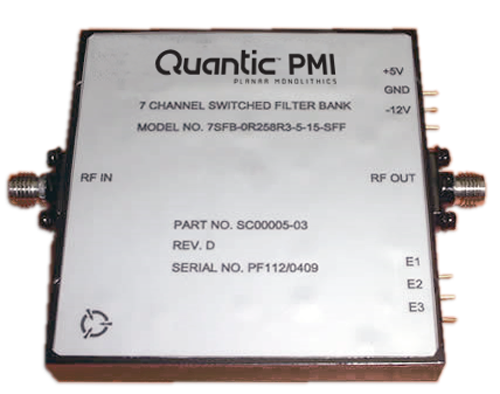

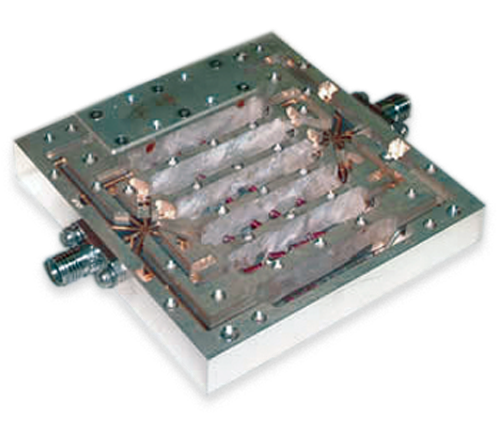

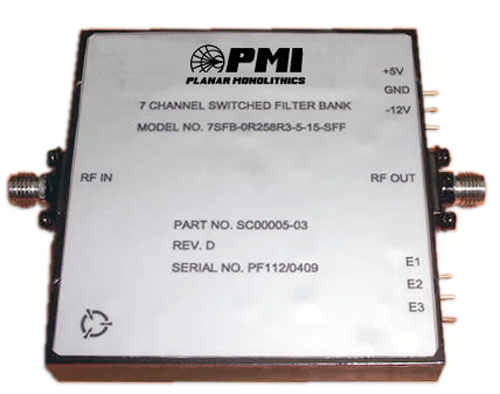

Quantic PMI Model 7SFB-0R258R3-5-15-SFF is a 7-channel switched filter bank with internal TTL driver offers a mix of lumped & combined filters that cover the frequency band of 0.25 to 8.3 GHz. Package size is 2.6" x 2.5" x 0.41" with SMA Female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 7
Operating Frequency (GHz): 0.25 to 8.3
Frequency Min (GHz): 0.25
Frequency Max (GHz): 8.3
Insertion Loss (dB): 5 dB
Switching Speed: 0.8 µs
Control Type: TTL
DC Voltage: +5 VDC / -15 VDC
DC Current (mA): 195 mA / 75 mA
Connectors: SMA Female
Size: 2.6" x 2.5" x 0.41"
Export Classification (ECCN): EAR99
