8SFB-250M20G-CD-SFF Active
10-Channel Switched Filter Bank, 1U / 19" Rack

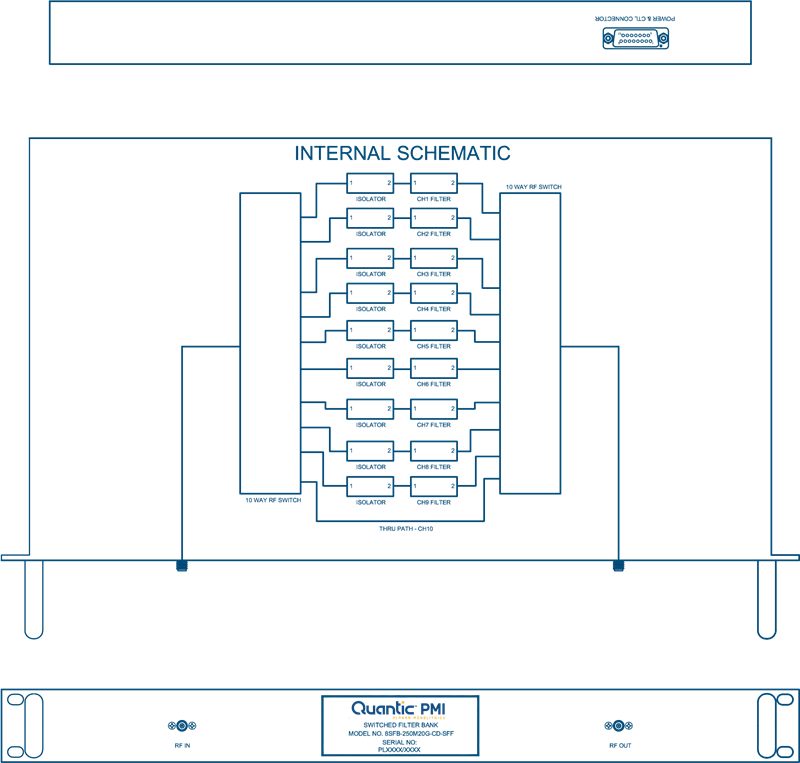

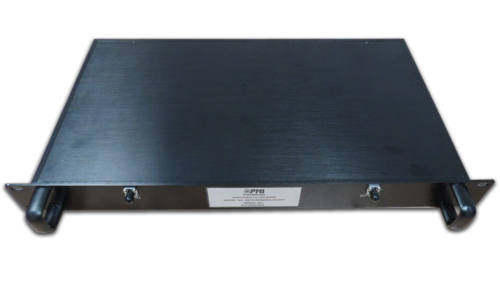

PMI Model 8SFB-250M20G-CD-SFF is a 10-channel switched filter bank offering ultrafast switch speed, high rejection with low loss and 20 dB reverse isolation. Each filter path includes a narrow band isolator to increase reverse isolation. This Quantic PMI Model is ideal for harmonic rejection and improving dynamic range during linearity testing of active devices. Housed in a 1U, 19" x 10.6" rack mount chassis with a 15 Pin subminiature D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| No of Filter Channels: | 10 |
| Operating Frequency (GHz): | 0.25 to 20 |
| Frequency Min (GHz): | 0.25 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 8 dB |
| Switching Speed: | 100 ns |
| Control Type: | TTL - Independent |
| DC Voltage: | +15 VDC / -15 VDC |
| DC Current (mA): | 500 mA / 100 mA |
| VSWR: | 2.0:1 Max |
| RF Power Rating: | 20 dBm |
| Connectors: | RF: SMA Female Power & Control: 15 Pin Micro-D |
| Size: | 1U / 19' x 10.6" Rack mount chassis |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 ºC to 50 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
