8SFB-2G18G-SFF Active
8-Channel Switch Filter Bank

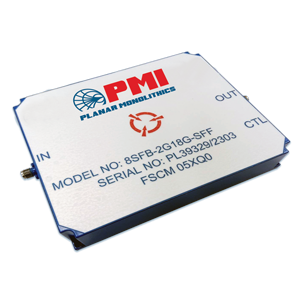

PMI Model 8SFB-2G18G-SFF is a Switch Filter Bank with a frequency range of 2 to 18 GHz and has an insertion loss of 8 dB typical, a VSWR of 2.0:1, a pass band ripple of ±0.5 dB, a rejection of 82.8 dB, a switching speed of 200 ns, and an input power of 15 dBm. This model has SMA female connectors and a 9 Pin Micro-D female connector and is 5.0" x 4.13" x 1.0".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| No of Filter Channels: | 8 |
| Operating Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 8 dB Typ, 10 dB Max |
| Switching Speed: | 200 ns Max |
| Control Type: | TTL |
| DC Voltage: | +12 VDC / -12 VDC |
| DC Current (mA): | 500 mA / 100 mA |
| VSWR: | 2.0:1 Max |
| Impedance: | 50 Ohm |
| Input Power: | 15 dBm Max |
| Passband Ripple: | ±0.5 dB Typ, ±1 dB Max |
| DC and Control: | 9 Pin Micro-D Female |
| Connectors: | SMA Female |
| Size: | 5.0" x 4.13" x 1.0" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
