8SFB-6G18G-CD-15-SFF-HSS

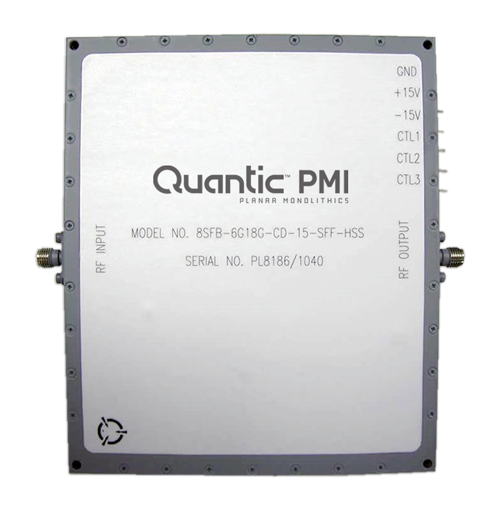

PMI Model No. 8SFB-6G18G-CD-15-SFF-HSS is a an eight channel switch filter bank. This model has eight filter channels within the 6.0 to 18.0GHz frequency range. This model includes an integral TTL driver and offers fast switching speeds of less than 100nsec.

Channel 1 Specifications:
Channel 1Center Frequency7.0GHz
Channel 1 -3dB Bandwidth2.0GHz
Cannel 1 Rejection

-35dBc min. @ 167% BW

Channel 2 Specifications:
Channel 2 Center Frequency8.5GHz
Channel 2 -3dB Bandwidth1.0GHz
Channel 2 Rejection

-35dBc min. @ 167% BW

Channel 3 Specifications:
Channel 3 Center Frequency9.25GHz
Channel 3 -3dB Bandwidth0.5GHz
Channel 3 Rejection

-35dBc min. @ 167% BW

Channel 4 Specifications:
Channel 4 Center Frequency9.75GHz
Channel 4 -3dB Bandwidth0.5GHz
Channel 4 Rejection

-35dBc min. @ 167% BW

Channel 5 Specifications:
Channel 5 Center Frequency11.0GHz
Channel 5 -3dB Bandwidth2.0GHz
Channel 5 Rejection

-35dBc min. @ 167% BW

Channel 6 Specifications:
Channel 6 Center Frequency13.0GHz
Channel 6 -3dB Bandwidth2.0GHz
Channel 6 Rejection

-35dBc min. @ 167% BW

Channel 7 Specifications:
Channel 7 Center Frequency14.5GHz
Channel 7 -3dB Bandwidth1.0GHz
Channel 7 Rejection

-35dBc min. @ 167% BW

Channel 8 Specifications:
Channel 8 Center Frequency16.5GHz
Channel 8 -3dB Bandwidth3.0GHz
Channel 8 Rejection

-35dBc min. @ 167% BW

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 8
Full Operating Frequency: 6000 - 18000 MHz
Insertion Loss: 5.5 dB
Switching Speed: 100 ns
Control Type: TTL
DC Voltage: 15, -15
DC Current (mA): 200, 200
Size: 4.33" x 5.1" x 0.98"
VSWR: 2.0:1 max.
Connectors: SMA(F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -65ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
