8SFB-7R0G7R8G-CD-12-SFF Active

8 Channel Switched Filter Bank

8SFB-7R0G7R8G-CD-12-SFF
Product Feature

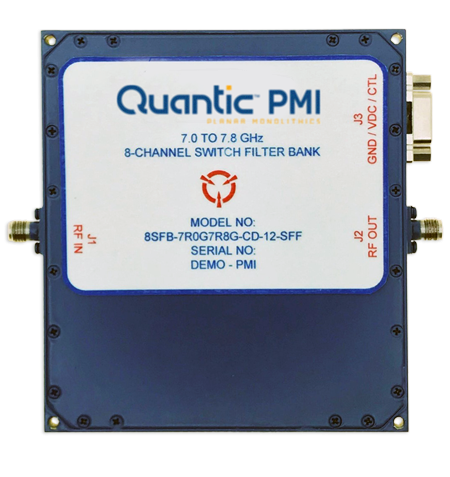

Quantic Quantic PMI Model 8SFB-7R0G7R8G-CD-12-SFF is an Eight Channel Switched Filter Bank offering ultra-fast switching speed and high rejection with low loss.  Specifications include frequency range of 7.0 to 7.8 GHz; insertion loss of 12 dB maximum, a gain flatness of ±2.5 dB, a VSWR of 2.0:1, and a switching speed of 200 ns. This Switch Filter Bank size is 3.54" x 3.94" x 0.59" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 8
Operating Frequency (GHz): 7 to 7.8
Frequency Min (GHz): 7
Frequency Max (GHz): 7.8
Insertion Loss (dB): 9 dB Max @ center frequencies,
12 dB Max @ center frequencies ±25 MHz
Switching Speed: 200 ns
Control Type: TTL
DC Voltage: +5 VDC
-12 VDC
DC Current (mA): 650 mA Typ / 100 mA Typ
VSWR: 2.0:1 Max
Impedance: 50 Ohm
Input Power: 1 W CW Max
Connectors: RF: SMA Female
DC & Control: 15 Pin Micro-D (Male)
Size: 3.94" x 3.54" x 0.59"
Finish: Painted Blue
Weight: 300 ± 50 g [10.6 ±1.7 oz]
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
