8SFB-7R5G18G-CD-1 Active
8-Channel Switch Filter Bank

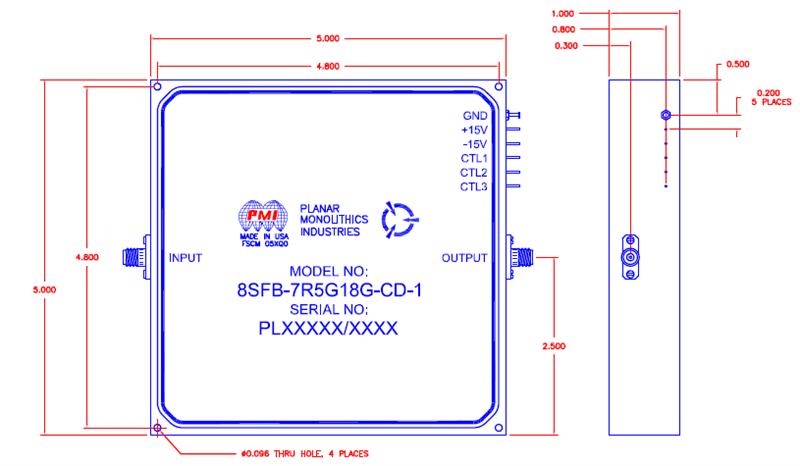

Quantic PMI Model 8SFB-7R5G18G-CD-1 is an 8-Channel Switch Filter Bank that operates over the frequency range of 7.5 to 18 GHz with a 7.5 dB insertion loss and 55 dB of isolation. This unit is capable of handling up to 1 W (30 dBm) CW maximum. Package size is 5.0" x 5.0" x 1.0" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| No of Filter Channels: | 8 |
| Operating Frequency (GHz): | 7.5 to 18 |
| Frequency Min (GHz): | 7.5 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 55 dB Typ |
| Insertion Loss (dB): | 7.5 dB Typ |
| Switching Speed: | 100 ns Max |
| Control Type: | TTL, 3 Lines |
| DC Voltage: | +15 VDC @ 200 mA Max -15 VDC @ 200 mA Max |
| VSWR: | 2.0:1 Typ |
| Impedance: | 50 Ohm |
| Power Handling: | 1 W (30 dBm) CW Max |
| Connectors: | SMA Female - removable |
| Size: | 5.0" x 5.0" x 1.0" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
