8SFB-7R8G-18R1G-SFF Preliminary
8-Channel Switch Filter Bank

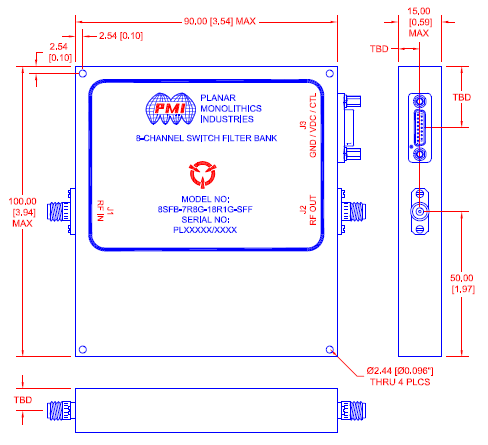

Quantic PMI Model 8SFB-7R8G-18R1G-SFF is a 7.875 to 18.125 GHz, 8 Channel Switched Filter Bank offering ultra fast switching speed and high rejection with low loss. Package size is 3.94" x 3.54" x 0.59" with a 15 Pin Micro-D male connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| No of Filter Channels: | 8 |
| Operating Frequency (GHz): | 7 to 7.8 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 7.8 |
| Insertion Loss (dB): | 5 dB |
| Switching Speed: | 500 ns |
| Control Type: | TTL |
| DC Voltage: | +5 VDC / -12 VDC |
| DC Current (mA): | 500 mA / 100 mA |
| VSWR: | 2.0:1 Max |
| Impedance: | 50 Ohm |
| Connectors: | RF: SMA Female Power & Control: 15 Pin Micro-D male |
| Size: | 3.94" x 3.54" x 0.59" |
| Finish: | Painted Blue |
| Weight: | 300 ± 50 g [10.6 ± 1.7 oz] goal |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -30 ºC to +70 ºC |
| Altitude: | Sea Level to 25, 000 Feet |
