8SFB-9R8G18R1G-CD-12-SFF Preliminary

8-Channel Switch Filter Bank

8SFB-9R8G18R1G-CD-12-SFF
Product Feature

Quantic PMI Model 8SFB-9R8G18R1G-CD-12-SFF is a 9.8 to 18.1 GHz, 8 Channel Switched Filter bank offering ultra fast switching speed and high rejection with low loss.  Package size is 3.94" x 3.54" x 0.59" with a 15 Pin Micro-D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 8
Operating Frequency (GHz): 9.8 to 18.1
Frequency Min (GHz): 9.8
Frequency Max (GHz): 18.1
Insertion Loss (dB): 6 dB
Switching Speed: 200 ns
Control Type: TTL
VSWR: 1.8:1 Max
Video Leakage: -75 dBm
Impedance: 50 Ohm
Connectors: RF: SMA Female
Power & Control: 15 Pin Micro-D

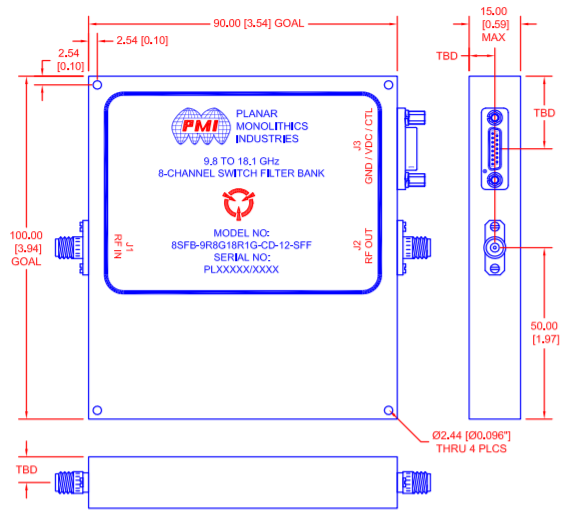

Size: 3.94" x 3.54" x 0.59"
Finish: Painted Blue
Weight: 300 ±50 g [10.6 ±1.7 oz] Goal
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: 30% to 85% Relative Humidity
Vibration: MIL-STD-810G Rev 1
