| General Parameters: |
|---|
| Status: | Active |
|---|
| No of Filter Channels: | 8 |
|---|
| Operating Frequency (GHz): | 0.2 to 2.5 |
|---|
| Frequency Min (GHz): | 0.2 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Passband Frequency (GHz): | Channel 1: 0.2 to 0.3 GH
Channel 2: 0.29 to 0.4 GHz
Channel 3: 0.39 to 0.6 GHz
Channel 4: 0.59 to 0.8 GHz
Channel 5: 0.79 to 1 GHz
Channel 6: 1 to 1.5 GHz
Channel 7: 1.49 to 2 GHz
Channel 8: 1.99 to 2.5 GHz |
|---|
| Isolation (dB): | 70dB min |
|---|
| Insertion Loss (dB): | 8.5 dB |
|---|
| Switching Speed: | 1 µs |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +5 VDC / -5 VDC |
|---|
| DC Current (mA): | 70 mA / 70 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Power Rating: | 27 dBm CW Max |
|---|
| Rejection: | Channel 1: -60 dBc Min @ 0.4 to 3 GHz
Channel 2: -60 dBc Min @ 0.5 to 3 GHz
Channel 3: -60 dBc Min @ 0.8 to 3 GHz
Channel 4: -60 dBc Min @ 1 to 3 GHz
Channel 5: -60 dBc Min @ 1.400 to 3 GHz
Channel 6: -60 dBc Min @ 1.9 to 4 GHz
Channel 7: -60 dBc Min @ 2.500 to 5 GHz
Channel 8: -60 dBc Min @ 3 to 6 GHz |
|---|
| Connectors: | SMAFemale |
|---|

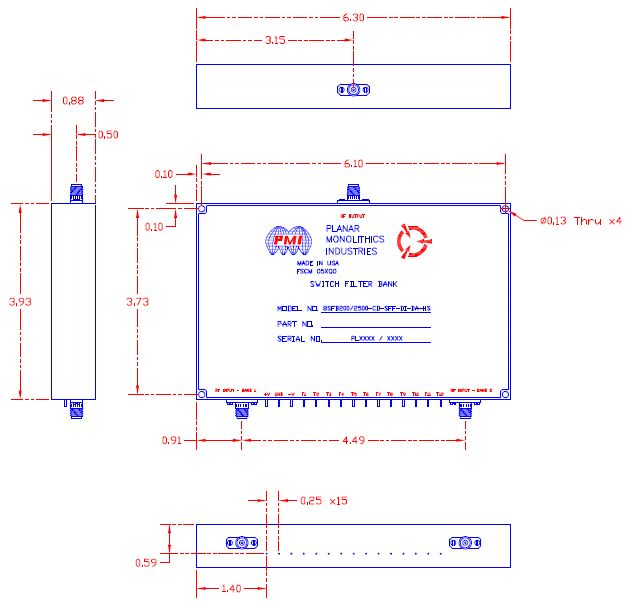

| Size: | 6.3" x 3.93" x 0.88" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
