APD-3-800M2D5G-NFF-50W * Active
3 Way Power Divider
Buy Now
Additional Documents
- Product Feature
- Test Report - 8/6/15
- S-Parameters
- PL02641 - Unit Data
- PL02642 - Unit Data
- PL02643 - Unit Data
- PL02644 - Unit Data
- PL02645 - Unit Data
- PL13006 - Unit Data
- PL13007 - Unit Data
- PL13008 - Unit Data
- PL13009 - Unit Data
- PL13010 - Unit Data
- PL13011 - Unit Data
- PL13012 - Unit Data
- PL13013 - Unit Data
- PL13014 - Unit Data
- PL13015 - Unit Data

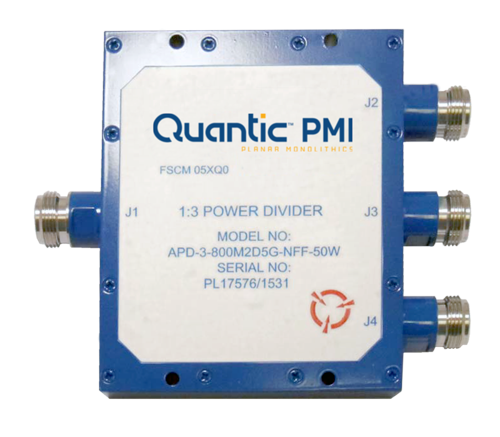

Quantic PMI Model APD-3-800M2D5G-NFF-50W is a 3 way power divider featuring high isolation, low insertion loss, and low VSWR that is designed for broadband use and high reliability. Housing measures 3.94" x 3.23" x 0.87" and is outfitted with Type N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 3 Way |
| Frequency Range (GHz): | 0.8 to 2.5 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 2.5 |
| Isolation (dB): | 20 dB Min |
| Isolation (dB) - Measured: | 20 dB Min - Measured 21.84 dB |
| Insertion Loss (dB): | 0.6 dB Max |
| Insertion Loss (dB) - Measured: | 0.6 dB Max - Measured 0.46 dB |
| VSWR (In/Out): | 1.3:1 / 1.3:1 |
| Amplitude Balance: | ±0.35 dB |
| Phase Balance: | <+3° |
| Power Handling: | 50 W Max (Forward), 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | Type N Female |
| Size: | 3.94" x 3.23" x 0.87" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
