| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 4 Way |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 17 dB Min |
|---|
| Isolation (dB) - Measured: | 19.87 dB |
|---|
| Insertion Loss (dB): | 1.8 dB Max |
|---|
| Insertion Loss (dB) - Measured: | 1.03 dB |
|---|
| VSWR (In/Out): | 1.6:1 Max, 1.5:1 Max |
|---|
| Amplitude Balance: | 0.5 dB Max |
|---|
| Amplitude Balance (Measured): | 0.35 dB |
|---|
| Phase Balance: | ±6° Max |
|---|
| Phase Balance (Measured): | ±2° |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |

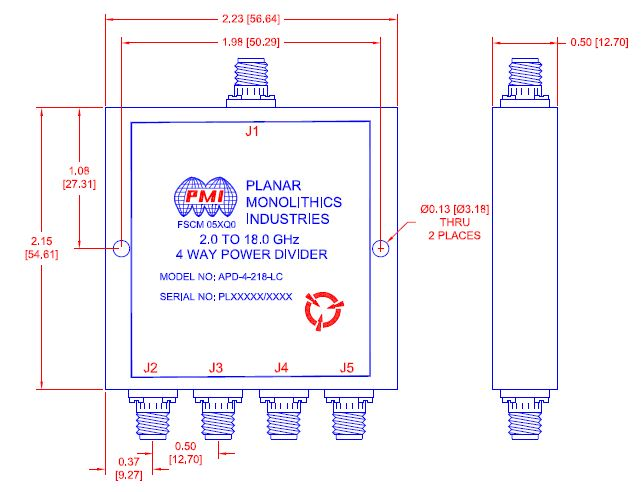

|---|
| Impedance: | 50 Ohm |
|---|
| Solder: | Lead Free, ROHS Compliant |
|---|
| Connectors: | SMA Female |
|---|
| Connector Body: | Passivated Stainless Steel |
|---|
| Size: | 1.75" x 1.75" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 250 g Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Operating Humidity: | Up to 95% (Non-Condensing) |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
