APD-4-218-LC-2-OPT6G18G Preliminary
4 Way Power Divider
Buy Now

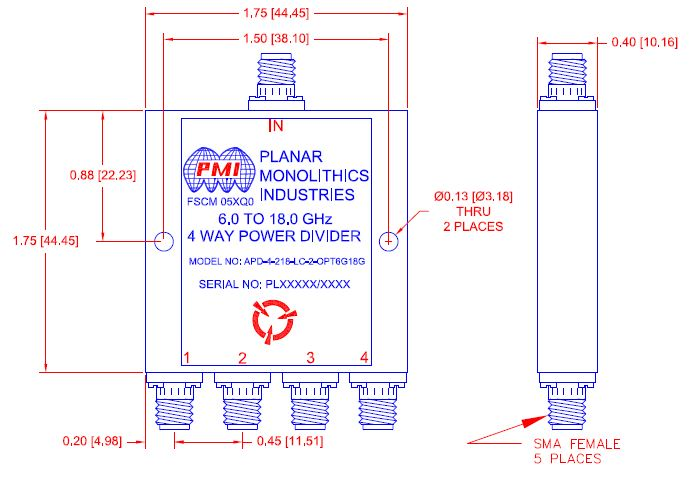

Quantic PMI Model APD-4-218-LC-2-OPT6G18G is a High Reliable Four Way Power Divider featuring excellent amplitude and phase balance, low insertion loss, and high isolation. Housing size is 1.75" x 1.75" x 0.4" with removable I/O SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 0.9 dB Max |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | 0.5 dB Max |
| Phase Balance: | ±3° Max |
| Power Handling: | 10 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Connector Body: | Passivated Stainless Steel |
| Size: | 1.75" x 1.75" x 0.4" |
| Finish: | Painted Blue |
| Weight: | 250 g Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -54 ºC to +110 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
