8-Way, Amplified Power Divider Module

Buy Now

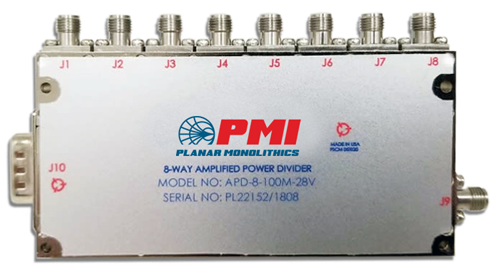

PMI Model No. APD-8-100M-28V is an 8-Way, Amplified Power Divider Module to provide a 100 MHz signal to 8 outputs with 4 dB of loss. This module balances a low noise figure with high output power.

Product Specifications

General Parameters:
Status: Active
Type: 8-Way
Frequency Min: 0.1 GHz
Frequency Max: 0.1 GHz
Isolation: 25 dB Typ
Insertion Loss: 4 dB ±1.5 dB Max
Insertion Loss (Measured): 4 dB ±1.5 dB Max. - Measured 3.1 dB
Frequency Range: 0.1 GHz
Noise Figure: 9.0 dB Max, 6.0 dB goal - Measured 7.9 dB
VSWR (In/Out): 2.0:1 Max - Measured 1.1:1 In/1.25:1 Out
Input Power P1dB: +13 dBm Typ - Measured +14.5 dBm
Input Power: +20 dBm Max (Survival) - Measured +20 dBm
Power Supply: +28 V @ 750 mA Max - Measured 172 mA
Finish: Gold Plated
Weight: 140 grams Max
Size: 4.00" x 2.00" x 0.55"
Environmental Ratings:
Operating Temperature: -40 ºC to +50 ºC
Non-Operating Temperature: -54 ºC to +100 ºC
Humidity: MIL-STD-202G, Method 103B Cond. B
Shock: MIL-STD-202G, Method 213B Cond. B
Vibration: MIL-STD-202G, Method 204D Cond. B
Altitude: MIL-STD-202G, Method 105C Cond. B
Temperature Cycle: MIL-STD-202G, Method 107D Cond. A
