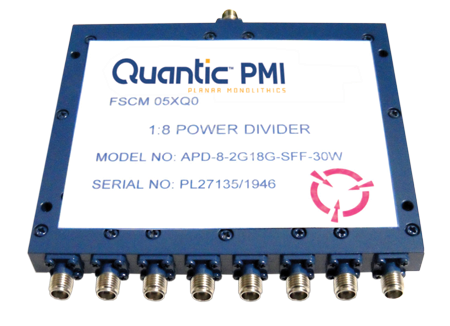

APD-8-2G18G-SFF-30W Active
8 Way Power Divider
Buy Now
PMI Model APD-8-2G18G-SFF-30W is an 8 Way Power Divider operating over the 2 to 18 GHz frequency range with a low insertion loss of 2.6 dB maximum with an isolation of 16 dB minimum. Package size is 3.528" x 4.23" x 3.94" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 8 Way |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 2.6 dB Max (Above 9.03 dB Split) |
| VSWR (In/Out): | 1.70:1 / 1.6:1 Max |
| Amplitude Balance: | ±0.6 dB Max |
| Phase Balance: | ±8° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 3.528" x 4.23" x 3.94" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Operating Humidity: | Up to 95% (Non-Condensing) |
