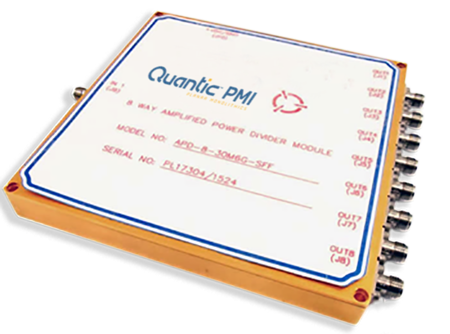

APD-8-30M6G-SFF

PMI MODEL APD-8-30M6G-SFF is a 30 MHz to 6.0 GHz amplified 8 way power divider module. This module provides a nominal insertion loss of 6 dB with a typical flatness of ±1 dB over the operating frequency range. Over 36 dB of reverse isolation is provided with a typical noise figure of 6.5 dB and an input 1 dB compression of -2.5 dBm. Input and Output VSWR is less than 2.0:1 into 50 OHM impedance. The DC supply required is +12 to +15 volts and current draw is typically 48 mA. Field removable SMA female connectors are utilized in a housing measuring 4.5” x 4.3” x 0.5”

Product Specifications

General Parameters:
Status: Active
Type: 8-Way
Frequency Min: 0.03 GHz
Frequency Max: 6 GHz
Isolation: 32 dB Min
Isolation (Measured): 32 dB Min. - Measured 41 dB, 36 dB Nominal
Insertion Loss: 4 dB Min
Insertion Loss (Measured): 4 dB Min.- Measured 6.5 dB, 6 dB Nominal, 8 dB Max.
Frequency Range: 0.03 to 6.0 GHz
Noise Figure: 6.5 dB Typ. - Measured 7.5 dB
VSWR (In/Out): 2.0:1 Max. - Measured 1.88:1 (Input) 1.49:1 (Output)
Output Power P1dB: +10 dBm Max.*
Input Power P1dB: -2.5 dBm Typ. - Measured >-2.5 dBm
Power Supply: +12 to +15 VDC @ 100 mA Nominal- Measured 48 mA
Connectors: SMA (F)
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
