APD-8-800M2D5G-SFF-30W *

8-Way Power Divider

Buy Now

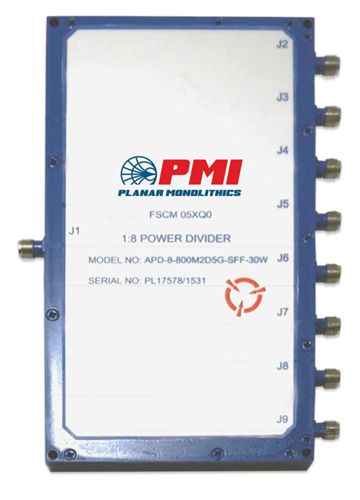

PMI Model No. APD-8-800M2D5G-SFF-30W is an eight-way power divider featuring high isolation of 20 dB minimum, low insertion loss of ≤1.2 dB, 1.3:1 VSWR measured, designed for 0.8 to 2.5 GHz broadband use and high reliability.  Unit size is 3.39" x 5.91" x 0.55" and contains SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8-Way
Frequency Min: 0.8 GHz
Frequency Max: 2.5 GHz
Isolation: 20 dB Min
Isolation (Measured): 20 dB Min - Measured 20.24 dB
Insertion Loss: <=1.2 dB
Insertion Loss (Measured): <=1.2 dB - Measured 0.74 dB
Frequency Range: 0.8 to 2.5 GHz
VSWR (In/Out): 1.40:1 - Measured 1.3:1
Amplitude Balance: ±0.5 dB - Measured ±0.07 dB
Phase Balance: ±5° - Measured ±3.40°
Power Handling: Forward <=30 Watts, Reversed <=1 Watt
Impedance: 50 Ohm
Connectors: SMA (F)
Finish: Painted Blue
Size: 3.39" x 5.91" x 0.55"
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
SourceIn StockPurchase
