BPM-2G18G-180-SFF-MB

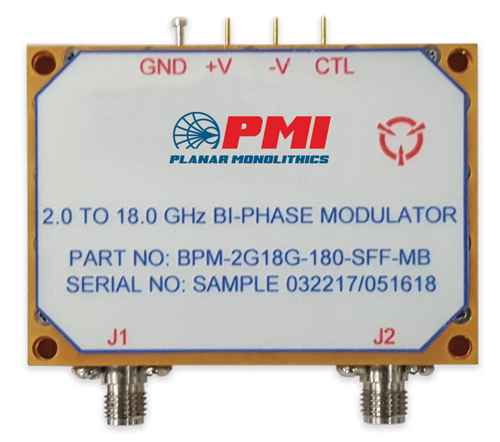

PMI Model No. BPM-2G18G-180-SFF-MB is a Bi-Phase Modulator operating over the 2.0 to 18.0 GHz frequency range. This model offers insertion loss of 2.2 dB maximum while maintaining a minimum isolation of 20 dB. This compact housing measures 2.25" x 1.25" x 0.65" and is outfitted with field removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 2.0 GHz
Frequency Max: 18.0 GHz
VSWR: 1.50:1 max.
Impedance: 50 Ohms
Differential Phase Shift: TBD
Speed: 50 ns max.
Isolation: 20 dB min.
RF Connectors: Field Removable SMA (F)
Differential Insertion Loss: TBD
Phase Shift Control Input: TTL "0" = 0º
TTL "1" = 180º
Power Supply: +5 VDC @ 70 mA max.
-12 VDC @ 30 mA max.
Size: 2.25" x 1.25" x 0.65"
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -55ºC to +85ºC
Temperature (Storage): -65ºC to +125ºC
Humidity: Up to 90%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
