DD-20-218-5PF-1-N-FM-OPT0518

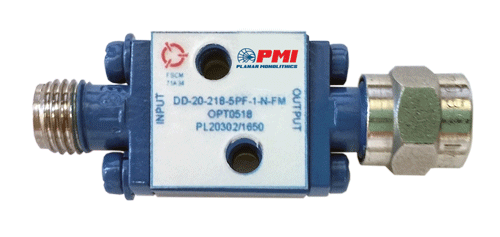

PMI Model Number DD-20-218-5PF-1-N-FM-OPT0518 is a 0.5 to 18.0 GHz, high speed, high sensitivity, diode detector requiring no bias and offering excellent temperature stability with a response time of less than 5 nanoseconds.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.5 to 18.0 GHz
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
VSWR In/Out: 3.5:1 max
VSWR In/Out (Measured): 3.5:1 max (measured @ -23 dBm)
Frequency Flatness: ±1.5 dB Max., ±1.0 dB Typ. - Measured ±0.895 dB
Voltage Sensitivity: 650 mv/mW, 700 mV/mW Typ - Measured 1540 mV/mW
Tangential Sensitivity: -50 dBm @ 2 MHz Video Bandwidth - Measured -50 dBm
Video Capacitance: 5.6 pF
Output Voltage: Negative is Standard (Positive is Available)
Max Input Power: +17 dBm
Connectors In/Out: SMA (F/M)
Finish: Painted Blue
Size: 0.5" x 0.5" 0.22"
Speed: 5 ns - Measured 4.632 ns
Environmental Ratings:
Operating Temperature: -54ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
