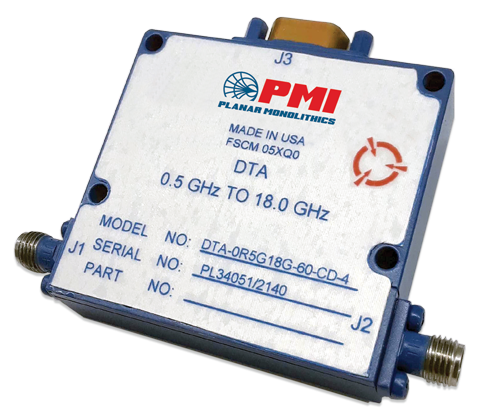

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.5 to 18.0 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss: | 4.8 dB Max |
|---|
| Attenuation Range: | 60 dB |
|---|
| Digital Control: | 10 Bit |
|---|
| Minimum Attenuation Step: | 0.06 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 15 dBm Typ |
|---|
| Survival Power: | 1 W Average from -65 ºC to +25 ºC |
|---|
| Attenuation Flatness: | ±1.0 dB Typ @ 20 dB,
±1.5 dB Typ @ 40 dB,
±3.05 dB Typ @ 60 dB |
|---|
| Attenuation Accuracy: | ±1.0 dB Typ @ 0 to 20 dB,
±1.5 dB Typ @ 20 to 40 dB,
±2.0 dB Typ @ 40 to 60 dB |
|---|
| Swiching Time (On Time): | 1.0 µs Max |
|---|
| Swiching Time (Off Time): | 0.5 µs Max |
|---|
| Power Supply: | +12 to +15 V @ 150 mA Max |
|---|
| Weight: | 3.0 oz (85 gm) approximate |
|---|
| Finish: | Painted Blue |
|---|
| Logic Input: | -0.3 to +0.8 V (Logic "0" (Bit Off),
+2.0 to +5.0 V (Logic "1" (Bit On) |
|---|
| Connectors: | RF: SMA female
Control: 15 Pin Micro-D-Female Shipped with mating Micro-D-Male |
|---|
| Mean Attenuation Range: | 60 dB |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
