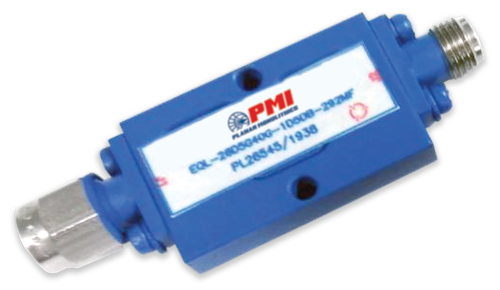

EQL-26D5G40G-1D5DB-292MF Active
Passive Amplitude Equalizer
Buy Now
Additional Documents
- Product Feature
- Test Report - 9/19/2019
- PL19642 - Unit Data
- PL26545 - Unit Data
- PL26573 - Unit Data
- PL26574 - Unit Data
- PL26575 - Unit Data
- PL26576 - Unit Data
- PL26577 - Unit Data
- PL26578 - Unit Data
- PL26685 - Unit Data
- PL27642 - Unit Data
- PL27643 - Unit Data
- PL27644 - Unit Data
- PL27645 - Unit Data
- PL27646 - Unit Data
- PL27705 - Unit Data
- PL30417 - Unit Data
- PL30418 - Unit Data
- PL30419 - Unit Data
- PL30420 - Unit Data
- PL30421 - Unit Data
- PL32753 - Unit Data
- PL34093 - Unit Data
- PL34634 - Unit Data
- PL37229 - Unit Data
- PL37230 - Unit Data
- PL39056 - Unit Data
- PL39057 - Unit Data
- PL42159 - Unit Data
- PL42160 - Unit Data
- PL42161 - Unit Data
- PL42162 - Unit Data
- PL47133 - Unit Data
- PL47134 - Unit Data
- PL47135 - Unit Data
- PL50849 - Unit Data
- PL50850 - Unit Data
- PL51362 - Unit Data
- PL51363 - Unit Data
- PL51364 - Unit Data
- PL51365 - Unit Data
PMI Model EQL-26D5G40G-1D5DB-292MF is a 26.5 to 40 GHz, Passive Amplitude Equalizer with a negative slope. This Equalizer has a maximum input power of 0.5 W, a maximum VSWR of 2.0:1, a maximum insertion loss of 1.5 dB at 26.5 GHz, and an amplitude accuracy of ±0.5 dB, has 2.92mm male / female connectors, and the housing size is 1.1" x 0.67" x 0.22".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 26.5 to 40 |
| Frequency Min (GHz): | 26.5 |
| Frequency Max (GHz): | 40 |
| Input Power Max: | 0.5 W CW |
| VSWR: | 2.0:1 Max |
| Insertion Loss (dB): | 1.5 dB Max (@ 26.5 GHz |
| Slope (Frequency/Amplitude): | -0.41 ± 0.06 dB / GHz |
| Amplitude Accuracy: | ±0.5 dB (Compared to best fit straight line) |
| Connectors In / Out: | 2.92mm Male / Female |
| Size: | 1.10" x 0.67" x 0.22" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
