HP-2G-1780-SMA-FM Active
Suspended High Pass Filter
Buy Now

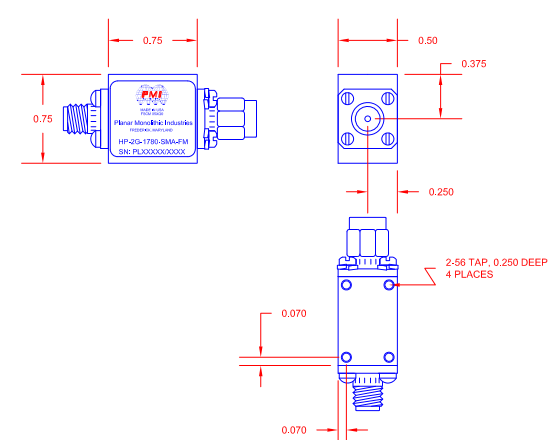

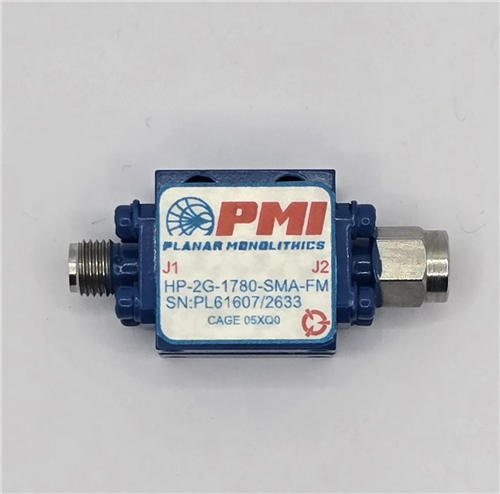

PMI Model HP-2G-1780-SMA-FM is a Suspended High Pass Filter having a passband of 2 to 18 GHz with a Cut-Off Frequency of 2 GHz and a maximum passband insertion loss of 1 dB. This model provides 80 dB minimum rejection. Package size is 0.75" x 0.75" x 0.50" and contains SMA female / male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 2 to 18 |
| Cut-Off Frequency (GHz): | 2 |
| 3 dB Bandwidth: | 1.78 |
| Passband Insertion Loss (dB): | 0.5 dB Typ, 1 dB Max |
| Passband VSWR: | 1.5:1 Typ, 2.0:1 Max |
| Rejection: | 80 dB Min |
| Connectors: | SMA Female / Male |
| Size: | 0.75" x 0.75" x 0.50" |
| Weight: | 1 oz |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 |
