LM-10M35G-15DBM-4W-292FF Active
High Power Limiter
Buy Now
Additional Documents

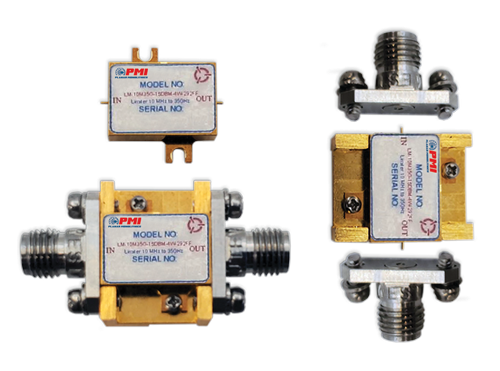

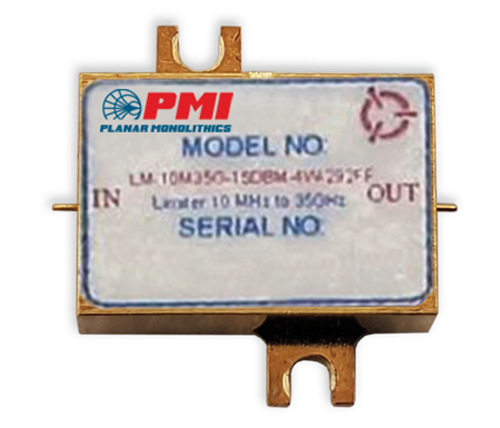

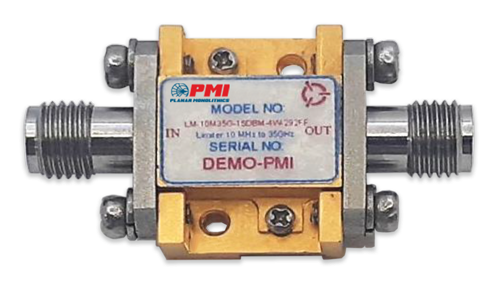

PMI Model LM-10M35G-15DBM-4W-292FF is a passive high-power limiter that operates in the frequency range of 0.01 to 35 GHz that can handle an input power of 25 W CW (0.02 to 18 GHz) and 50 to 40 W pulse peak power (0.02 to 18 GHz), with 1 µs PW, 1% duty cycle. Package size is 0.53” x 0.7” x 0.26” uses 2.92mm female removeable connectors. Dual Use Connectorized or Surface Mount.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 35 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 35 |
| Insertion Loss (dB): | 1.3 to 4 dB |
| Input/Output VSWR: | 2.0:1 |
| Power Handling: | 25 W CW Max (0.02 GHz), 10 W CW Max (1 GHz), 8 W CW Max (2 GHz), 5 W CW Max (4 GHz), 4 W CW Max (8 to 18 GHz) |
| Input Power: | 25 to 4 W CW |
| RF Leakage (dBm): | 18 dBm Typ (0.02 to 4 GHz), 16 dBm Typ (4 to 8 GHz), 12 dBm Typ (8 to 12 GHz), 10 dBm Typ (12 to 18 GHz), 10 dBm Typ (20 to 28 GHz), 10 dBm Typ (28 to 35 GHz) |
| Recovery Time: | 150 ns Typ |
| P1dB Limiting Threshold (dBm): | 8 dBm Min |
| Peak Input Power: | 50 W Peak Max (0.02 to 12 GHz), 40 W Peak Max (18 GHz), 1 µs PW, 1% Duty Cycle |
| VSWR @ -10 dBm Input Power: | 2.0:1 Max |
| Connectors In/Out: | 2.92mm Female - removable |
| Size: | 0.53” x 0.7” x 0.26” |
| Insertion Loss @ -10 dBm Input Power: | 1.3 dB Max (0.01 to 8 GHz), 2.30 dB Max (8 to 18 GHz), 2.6 dB Max (18 to 25 GHz), 4 dB Max (25 to 35 GHz) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107A COND. A |
