LM-10M40G-15DBM-4W-AGAL Active
Broadband High Power Limiter
Buy Now

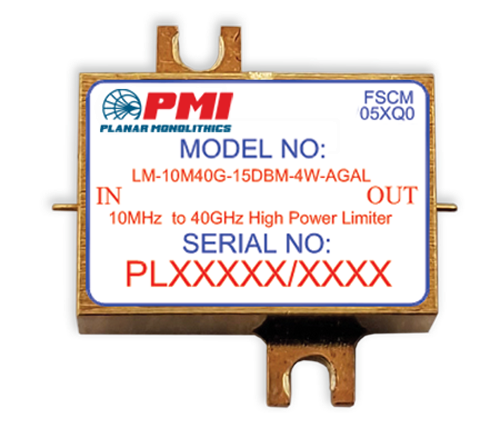

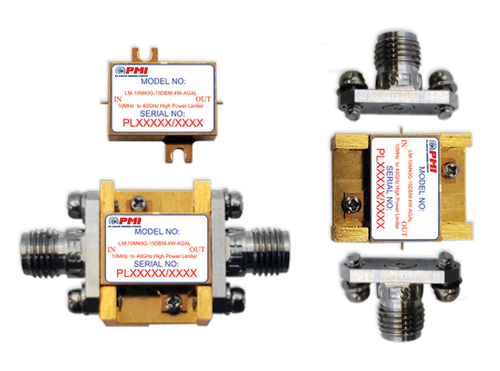

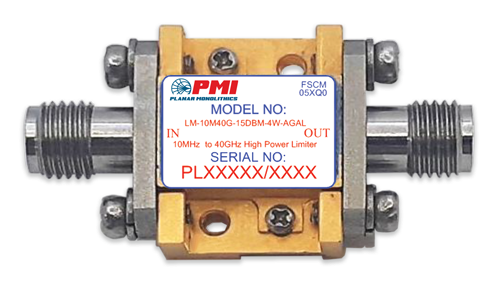

PMI Model LM-10M40G-15DBM-4W-AGAL is a High Power Limiter with a frequency range of 0.01 to 40 GHz. This unit has an insertion loss of 2.21 dB, a VSWR of 1.74:1, a flat leakage power of 15 dBm, a P1dB of 7 dBm, a recovery time of 100 ns, and a power handling of 5 W. The housing size is 0.53" x 0.70" x 0.26" with 2.92mm female connectors. 2-IN-1 - Dual Use Connectorized or Surface Mount.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 40 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 1 to 3.2 dB |
| Input/Output VSWR: | 2.0:1 |
| Power Handling: | 5 W CW Max |
| Input Power: | 4 to 25 W |
| RF Leakage (dBm): | 0.02 to 1 GHz: +22 Max 1 to 4 GHz: +20 Max 4 to 8 GHz: +18 Max 8 to 12 GHz: +15 Max 12 to 18 GHz: +13 dBm Max 20 to 28 GHz: +13 Max 28 to 32 GHz: +12 Max 32 to 40 GHz: +12 Max |
| Recovery Time: | 100 ns Max |
| P1dB Limiting Threshold (dBm): | 7 dBm Min |
| Peak Input Power: | 25 W Peak Max (0.02 to 12 GHz) 20 W Peak Max (18 GHz) (1 µs Pw, 1% Duty Cycle) |
| VSWR @ -10 dBm Input Power: | 2.0:1 Max |
| Connectors In/Out: | 2.92mm Female - Removable |
| Size: | 0.53” x 0.7” x 0.26” |
| Finish: | Gold Plated |
| Insertion Loss @ -10 dBm Input Power: | 0.01 to 8 GHz: 1.00 dB Max 8 to 18 GHz: 1.50 dB Max 18 to 40 GHz: 3.20 dB Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond B |
| Shock: | MIL-STD-202, Method 213B Cond B |
| Altitude: | MIL-STD-202, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202, Method 107A Cond A |
