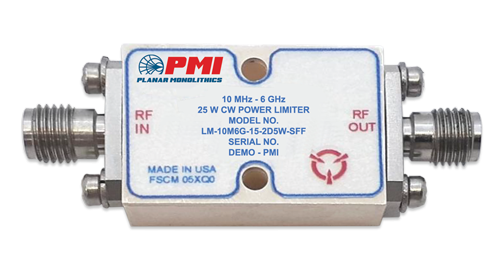

LM-10M6G-15-2D5W-SFF

High Power Limiter

Buy Now

PMI Model No. LM-10M6G-15-2D5W-SFF is a high power limiter operating in the frequency range of 10 MHz to 6.0 GHz Usable to 10.0 GHz), with 2.5 W of CW power handling (+34 dBm), and 35 W peak. This compact housing is fitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.01 to 6.0 GHz (Usable to 10.0 GHz)
Frequency Min: 0.01 GHz
Frequency Max: 6.0 GHz (Usable to 10.0 GHz)
Insertion Loss: 2 dB Max
Input/Output VSWR: 1.8:1 Max
Power Handling: 2.5 W (+34 dBm) CW Max
Peak Power 3 W (+35 dBm),
Pulse 1 µs 1% Duty Cycle
Input Power: 2.5 W (+34 dBm) CW Max
Peak Power 3 W (+35 dBm),
Pulse 1 µs 1% Duty Cycle
Flat Leakage Power: +23 dBm Typ
Recovery Time: 100 ns Max
Connectors In/Out: SMA (F)
Size: 1.00" x 0.68" x 0.35"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
