MB2C14-V130M Active
SP4T Reflective Switch

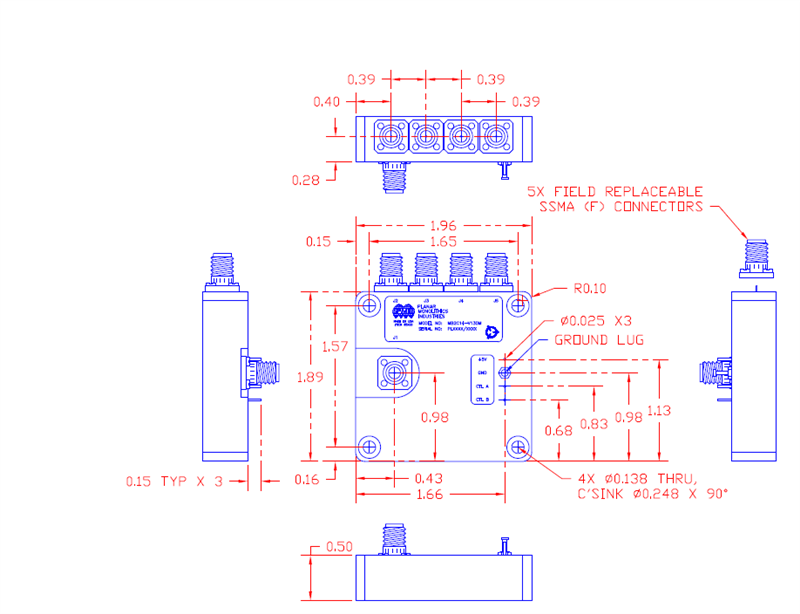

Quantic PMI Model MB2C14-V130M is a high power, single pole, four throw, reflective switch capable of handling 2 W with a frequency range of 0.02 to 0.24 GHz and has >50 dB isolation. Housing measures 1.96" x 1.89" x 0.4" with SSMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.02 to 0.24 |
| Frequency Min (GHz): | 0.02 |
| Frequency Max (GHz): | 0.24 |
| Insertion Loss (dB): | 0.6 dB Typ, 0.9 dB Max |
| Isolation (dB): | 50 dB Min |
| Switching Speed: | 500 µs Max |
| VSWR In/Out: | 2:1 Max |
| Input Power: | 2 W CW Max @ 25 °C |
| Power Supply: | +5 VDC @ 120 mA |
| Control Signal: | 2 Line TTL Decoded |
| Power & Control Connector: | Solder Pins |
| Connectors: | SSMA Female |
| Weight: | <2.1 oz. |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
