P4T-500M18G-70-R-SFF-SP
Preliminary | Preliminary | 0.5 TO 18 GHz | 0.5 GHz | 18 GHz | Reflective | 70 dB MIN | 3.5 dB MAX | - |

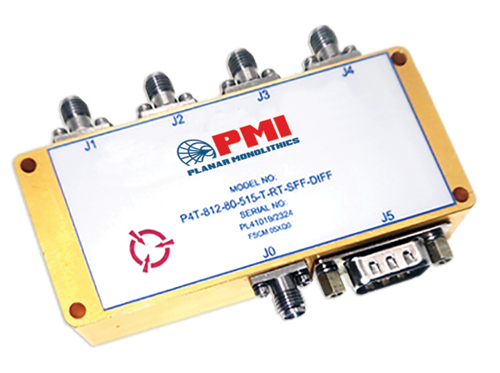

P4T-812-80-515-T-RT-SFF-DIFF
Active | Active | 8.0 to 12.0 GHz, 10.27 ± 1 GHz Optimixed | 8.0 GHz | 12.0 GHz | Absorptive | 80 dB Min (10.27 ± 1 GHz),
70 dB Min (8 - 12 GHz) | 2.5 dB Max (10.27 ± 1 GHz),
3.0 dB Max (8 - 12 GHz) | 50 ns Max, Measure from 50% Strobe |
P4T-0R5G18G-1W-70-R-SFF
Preliminary | Preliminary | 0.5 GHz TO 18.0 GHz | 0.5 GHz | 18.0 GHz | Reflective | 70dB Min | 3.0dB Max | 100ns Max |
PMSN-4DT-561R875-NG-H02
Active | Active | 0.7 TO 1.3 GHz | 0.7 GHz | 1.3 GHz | Absorptive | 65 dB MIN FROM UNSELECTED INPUT TO OUTPUT
35 dB MIN FROM OUTPUT TO SELECTED INPUT
70 dB MIN FROM ISOLATION INPUT TO INPUT
-60 dBm MAX SPECTRAL ENERGY LEAKAGE
FROM 700 TO 1300 MHz | 0.5 dB or -1 dB Max FROM ROOM TEMPERATURE (OVER OPERATING TEMPERATURE) | 25 ns MAX FROM 50% TTL TO 90% RF OUTPUT |
P4T-100M53G-100-T-RD-185MM
Active | Active | 0.1 to 53.0 GHz | 0.1 GHz | 53 GHz | Absorptive | 80 dB (0.1 to 1 GHz) Min
90 dB (1 to 18 GHz) Min
75 dB (18 to 40 GHz) Min
70 dB (40 to 53 GHz) Min | 5.0 dB (0.1 to 18 GHz) Max
8.0 dB (18 to 40 GHz) Max
14.0 dB (40 to 53 GHz) Max | 50 ns Max |
P4T-50M1G-60-R-1W-SFF
Preliminary | Preliminary | 0.05 to 1 GHz | 0.05 GHz | 1 GHz | Reflective | 60 dB Min | 1 dB Max | (10% RF to 90% RF) 50ns Max
(90% RF to 10% RF) 50ns Max
(50% TTL to 90% RF) 200ns Max
50% TTL to 10% RF) 150ns Max |
P4T-0R5G8G-60-55-T-SFF
Preliminary | Preliminary | 0.5 to 8.0 GHz | 0.5 GHz | 8.0 GHz | Absorptive | 60 dB Min, 75 dB Typ | 1.9 dB Max, 2.5 dB Max | 100 ns Max |
P4T-218-60-R-2W-SFF
Active | Active | 2.0 to 18.0 GHz | 2.0 GHz | 18.0 GHz | Reflective | 60 dB Min | 3.2 dB Max | 100 ns Max |
P4T-100M40G-90-T-512-292FF-OPT20
Preliminary | Preliminary | 0.1 to 20 GHz | 0.1 GHz | 20 GHz | Absorptive | 100 dB | 5 dBm Max | 100 ns Max |
P4T-4060-80-T-RD
Preliminary | Preliminary | 40 to 60 GHz | 40 GHz | 60 GHz | Absorptive | 80 dB Typ | 11.0 dB Typ | 50 ns Max |
P4T-16-80-T-55-SFF
Active | Active | 1 .0 GHz to 6.0 GHz | 1.0 GHz | 6.0 GHz | Absorptive | 80 dB Min | 1 .5dB Goal / 2.0dB Max | 200 ns Max |
P4T-100M52G-100-R-RD
Active | Active | 0.1 to 52 GHz | 0.1 GHz | 52 GHz | Reflective | 80 dB (100 MHz to 1 GHz) Min
70 dB (18 to 40 GHz) Min
70 dB (40 to 50 GHz) Min
70 dB (50 to 52 GHz) Typ | 5.0 dB (100 MHz to 18 GHz) Max
7.0 dB (18 to 40 GHz) Max
10.0 dB (40 to 50 GHz) Max
14.0 dB (50 to 52 GHz) Typ | 50 ns Max |
P4T-100M53G-100-T-RD
Active | Active | 0.1 to 53 GHz | 0.1 GHz | 53 GHz | Absorptive | 100 dB (100 MHz to 1 GHz) Min
90 dB (1 to 18 GHz) Min
70 dB (18 to 40 GHz) Min
70 dB (40 to 50 GHz) Min
70 dB (50 to 53 GHz) Min | 5.0 dB (100 MHz to 18 GHz) Max
7.0 dB (18 to 40 GHz) Max
10.0 dB (40 to 50 GHz) Max
15.0 dB (50 to 53 GHz) Typ | 50 ns Max |
P4T-0R1G20G-100-T-SFF-ROHS
Active | Active | 0.1 to 20.0 GHz | 0.1 GHz | 20.0 GHz | Absorptive | 110 dB Min | 5 dB Max | 300 ns (10% to 90% RF) |
P4T-500M18G-80-T-SFF-IND-3
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 80 dB Min | 3.75 dB Max | 50% TTL to 10%/90% RF
25 ns Typ |
P4T-500M18G-80-T-SFF-IND-2
Preliminary | Preliminary | 0.5 to 18 GHz | 0.5 GHz | 18.0 GHz | Absorptive | 70 dB Min | 3.75 dB Max | 50% TTL to 10%/90% RF
25 ns Typ |
MB2C14-V130M
Active | Active | 0.02 to 0.24 GHz | 0.02 GHz | 0.24 GHz | Reflective | 50 dB min. | 0.6 dB typ., 0.9 dB max. | 500 us max. |
P4T-500M4G-70-T-515-SFF-23DBM-IND-MVG
Preliminary | Preliminary | 0.5 to 4.0 GHz | 0.5 GHz | 4.0 GHz | Absorptive | 70 dB min. | 2.0 dB max. | 100 ns max. |
P4T-2G18G-70-T-SFF-NSI
Preliminary | Preliminary | 2.0 to 18.0 GHz | 2.0 GHz | 18.0 GHz | Absorptive | 70 dB min. | 2.5 dB max. (2.0 to 6.0 GHz)
3.0 dB max. (6.0 to 12.0 GHz)
4.0 dB max. (12.0 to 18.0 GHz) | 100 ns max. |
P4T-0D418-75-T-SFF
Preliminary | Preliminary | 0.4 to 18.0 GHz | 0.4 GHz | 18.0 GHz | Absorptive | 75 dB min. | 2.5 dB @ 0.4 to 10.0 GHz max.
3.5 dB @ 10.0 to 18.0 GHz max. | Rise/Fall Time: 50 ns max.
On/Off Time: 100 ns max. |
P4T-30M6-70-T-SFF
Preliminary | Preliminary | 0.03 to 6.0 GHz | 0.03 GHz | 6.0 GHz | Absorptive | 70 dB min. | 2.8 dB max. | Rise/Fall Time: 80 ns max.
On/Off Time: 200 ns max. |
P4T-100M50G-100-R-RD-292-OPT40
Active | Active | 0.1 to 40.0 GHz | 0.1 GHz | 40 GHz | Reflective | 70 dB (0.1 to 1.0 GHz) typ.
100 dB (1.0 to 18.0 GHz) typ.100 dB (18.0 to 40.0 GHz) typ. | 3.5 dB (0.1 to 18.0 GHz) max.
6.0 dB (18.0 to 40.0 GHz) max. | 50 ns max. |
P4T-100M50G-100-T-RD-292-OPT40
Active | Active | 0.1 to 40.0 GHz | 0.1 GHz | 40 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) Typ
100 dB (1.0 to 18.0 GHz) Typ
100 dB (18.0 to 40.0 GHz) Typ | 4.0 dB (0.1 to 18.0 GHz) Max
7.0 dB (18.0 to 40.0 GHz) Max | 50 ns Max |
P4T-30M6G-60-515-T-SFF
Preliminary | Preliminary | 0.03 to 6.0 GHz | 0.03 GHz | 6 GHz | Absorptive | 60 dB min. | 4 dB max. | 250 ns max. |
PMSN-4DT-561R875-NG
Active | Active | 0.7 to 1.3 GHz | 0.7 GHz | 1.3 GHz | Absorptive | 65 dB Min from Unselected Input to Output
35 dB min. from Output to Selected Input
70 dB min. from Isolation Input to Input
-60 dBm Max Spectral Energy Leakage
from 0.7 to 1.3 GHz | - | 25 ns Max from 50% TTL to 90% RF Output |
P4T-0R1G20G-60-T-SFF
Preliminary | Preliminary | 0.1 to 20.0 GHz | 0.1 GHz | 20 GHz | Absorptive | 60dB min | 5.0dB max | 50 ns typ., 75 ns max, (50% TTL to 10%/90% RF) |
P4T-0R4G10G-40-R-SFF
Preliminary | Preliminary | 0.4 to 10.0 GHz | 0.4 GHz | 10 GHz | Reflective | 0.4 to 4.0 GHz: 40 dB, 4.0 to 10.0 GHz: 28 dB | 2.0 dB Typ, 3.0 dB Max | 50 ns Max |
P4T-0R4G10G-40-T-SFF
Preliminary | Preliminary | 0.4 to 10.0 GHz | 0.4 GHz | 10 GHz | Absorptive | 0.4 to 4.0 GHz: 40 dB, 4.0 to 10.0 GHz: 28 dB | 2.0 dB Typ, 3.0 dB Max | 50 ns Max |
P4T-0R5G18G-60-R-SFF
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Reflective | 60dB min. | 3.0dB max. | 100 nsec max. |
P4T-0R5G18G-70-R-SFF
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Reflective | 70 dB min. | 3.0 dB max. | 100 ns max. |
P4T-100M40G-90-T-512-292FF-IND
Active | Active | 0.1 to 40.0 GHz | 0.1 GHz | 40 GHz | Absorptive | 100dB typ, 95dB min (0.1 to 18.0GHz) Measured 103dB, 95dB typ, 80dB min (18.0 to 26.5GHz) Measured 80.5dB, 77dB typ, 70dB min (26.5 to 40.0GHz) Measured 84.6dB | 5.25dB typ, 6dB max (01. to 18.0GHz), 6.25dB typ, 8dB max (18.0 to 26.5GHz), 7.25dB typ, 10dB max (26.5 to 40.0GHz) | 100ns max – Measured 20ns |
P4T-100M6G-80-T-SFF-JW
Preliminary | Preliminary | 0.1 to 6.0 GHz | 0.1 GHz | 6 GHz | Absorptive | 80 dB typ., 70 dB max. | 3.5 dB typ., 3.75 dB max. | 150 ns typ., 200 ns max. |
P4T-10G40G-60-T-292FF-OPT30G40G
Preliminary | Preliminary | 30.0 to 40.0 GHz | 30 GHz | 40 GHz | Absorptive | 60dB min | 6dB max | 10% to 90% <100nSec |
P4T-150M1G-50-T-SFF-5W
Preliminary | Preliminary | 0.15 to 1.0 GHz | 0.15 GHz | 1 GHz | Absorptive | 50 dB min. | 1.0 dB max., 0.75 dB typ. | 1 us max. |
P4T-17G40G-60-T-55-292FF-OPT42
Preliminary | Preliminary | 17.0 to 42.0 GHz | 17 GHz | 42 GHz | Absorptive | 60 dB min. | 6.0 dB max. | 10% To 90% 100 ns max. |
P4T-18G40G-110-T-512-292FF-IND
Preliminary | Preliminary | 18.0 to 40.0 GHz | 18 GHz | 40 GHz | Absorptive | 110dB typ, 100dB min (0.3 to 18.0GHz), 100dB typ, 90dB min (18.0 to 26.5GHz), 90dB typ, 80dB min (0.1 to 0.3 & 26.5 to 40.0GHz) | 5.25dB typ, 6dB max (01. to 18.0GHz), 6.25dB typ, 8dB max (0.1 to 0.3 & 18.0 to 26.5GHz), 7.25dB typ, 10dB max (26.5 to 40.0GHz) | 100ns max |
P4T-2G6G-60-R-SFF-SL-IND
Preliminary | Preliminary | 2.0 to 6.0 GHz | 2 GHz | 6 GHz | Reflective | 60dB min | 1.8dB typ | 25ns max |
P4T-2G6G-70-T-SFF
Preliminary | Preliminary | 2.0 to 6.0 GHz | 2 GHz | 6 GHz | Absorptive | 70dB min | 2.5dB typ | 50ns typ |
P4T-34G36G-60-T-5-292FF
Preliminary | Preliminary | 34.0 to 36.0 GHz | 34 GHz | 36 GHz | Absorptive | 60 dB min. | 6 dB max. | 10% to 90% <100 ns |
P4T-4D4G5G-25-R-512-SFF-IND-20W
Preliminary | Preliminary | 4.4 to 5.0 GHz | 4.4 GHz | 5 GHz | Reflective | 25dB min | 0.5dB typ, 0.75dB max | 2us max |
P4T-4G5D5G-25-R-512-SFF-IND-20W
Preliminary | Preliminary | 4.0 to 5.5 GHz | 4 GHz | 5.5 GHz | Reflective | 25dB min | 1.0dB goal, 1.25dB typ | 2us max |
P4T-500M18G-60-T-515-SFF-2W-IND
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 60dB min | 4.5dB typ., 6dB max | 200nsec max |
P4T-500M18G-80-T-SFF-DEC
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 80dB typ | 3.75dB max | 50% TTL to 10%/90% RF, 25ns typ |
P4T-500M18G-80-T-SFF-IND
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 80 dB typ | 3.75dB max | 50% TTL to 10%/90% RF, 25 ns typ |
P4T-500M2G-50-R-SFF-IND
Preliminary | Preliminary | 0.5 to 2.0 GHz | 0.5 GHz | 2 GHz | Reflective | 50dB min | 2.5dB max, within 0.5dB amplitude tracking for all output ports | 2us max |
P4T-500M6G-80-T-SFF
Preliminary | Preliminary | 0.5 to 6.0 GHz | 0.5 GHz | 6 GHz | Absorptive | 80dB min | 3dB max | 50% TTL to 10%/90% RF 25ns typ |
P4T-50M40G-55-T-515-292FF
Preliminary | Preliminary | 0.05 to 40.0 GHz | 0.05 GHz | 40 GHz | Absorptive | 55dB min | 8dB max | 50% TTL to 10%/90% RF, 85ns typ, 100ns max |
P4T-50M40G-55-T-515-292FF-OPT27G
Active | Active | 0.05 to 27.0 GHz | 0.05 GHz | 27 GHz | Absorptive | 55 dB min - Measured 59 dB | 8 dB max - Measured 4.6 dB | 50% TTL to 10%/90% RF, 85 ns typ, 100 ns max Measured 47 ns |
P4T-60M20G-100-T-SFF
Active | Active | 0.06 to 20.0 GHz | 0.06 GHz | 20 GHz | Absorptive | 100dB min., 110dB typ. | 5.5dB max. | 300 nsec max., 50nsec typical (10%-90% RF) |
P4T-6G12G-70-T-SFF
Preliminary | Preliminary | 6.0 to 12.0 GHz | 6 GHz | 12 GHz | Absorptive | 70dB min | 3.0dB typ | 50ns typ |
P4T-8G12G-60-55-SFF-HERM
Preliminary | Preliminary | 8.0 to 12.0 GHz | 8 GHz | 12 GHz | Absorptive | 60 dB min - Measured 83 dB | 2.2 dB typ - Measured 2.2 dB | 50 ns max - Measured 29 ns 50% TTL to 10% / 90% RF |
PMSN-4DT-05-STD-OPT80M1G-TB1284
Preliminary | Preliminary | 0.08 to 1.0 GHz | 0.08 GHz | 1 GHz | Absorptive | 60dB min. | 1.2dB max | Rise: 15ns max, Fall: 15ns max, Delay On: 100ns max, Delay Off: 100ns max |
P4T-0R5G18G-50-T-SFF
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 60 dB min (0.5 to 10.0 GHz), 50 dB min (10.0 to 18.0 GHz) | 3.0 dB max. | 100 ns max |
P4T-0R5G18G-55-T-SFF-PN-OPT900M1500M
Preliminary | Preliminary | 0.9 to 1.5 GHz | 0.9 GHz | 1.5 GHz | Absorptive | 60 dB min. | 1.0 dB max. | 100 ns max. |
P4T-100M20G-100-T-RD
Preliminary | Preliminary | 0.1 to 20.0 GHz | 0.1 GHz | 20 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) Typ, 100 dB (1 to 20.0 GHz) Typ | 5.0 dB Typ | 50 ns Max |
P4T-100M2G-50-T-SFF-IN
Active | Active | 0.1 to 2.0 GHz | 0.1 GHz | 2 GHz | Absorptive | 50dB min. | 3.0dB max. | Rise/Fall: 10nsec max, On/Off: 25nsec max. |
P4T-100M40G-90-T-512-292FF
Active | Active | 0.1 to 40.0 GHz | 0.1 GHz | 40 GHz | Absorptive | >100dB typ. (0.1 to 18GHz), >95dB typ. (18 to 26.5GHz), >77dB typ. (26.5 to 40GHz) | 6dB typ. (0.1 to 18GHz) - Measured 3.85dB, 8dB typ. (18 to 26.5GHz) - Measured 5.15dB, 10dB typ. (26.5 to 40GHz) - Measured 5.58dB | 100nsec max. Measured 25nsec "On" Measured 75nsec "Off" |
P4T-10G40G-60-T-GPO
Active | Active | 10.0 to 40.0 GHz | 10 GHz | 40 GHz | Absorptive | 60 dB min. - Measured 60.1 dB | 6.0 dB max. - Measured 5.13 dB | 30nsec typ. |
P4T-12G18G-60-T-5-5-SFF
Active | Active | 12.0 to 18.0GHz | 12 GHz | 18 GHz | Absorptive | 60dB min. | 3.0dB typical | 50nsec max. |

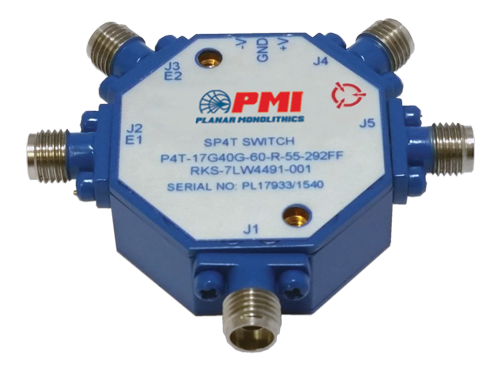

P4T-17G40G-60-R-55-292FF
Active | Active | 17.0 to 40.0 GHz | 17 GHz | 40 GHz | Reflective | 60 dB Min - Measured 66.83 dB | 4.5 dB Max - Measured 4.38 dB | 100 ns Max (50% TTL to 90% RF), 100 ns Max (10% RF to 90% RF), Measured Rise 12.0 ns, Fall 19.5 ns |
P4T-17G40G-60-T-55-292FF
Active | Active | 17.0 to 40.0 GHz | 17 GHz | 40 GHz | Absorptive | 60 dB min. - Measured 66 dB | 6.0 dB max. - Measured 5.1 dB | 10% To 90% 100 ns max. - Measured <20 ns |
P4T-1G1R1R-45-T-SFF-4KW
Preliminary | Preliminary | 1.0 GHz to 1.1 GHz | 1 GHz | 1.1 GHz | Absorptive | 45 dB min. | 1.0 dB max. | 30 us max. (50% TTL to 10% & 90% RF) |
P4T-1G20G-60-T-SFF-2W-2-HERM
Active | Active | 1.0 to 20.0 GHz | 1 GHz | 20 GHz | Absorptive | 60 dB Min (1.0 to 18.0 GHz) - Measured 68 dB, 50 dB Typ (18.0GHz to 20.0 GHz) - Measured 58 dB | 4.5 dB Typ (1.0 to 18.0 GHz) - Measured 4.3 dBm, 6.5 dB Typ (18.0 to 20.0 GHz) - Measured 4.5 dB | 500 ns typ. |
P4T-2G18G-60-T-5-5-SFF
Active | Active | 2.0 to 18.0 GHz | 2 GHz | 18 GHz | Absorptive | 60dB min. | 3.8dB typical | 50nsec max. |
P4T-4G12G-35-R-SFF-PM
Active | Active | 4.0 to 12.0 GHz | 4 GHz | 12 GHz | Reflective | 70 dB typ., 35 dB min. - Measured 70 dB min. | 1.0 dB typ., 1.5 dB max. - Measured 1.38 dB | 20 ns typ., 30 ns max. - Measured 18 ns Off Delay, 30 ns On Delay |
P4T-500M18G-60-T-SFF-JW-OPT4G5G
Preliminary | Preliminary | 4.0 to 5.0GHz | 4 GHz | 5 GHz | Absorptive | 80dB min | 2.0dB max | Rise/Fall Time: 25 ns max., 10 ns typ.
Delay On/Off: 100 ns max., 30 ns typ. |
P4T-50M40G-55-T-292FF-LV
Preliminary | Preliminary | 0.05 to 40.0 GHz | 0.05 GHz | 40 GHz | Absorptive | 55dB typ, 40dB min | 9.5dB typ | Rise/Fall Time: 5ns typ (10% to 90% RF & 90% to 10% RF)
Delay On/Off: |
P4T-50M40G-55-T-292FF-LV-OPT27G
Preliminary | Preliminary | 0.05 to 27.0 GHz | 0.05 GHz | 27 GHz | Absorptive | 55dB typ, 40dB min | 9.5dB typ | Rise/Fall Time: 5ns typ (10% to 90% RF & 90% to 10% RF)
Delay On/Off: |
P4T-7G18G-50-R-SFF
Preliminary | Preliminary | 7.0 to 18.0 GHz | 7 GHz | 18 GHz | Reflective | 55 dB min. @ 7.0 to 8.0 GHz, 50 dB min. @ 12.4 to 18.0 GHz | 2.5 dB max. @ 7.0 to 8.0 GHz, 3.7 dB max. @ 12.4 to 18.0 GHz | On/Off Time: 80 ns max.
Rise/Fall Time: 30 ns max. |
P4T-8G12G-60-T-SFF-KW
Active | Active | 8.0 to 12.0 GHz | 8 GHz | 12 GHz | Absorptive | 50dB min - measured @ 95dB | 1.5dB goal, 2.0dB typ | Rise/Fall Time: 20 ns
Delay On/Off: 50 ns |
PMSN-4DT-05-DEC-MP-OPT600M6G
Active | Active | 0.6 to 6.0 GHz | 0.6 GHz | 6 GHz | Absorptive | 60 dB Min - Measured 91 dB | 3.5 dB Typ, 3.75 dB Max - Measured 2.1 dB | Rise/Fall Time: 10 ns typ., 15 ns max.
Delay On/Off: 75 ns typ., 100 ns max. |
PMSN-4DT-05-STD-OPT28-80ISO-TB458
Preliminary | Preliminary | 2.0 to 8.0 GHz | 2 GHz | 8 GHz | Absorptive | 80dB min | 1.6dB max | Rise/Fall Time: 15 ns max.
Delay On/Off: 100 ns max. |
SWN-1170-4DR-SP-OPT1G4G
Preliminary | Preliminary | 1.0 to 4.0 GHz | 1 GHz | 4 GHz | Reflective | 60dB min | 1.5dB typ | Rise/Fall Time: 15 ns max.
Delay On/Off: 100 ns max. |

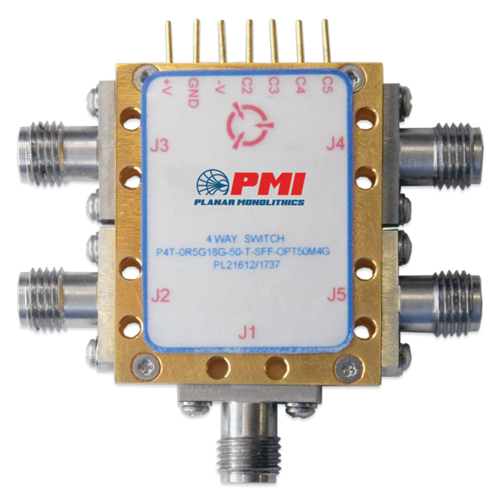

P4T-0R5G18G-50-T-SFF-OPT50M4G
Active | Active | 0.05 to 4.0 GHz | 0.05 GHz | 4 GHz | Absorptive | 50 dB Min - Measured 53.85 dB | 1.25 dB Max - Measured 1.15 dB | 25 ns Max - Measured 84 ns |
P4T-0R5G18G-60-T-SFF
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 60 dB min. | 1.9 dB max to 3.5 dB max. | 100 ns max. |
P4T-100M50G-100-T-RD-OPT24G45G
Preliminary | Preliminary | 24.0 to 45.0 GHz | 24 GHz | 45 GHz | Absorptive | 100 dB (24.0 to 40.0 GHz) Typ, 80 dB (40.0 to 45.0 GHz) Typ | 8.0 dB (24.0 to 40.0 GHz) Typ, 14.0 dB (40.0 to 45.0 GHz) Typ | 50 ns Max |
P4T-10G-20-R-SFF-15W
Preliminary | Preliminary | 10 GHz | 10 GHz | 10 GHz | Reflective | 20 dB typ. | 2.5 dB typ. | 100 ns typ. |
P4T-10M1G-60-R-SFF *
Active | Active | 0.010 to 1.0 GHz | 0.01 GHz | 1 GHz | Reflective | 60 dB Min - Measured 75 dB | 1.2 dB Typ - Measured 1.1 dB | 200 ns Max - Measured <175 ns |
P4T-12G18G-70-R-SFF
Active | Active | 12.0 to 18.0 GHz | 12 GHz | 18 GHz | Reflective | 70 dB min - Measured 77 dB | 3.0 dB max - Measured 2.8 dB | 100 ns max - Measured 46 ns |
P4T-12G18G-70-T-SFF *
Active | Active | 12.0 to 18.0 GHz | 12 GHz | 18 GHz | Absorptive | 70 dB Min - Measured 77.93 dB | 3.75 dB Max - Measured 3.34 dB | 100 ns Max - Measured 48.5 ns |
P4T-2G4G-75-T-SFF *
Active | Active | 2.0 to 4.0 GHz | 2 GHz | 4 GHz | Absorptive | 75 dB min - Measured 93.9 dB | 1.5 dB max - Measured 1.47 dB | 100 ns max - Measured 44 ns |
P4T-500M18G-60-T-SFF-JW
Active | Active | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 60 dB min. - Measured 82.6 dB | 3.75 dB max. - Measured 3.30 dB | Rise: 25ns Fall: 25 ns Delay on: 100 ns Max.
Delay Off: 100ns Max. |
P4T-8G12G-70-T-SFF-YH
Preliminary | Preliminary | 8.0 to 12.0 GHz | 8.0 GHz | 12.0 GHz | Absorptive | 70 dB min. | 2.6 dB max. | 100 ns max. |
P4T-0R518G-60-T-515-SFF-MSN
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 60 dB - Measured 78.12 dB | 3.75 dB - Measured 3.34 dB | Rise/Fall Time: 10 ns Typ, 15 ns Max
Delay On/Off: 75 ns Typ, 100 ns Max |
P4T-0R5G18G-60-T-SFF-HERM
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 65 dB MIN At maximum insertion loss state. 40 dB MIN for RF ports to control logic ports. | 3.5 dB MAX | 100 ns Max |
P4T-0R5G18G-70-T-SFF
Active | Active | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 95dB Typical, 60dB min. (0.5 to 2.0GHz), 85dB Typical, 70dB min. (2.0 to 18.0GHz) | 3.0dB Typical, 3.75dB max. | Rise/Fall Time: 10 ns typ., 15 ns max.
Delay On/Off: 75 ns typ., 100 ns max. |
P4T-1G20G-60-T-SFF-2W-2
Active | Active | 1.0 to 20.0 GHz | 1 GHz | 20 GHz | Absorptive | 60 dB min. (1.0 to 18.0 GHz) - Measured 54.88 dB min. 50 dB typ. (18.0 to 20.0 GHz) - Measured 63.74 dB max. | 4.5 dB typ. (1.0 to 18.0 GHz) - Measured 4.78 dB max. 6.5 dB typ. (18.0 to 20.0 GHz) - Measured 5.71 max. | 500 ns typ. |
P4T-1G2G-60-R-SFF *
Active | Active | 1.0 to 2.0 GHz | 1 GHz | 2 GHz | Reflective | 60 dB min - Measured 94.1 dB | 1.0 dB typ - Measured - 0.95 dB | 100 ns max - Measured 42.5 ns |
P4T-2G4G-75-R-SFF *
Active | Active | 2.0 to 4.0 GHz | 2 GHz | 4 GHz | Reflective | 75 dB min - Measured 91.4 dB | 1.1 dB typ - Measured 1.09 dB | 100 ns max - Measured 38 ns |
P4T-4G8G-70-R-SFF *
Active | Active | 4.0 to 8.0 GHz | 4 GHz | 8 GHz | Reflective | 70 dB min - Measured 88.1 dB | 1.8 dB typ - Measured 1.79 dB | 100ns max - Measured 50.5 ns |
P4T-4G8G-70-T-SFF *
Active | Active | 4.0 to 8.0 GHz | 4 GHz | 8 GHz | Absorptive | 70 dB min - Measured 80.88 dB | 2.2 dB max - Measured 1.95 dB | 100 ns max - Measured 49.6 ns |
P4T-6G18G-70-T-SFF
Preliminary | Preliminary | 6.0 to 18.0 GHz | 6 GHz | 18 GHz | Absorptive | 70 dB min. | 3.75 dB max. | 100 ns max. |
P4T-9D25G-60-R-SFF-5W
Active | Active | 9.25 GHz (+/- 0.03 GHz) | 9.22 GHz | 9.28 GHz | Reflective | 40 dB min, 60 dB Goal - Measured 52.75 dB | 1.5 dB Goal, 2.0 dB max - Measured 1.98 dB | 50 ns max, Measured 29.6 ns "On", 28.2 ns "Off" 50% TTL to 10%/90% RF |
P4T-0R5G18G-55-R-SFF-PN *
Active | Active | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Reflective | 55 dB Min - Measured 67.32 dB | 3.2 dB Max - Measured 2.6 dB | 100 ns Max - Measured 69.8 ns |
P4T-1G2G-60-T-SFF *
Active | Active | 1.0 to 2.0 GHz | 1 GHz | 2 GHz | Absorptive | 60dB min | 1.2dB max | 100ns max |
P4T-2G18G-60-T-512-SFF-LV
Active | Active | 2.0 to 18.0 GHz | 2 GHz | 18 GHz | Absorptive | 60 dB Min - Measured 69.92 dB | 3.2 dB Max - Measured 3.12 dB | 50 ns Max - Measured 30 ns 50% TTL to 10% / 90% RF |
P4T-2G6G-70-R-SFF *
Active | Active | 2.0 to 6.0 GHz | 2 GHz | 6 GHz | Reflective | 70 dB Min - Measured 91.11 dB | 2.0 dB Typ - Measured 1.41 dB | 50 ns Typ - Measured 39.2 ns |
P4T-500M18G-60-T-SFF-JW-MD15
Preliminary | Preliminary | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 60 dB min. | 3.75 dB max. | Rise/Fall Time: 25 ns max.
Delay On/Off: 100 ns max. |
P4T-0R1G20G-80-T-SFF
Active | Active | 0.1 to 20.0 GHz | 0.1 GHz | 20 GHz | Absorptive | 80 dB Min | 5.0 dB Max | 300 ns Max |
P4T-100M40G-110-T-512-292FF-IND
Active | Active | 0.1 to 40.0 GHz | 0.1 GHz | 40 GHz | Absorptive | 110 dB Typ, 100 dB Min (0.3 to 18.0 GHz) - Measured 101.31 dB,
100 dB Typ, 90 dB Min (18.0 to 26.5 GHz) - Measured 101.65 dB,
90 dB Typ, 80 dB Min (0.1 to 0.3 & 26.5 to 40.0 GHz) - Measured 92.57 dB | 5.25 dB Typ, 6 dB Max (01. to 18.0 GHz) - Measured 3.55 dB,
6.25 dB Typ, 8 dB Max (0.1 to 0.3 & 18.0 to 26.5 GHz) - Measured 4.16 dB,
7.25 dB Typ, 10 dB Max (26.5 to 40.0 GHz) Measured 6.77 dB | 100 ns Max - Measured 20 ns |
P4T-12G18G-60-5-5-SFF
Active | Active | 12.0 to 18.0 GHz | 12 GHz | 18 GHz | Absorptive | 60dB min. | 3.0dB typical | 50nsec max. |
SWN-1170-4DT-SP
Active | Active | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 70dB min | 3.75dB typ | Rise/Fall Time: 15 ns max.
Delay On/Off: 100 ns max. |
P4T-0R1G20G-100-T-SFF
Active | Active | 0.1 to 20.0 GHz | 0.1 GHz | 20 GHz | Absorptive | 110 dB Min | 5.0 dB Max | 300 ns Max |
P4T-100M50G-100-R-RD
Active | Active | 0.1 to 50.0 GHz | 0.1 GHz | 50 GHz | Reflective | 70 dB (0.1 to 1.0 GHz) Typ, 100 dB (1 to 40.0 GHz) Typ, 80 dB (40.0 to 50.0 GHz) Typ | 5.0 dB (0.1 to 18.0 GHz) Typ, 8.0 dB (18.0 to 40.0 GHz) Typ, 14.0 dB (40.0 to 50.0 GHz) Typ | 50 ns Max |
P4T-500M40G-60-R-55-292FF-SP *
Active | Active | 0.5 to 40.0 GHz | 0.5 GHz | 40 GHz | Reflective | 55 dB min. - Measured 64.7 dB | 7.5 dB max. - Measured 4.7 dB | Rise/Fall Time: 15 ns max.
Delay On/Off: 50 ns max. |
P4T-8G12G-70-R-SFF *
Active | Active | 8.0 to 12.0 GHz | 8 GHz | 12 GHz | Reflective | 70 dB Min - Measured 85.3 dB | 2.2 dB Typ - Measured 2.05 dB | 100 ns Max - Measured 34 ns |
P4T-60M20G100-T-SFF-OPT45M6G-80ISO
Active | Active | 0.045 to 6.0 GHz | 0.045 GHz | 6 GHz | Absorptive | 80 dB Min - Measured 94 dB | 2.5 dB Typ - Measured 2.2 dB | 50 ns (50% TTL to 10/90% RF) Typ -Measured 70 ns |
P4T-6G18G-27-T-SFF
Active | Active | 6.0 to 18.0 GHz | 6 GHz | 18 GHz | Absorptive | 45 dB Min @ 6.0 to 8.0 GHz - Measured 66 dB Min,
27 dB min. @ 8.0 to 18.0 GHz - Measured 52 dB Min | 2.5 dB Max @ 6.0 to 8.0 GHz - Measured 2.20 dB Max,
4.8 dB Max @ 12.4 to 18.0 GHz - Measured 4.28 dB Max | 500 ns Max (From 50% TTL to 90%/10% RF Voltage) - Measured 50 ns/25 ns |
P4T-1G18G-70-R-SFF *
Active | Active | 1.0 to 18.0 GHz | 1 GHz | 18 GHz | Reflective | 70 dB min - Measured 78.3 dB | 3.0 dB max - Measured 2.86 dB | 100 ns max - Measured 49.6 ns |
P4T-1G18G-70-T-SFF *
Active | Active | 1.0 to 18.0 GHz | 1 GHz | 18 GHz | Absorptive | 70 dB Min - Measured 71 dB | 3.75 dB Max - Measured 3.46 dB | 100 ns Max - Measured 52 ns |
P4T-6G12G-70-R-SFF *
Active | Active | 6.0 to 12.0 GHz | 6 GHz | 12 GHz | Reflective | 70 dB min - Measured 74.64 dB | 2.5 dB typ - Measured 1.97 dB | 50 ns typ - Measured 49.6 ns |
P4T-8G12G-70-T-SFF *
Active | Active | 8.0 to 12.0 GHz | 8 GHz | 12 GHz | Absorptive | 70 dB Min - Measured 75.55 dB | 2.6 dB Max - Measured 2.42 dB | 100 ns Max - Measured 49.6 ns |
P4T-0R5G18G-55-T-SFF-PN *
Active | Active | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 55 dB Min - Measured 75.71 dB | 3.8 dB Max - Measured 2.85 dB | 100 ns Max - Measured 69.8 ns |
P4T-2G18G-60-T-512-SFF-LV-SP
Active | Active | 2.0 to 18.0 GHz | 2 GHz | 18 GHz | Absorptive | 60 dB Min | 3.2 dB Max | 50 ns Max |
P4T-50M40G-55-T-292FF
Active | Active | 0.05 to 40.0 GHz | 0.05 GHz | 40 GHz | Absorptive | 55 dB Min - Measured: 74.94 dB | 8.0 dB Max - Measured: 5.61 dB | 50% TTL to 10% / 90% RF, 85 ns Typ, 100 ns Max Measured <20 ns |
P4T-2G18G-70-T-SFF
Active | Active | 2.0 to 18.0GHz | 2 GHz | 18 GHz | Absorptive | 70 dB min. | 3.5 dB max. | 100 ns max. |
P4T-10G40G-60-T-292FF
Active | Active | 10.0 to 40.0 GHz | 10 GHz | 40 GHz | Absorptive | 60 dB Min - Measured 69.58 dB | 6 dB Max - Measured 5.62 dB | 10% to 90% <100 ns - Measured 30 ns |
P4T-10M1G-60-T-SFF *
Active | Active | 0.01 to 1.0 GHz | 0.01 GHz | 1 GHz | Absorptive | 60 dB Min - Measured 86.64 dB | 1.5 dB Max - Measured 1.59 dB @ 0.01 to 0.2 GHz,
0.76 dB @ 0.2 to 1.0 GHz | 200 ns Max - Measured 166 ns |
P4T-0R3G18G-70-T-SFF
Active | Active | 0.3 to 18.0 GHz | 0.3 GHz | 18 GHz | Absorptive | 0.3 to 2 GHz: 60 dB Min - Measured 88.14 dB,
2.0 to 18.0 GHz: 70 dB Min - Measured 80.32 dB | 3.75 dB Max - Measured 2.98 dB | Rise/Fall Time: 10 ms Typ, 15 ns Max
Dealy On/Off: 75 ns Typ, 100 ns Max |
P4T-100M18G-80-T-515-SFF-4W-IND
Active | Active | 0.1 to 18.0 GHz | 0.1 GHz | 18 GHz | Absorptive | 80 dB Typ - Measured 80.30 dB | 4.5 dB Typ, 6.0 dB Max - Measured 5.43 dB | 200 ns Max - Measured 195 ns |
P4T-100M50G-100-T-RD
Active | Active | 0.1 to 50.0 GHz | 0.1 GHz | 50 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) Typ
100 dB (1 to 18.0 GHz) Typ
80 dB (40.0 to 50.0 GHz) Typ | 5.0 dB (0.1 to 18.0 GHz) Typ
8.0 dB (18.0 to 40.0 GHz) Typ
14.0 dB (40.0 to 50.0 GHz) Typ | 50 ns Max - Measured 45 ns |
P4T-500M18G-80-T-515-SFF-2W-IND
Active | Active | 0.5 to 18.0 GHz | 0.5 GHz | 18 GHz | Absorptive | 80 dB Typ | 4.5 dB Typ, 6.0 dB Max | 200 ns Max |
P4T-500M40G-60-T-55-292FF-SP
Active | Active | 0.5 to 40.0 GHz | 0.5 GHz | 40 GHz | Absorptive | 60 dB Min - Measured 73.72 dB | 8.0 dB Max - Measured 5.78 dB | 50 ns Typ |
P4T-500M40G-60-T-55-292FF-SP Rev. B *
Active | Active | 0.5 to 40.0 GHz | 0.5 GHz | 40 GHz | Absorptive | 60 dB Min - Measured 74.66 dB | 8.0 dB Max - Measured 6.56 dB | Rise: 15 ns Max
Fall: 15 ns Max
Delay On: 50 ns Max
Delay Off: 50 ns Max |
P4T-500M18G-80-T-SFF-IND-1
Active | Active | 0.5 to 18 GHz | 0.5 GHz | 18 GHz | Absorptive | 80 dB Typ - Measured 81.70 dB | 3.75 dB Max - Measured 2.75 dB | 50% TTL to 10%/90% RF 25 ns Typ - Measured 30 ns |
