P12T-0R5G40G-60-T-292FF Preliminary
SP12T Absorptive Switch
Quantic PMI Model P12T-0R5G40G-60-T-292FF is a high speed, single pole, twelve throw, absorptive switch capable of switching operating over the 0.5 to 40 GHz frequency range that is capable of switching within 100 ns while maintaining 60 dB of isolation. Housing measures 6.0" x 2.0" x 0.4" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP12T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 40 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 10 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW |
| Control Signal: | 4-Bit Decoded TTL |
| Power Supply: | +5 VDC @ 600 mA, -5 VDC @ 100 mA |
| Power / Control Connector: | Solder Pins |
| Connectors: | SMA Female |

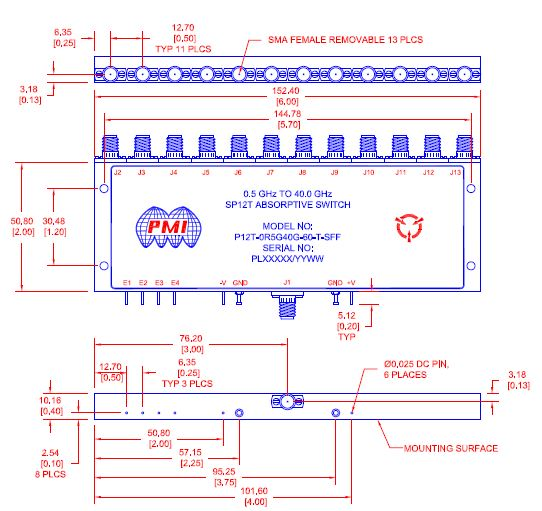

| Size: | 6.0" x 2.0" x 0.4" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -54 ºC to +95 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
