Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed
P12T-0R5G18G-60-T-SFF-OPT8Preliminary0.5 to 8.0 GHz0.5 GHz8.0 GHzAbsorptive60 dB Min4.0 dB Max100 ns Max - Measured 31 ns
P12T-0R126D5-60-R-292FFPreliminary0.1 to 26.5 GHz0.1 GHz26.5 GHzReflective60 dB Min9.0 dB Max100 ns Max
P12T-0R126D5-60-T-292FFPreliminary0.1 to 26.5 GHz0.1 GHz26.5 GHzAbsorptive60 dB Min10.0 dB Max100 ns Max
P12T-6R0G18R0G-70-T-SFFPreliminary6.0 to 18.0 GHz6 GHz18 GHzAbsorptive70 dB Min (6.0 to 12.0 GHz), 70 dB Min (12.0 to 18.0 GHz)4.3 dB Max (6.0 to 12.0 GHz), 5.6 dB Max (12.0 to 18.0 GHz)700 ns Max (On/Off)
P12T-6R0G18R0G-70-T-SFF-DECPreliminary6.0 to 18.0 GHz6 GHz18 GHzAbsorptive70 dB Min (6.0 to 12.0 GHz), 70 dB Min (12.0 to 18.0 GHz)4.3 dB Max (6.0 to 12.0 GHz), 5.6 dB Max (12.0 to 18.0 GHz)700 ns Max (On/Off)
P12T-0R5G18G-60-R-SFFPreliminary0.5 to 18.0 GHz0.5 GHz18 GHzReflective60dB min.5.0dB max.100 nsec max.
P12T-0R5G40G-60-T-292FFPreliminary0.5 to 40.0 GHz0.5 GHz40 GHzAbsorptive60 dB min.10 dB max.100 ns max.
P12T-0R5G40G-60-R-292FFPreliminary0.5 to 40.0 GHz0.5 GHz40 GHzReflective60 dB min.10.0 dB max.100 ns max.

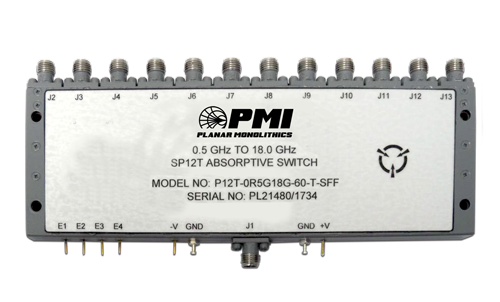

P12T-0R5G18G-60-T-SFFActive0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB Min - Measured 86.16 dB5.5 dB Max - Measured 4.46 dB100 ns Max - Measured 31 ns
