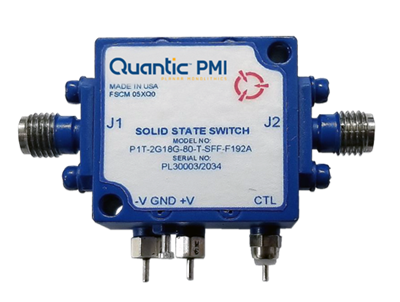

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 2 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Isolation (Typ): | 80 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 10 nsec |
|---|
| Configuration: | SPST |
|---|
| Frequency: | 2.0 to 18.0 GHz |
|---|
| Isolation: | 80 dB min. (2.0 to 18.0 GHz) |
|---|
| Insertion Loss: | 3.5 dB max |
|---|
| VSWR In/Out: | 2.0:1 max |
|---|
| Input Power: | +27 dBm "Hot Switching" max |
|---|
| Video leakage: | 50 mV peak to peak - Measured @ 300 MHz BW |
|---|
| Switching Speed: | 10 ns (Rise/Fall), 15 ns (Delay On), 30 ns (Delay Off) |
|---|
| Control Signal: | TTL Logic "0" = On, TTL Logic "1" = Off |
|---|
| Power Supply: | +5V @ 50 mA max., -12V @ 75 mA max. |
|---|
| Connectors: | SMA(F) |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -65 to +110 ºC |
|---|
| Temperature (Storage): | -65ºC to +125ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
