P1T-500M18G-85-T-SFF Active
Absorptive, High Speed, SPST Switch
Buy Now
Additional Documents
- Product Feature
- Test Report - 12/3/14
- PL21257 - Unit Data
- PL21258 - Unit Data
- PL21259 - Unit Data
- PL21260 - Unit Data
- PL21261 - Unit Data
- PL21262 - Unit Data
- PL24936 - Unit Data
- PL24937 - Unit Data
- PL24938 - Unit Data
- PL24939 - Unit Data
- PL24940 - Unit Data
- PL24941 - Unit Data
- PL24942 - Unit Data
- PL25051 - Unit Data
- PL25052 - Unit Data
- PL25054 - Unit Data
- PL25055 - Unit Data
- PL25056 - Unit Data
- PL25057 - Unit Data
- PL26395 - Unit Data
- PL26397 - Unit Data
- PL26398 - Unit Data
- PL36426 - Unit Data
- PL36427 - Unit Data
- PL36428 - Unit Data
- PL36429 - Unit Data
- PL36430 - Unit Data
- PL36431 - Unit Data
- PL36432 - Unit Data
- PL36432-1 - Unit Data
- PL36433 - Unit Data
- PL36434 - Unit Data
- PL36435 - Unit Data
- PL36436 - Unit Data
- PL36437 - Unit Data
- PL36438 - Unit Data
- PL36439 - Unit Data
- PL36440 - Unit Data
- PL36441 - Unit Data
- PL36442 - Unit Data
- PL52323 - Unit Data

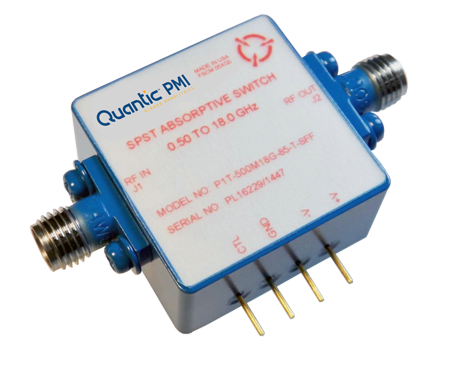

Quantic PMI Model P1T-500M18G-85-T-SFF is an absorptive, high speed, single pole single throw switch capable of switching within 25 ns typically that has a operating frequency range of 0.5 to 18 GHz with an 85 dB isolation. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SPST |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss - Typ (dB): | 5 dB |
| Insertion Loss (dB): | 5 dB Typ |
| Isolation (dB): | 85 dB |
| Switching Speed: | 25 ns Typ |
| Switching Speed - Typ: | 25 ns |
| VSWR In/Out: | 2.5:1 Typ |
| Input Power: | 20 dBm CW Max |
| Control Signal: | TTL Compatible, "0" = Insertion Loss, "1" = Isolation |
| Power Supply: | +5 VDC @ 20 mA Typ, -5 VDC @ 20 mA Typ |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
