P20T-0R5G18G-80-T-515-SFF-SP Preliminary
Single Pole Twenty Throw Switch (SP20T)
PMI Model P20T-0R5G18G-80-T-515-SFF-SP is a 0.5 to 18 GHz SP20T switch featuring 65 dB isolation, 10 W peak power handling, and 7.5 dB insertion loss. Housing size is 4.0" SQ x 0.63" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP20T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 5.5 Goal, 7.5 Max |
| Isolation (dB): | 65 Min |
| Switching Speed: | 1 µs Max |
| VSWR: | 2.0:1 Max 1.8:1 Typ |
| Amplitude Tracking: | 0.5 dB Peak to Peak Max All Output Ports |
| Input Power: | 23 dBm CW Max 10 W Peak Max (1 us Pulse Width) |
| Control Signal: | TTL Logic - 5 Bit Decoded |
| Power Supply: | +5 VDC @ 500 mA Max -12 to -15 VDC @ 200 mA Max |
| Connectors: | RF: SMA Female DC & Control: Solder Pins |

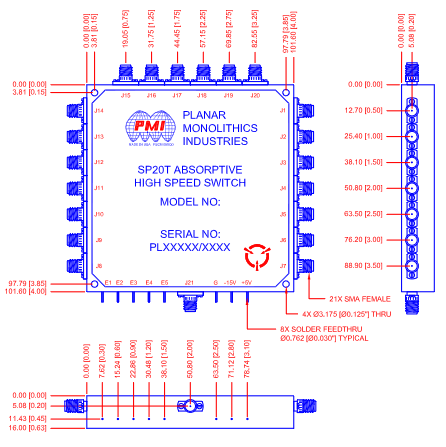

| Size: | 4.0" SQ x 0.63" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -65 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +95 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
