Single Pole - Twenty-Throw (SP20T)

Quantic PMI offers a variety of Single Pole - Twenty-Throw (SP20T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed
P20T-4G8G-80-T-515-SFF-HERM
Preliminary		Preliminary4.0 TO 8.0 GHz4.0 GHz8.0 GHzAbsorptive80 dB Min4.0 dB Max2 µs Max (50% TTL TO 90% RF)
2 µs Max (10% RF TO 90% RF)
P20T-4G8G-80-T-515-SFF-1
Preliminary		Preliminary4.0 to 8.0 GHz4 GHz8.0 GHzAbsorptive80dB min4.0dB max2usec max (50% TTL to 90% RF), 2usec max (10% RF to 90% RF)
P20T-7R2G8R3G-35-28-SFF
Preliminary		Preliminary7.2 to 8.3 GHz7.2 GHz8.3 GHz
-
35 dB min. between ports10 dB max. @ C-Band
-
P20T-7G18G-80-T-515-SFF-SP
Active		Active7.0 to 18.0 GHz7 GHz18.0 GHzAbsorptive65 dB Min5.5 dB Goal, 7.5 dB Max1 µs Max

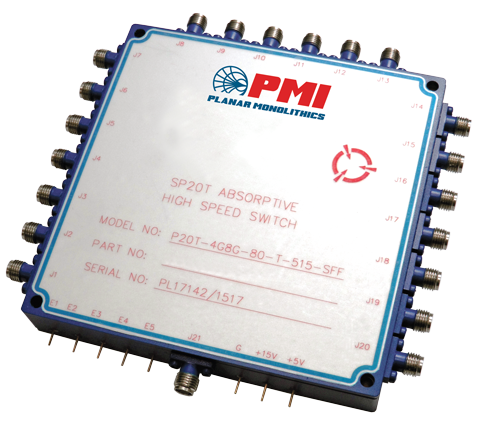

P20T-4G8G-80-T-515-SFF
Active		Active4.0 to 8.0 GHz4 GHz8.0 GHzAbsorptive80 dB Min - Measured 88.3 dB4.0 dB Max - Measured 3.95 dB2 µs Max (50% TTL to 90% RF) - Measured <100 ns,
2 µs Max (10% RF to 90% RF) - Measured <14 ns
