P20T-4G8G-80-T-515-SFF Active

Absorptive, SP20T, Pin Diode Switch

P20T-4G8G-80-T-515-SFF
Product Feature

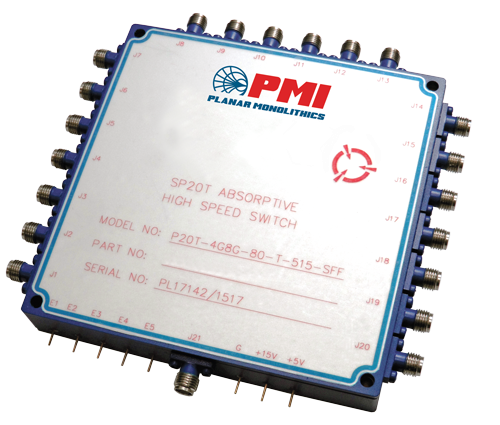

PMI Model P20T-4G8G-80-T-515-SFF is an absorptive, single pole, twenty throw, pin diode switch that operates over the 4 to 8 GHz, frequency range. This model incorporates a TTL compatible driver for easy system integration.  Unit size is 4.0" SQ x 0.63" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Reflective / Absorptive: Absorptive
Frequency (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Insertion Loss (dB): 4 dB Max
Isolation (dB): 80 dB Min
Switching Speed: 2 µs Max (50% TTL to 90% RF),
2 µs Max (10% RF to 90% RF)
VSWR In/Out: 2.0:1 Max / 1.8:1 Typ
Input Power: 100 mW Max CW (Hot Switchable)
Impedance: 50 Ohm (Nominal)
Control Signal: 5-Bit Decoded TTL
Power Supply: +5 VDC (±5%) @ 300 mA Max
+15 VDC (±2%) @ 200 mA Max
Connectors: RF: SMA Female
DC & Control: Solder Pins
Size: 4.0" SQ x 0.63"
Finish: Painted Blue
Mounting surface free of paint
Weight: 500 g Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +85 ºC
Temperature (Non-Operating): -57 ºC to +85 ºC
Humidity: MIL-E-5400T 3.2.24.4 / 100% RH
Shock: MIL-E-5400T 3.24.6.1 / 15G 11 ± ms, 6 Directions
Vibration: MIL-E-5400T 3.2.24.5 FIGURE 2/ SHEET 1 OF 3 CURVE III
Altitude: 30, 000 FT
