P2T-0R3G18G-70-T-515-SFF Active

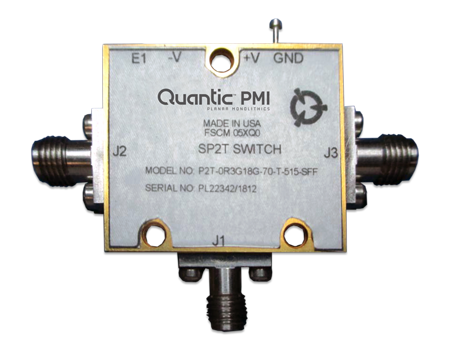

Quantic PMI Model P2T-0R3G18G-70-T-515-SFF is a, single pole, double throw, absorptive switch that operates from 0.5 to 18.0 GHz.

General Parameters:
Status:	Active
Configuration:	SP2T
Reflective / Absorptive:	Absorptive
Frequency Range (GHz):	0.5 to 18
Frequency Min (GHz):	0.5
Frequency Max (GHz):	18
Insertion Loss (dB):	3.5 dB Max
Insertion Loss - Typ (dB):	3.5 dB
Isolation (dB):	70 dB Min - Measured 80 dB
Isolation - Typ (dB):	70 dB
Input Power (dBm):	20 dBm CW (Standard), 10 dBm (High Speed)
Survival Power:	1 W CW, 10 W Peak 1 µs
Switching Speed:	Rise Time: 15 ns Max (10% RF to 90% RF) Fall Time: 15 ns Max (90% RF to 10% RF) Delay On/Off: 100 ns Max.
Switching Speed (Typ):	15 ns
Rise Time:	30 ns Max (10% RF to 90% RF) - Measured 19.4 ns
Fall Time:	30 ns Max (90% RF to 10% RF) - Measured 4.1 ns
Delay On:	100 ns Max - Measured 50 ns
Delay Off:	100 ns Max - Measured 30 ns
Power Supply:	+5 VDC @ 100 mA Max - Measured 52 mA -15 V @ 100 mA Max - Measured 48 mA
Control Signal:	TTL Logic "0" = J1-J2 On, TTL Logic "1" = J1-J3 On
VSWR In/Out:	In/Out: 2.0:1 - Measured 1.93:1 Terminated Out: 2.0:1
Power & Control Connector:	Solder Pins
Connectors:	SMA Female
Size:	1.2" x 1.0" x 0.5"
Finish:	Gold Plated
Export Classification (ECCN):	EAR99
Environmental Ratings:
Temperature (Operating):	-55 ºC to +85 ºC
Temperature (Storage):	-65 ºC to +125 ºC
Humidity:	MIL-STD-202F, Method 103B Cond B
Shock:	MIL-STD-202F, Method 213B Cond B
Vibration:	MIL-STD-202F, Method 204D Cond B
Altitude:	MIL-STD-202F, Method 105C Cond B
Temperature Cycle:	MIL-STD-202F, Method 107D Cond A
