P2T-218-60-512-R-SFF
Preliminary | Preliminary | 2.0 GHz | 18.0 GHz | Reflective | 60 dB Min | 1.8 dB Max | 1 W CW/ 2 W PEAK Max | 30 ns Max |
P2T-2G18G-55-T-512-SFF-LV-SP-QB-ROHS
Preliminary | Preliminary | 2.0 GHz | 18.0 GHz | Absorptive | 55 dB Min | 3.0 dB Max | +23 d8m CW Max (Operating)
+27 d8m CW Max (Suvival) | 50 ns Max
Ton = 50% TTL to 90% RF
Toff = 50% TTL to 10% RF |
P2T-6G18G-40-R-570-SFF-80WCW-OPT1315
Preliminary | Preliminary | 13 GHz | 15 GHz | Reflective | 25dB Min / 40dB Typ | 1.5dB Max | 80 W CW | 1.25 us Max, 1.1 us Typ (50% TTL to 90% RF and 50% TTL to 10% RF) |
P2T-2G18G-55-T-512-SFF-LV-SP-QB
Active | Active | 2.0 GHz | 18.0 GHz | Absorptive | 55 dB Min | 3.0 dB Max | +23 d8m CW Max (Operating)
+27 d8m CW Max (Suvival) | 50 ns Max
Ton = 50% TTL to 90% RF
Toff = 50% TTL to 10% RF |
P2T-10G31G-60-T-55-292FF
Preliminary | Preliminary | 10 GHz | 31 GHz | Absorptive | 60 dB Min | 5.0 dB Max | +20 dBm CW Max | 50 ns Typ |

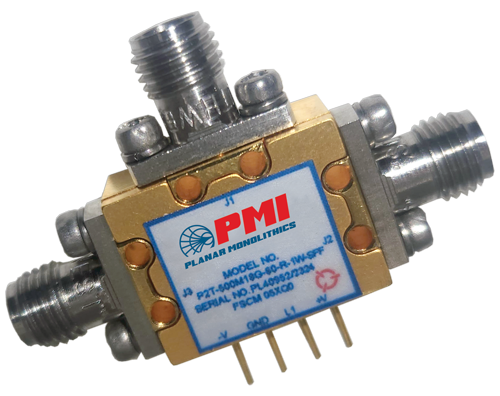

P2T-500M18G-60-R-1W-SFF
Active | Active | 0.5 GHz | 18.0 GHz | Reflective | 60 dB Min | 2.5 dB Max | 1W CW, 2W PEAK, 1% DC, 100 ns MAX (2-18 GHz) | 25 ns Max |

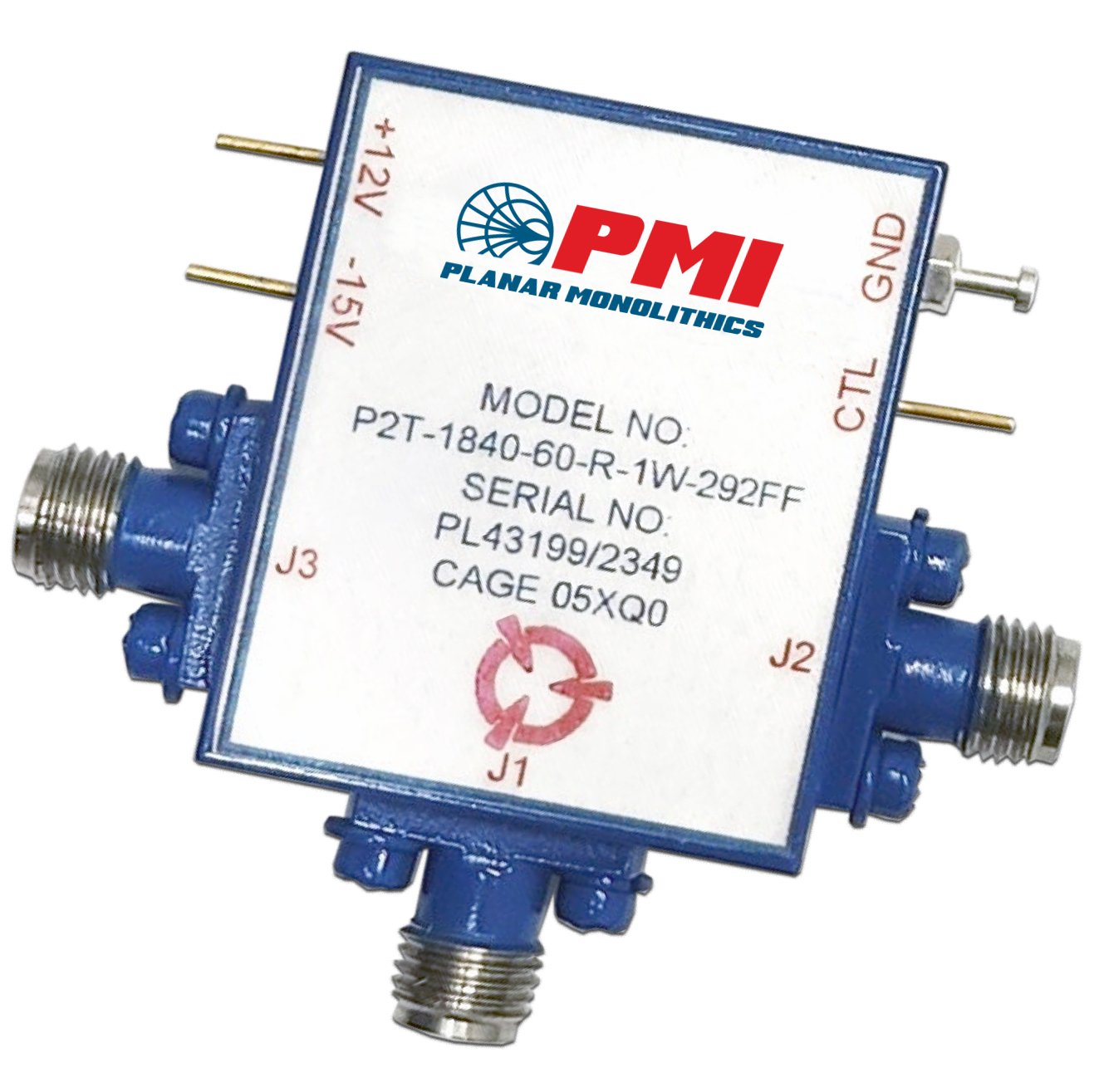

P2T-1840-60-R-1W-292FF
Active | Active | 18 GHz | 40 GHz | Reflective | 60 dB Min | 3.25 dB Typ, 3.5 dB Max | 1 Watt CW Max | 100 ns Typ, 500 ns Max |
PSWN-218-2DR-STD-F9120AH-27-OPT1G18G-515V
Preliminary | Preliminary | 1 GHz | 18 GHz | Reflective | 60 dB min | 3 dB max | 1 Watt CW or Peak | 50ns max |
PSWN-218-2DR-STD-F9120AH-27-OPT5G8G-515V
Preliminary | Preliminary | 5 GHz | 8 GHz | Reflective | 60dB min | 3dB max | 1 Watt CW or Peak | 50ns max |
P2T-500M40G-30-R-55-292FM
Active | Active | 0.5 GHz | 40.0 GHz | Reflective | 30 dB Typ | 4.0 dB typ. | +20 dBm CW Max | Rise: 15 ns
Fall: 15 ns
Delay On: 50 ns max.
Delay Off: 50 ns max. |
P2T-612-80-T-1W-SFF-2
Preliminary | Preliminary | 6.0 GHz | 12.0 GHz | Absorptive | 80 dB Min | 2 dB Max | +30 dBm CW Min | 150 ns Max |
P2T-100M56G-100-T-185MM
Active | Active | 0.1 GHz | 56 GHz | Absorptive | 90 dB (0.1 TO 1 GHz) Min
90 dB (1 TO 18 GHz) Min
75 dB (18 TO 40 GHz) Min
70 dB (40 TO 52 GHz) Min
65 dB (52 TO 56 GHz) Min | 4.0 dB (0.1 TO 18 GHz) Max
7.0 dB (18 TO 40 GHz) Max
13.0 dB (40 TO 52 GHz) Max
15.0 dB (52 TO 56 GHz) Max | 23dBm CW Max | 50 ns Max |
P2T-0D5G18G-55-T-512-SFF-LV-SP
Preliminary | Preliminary | 0.5 GHz | 18.0 GHz | Absorptive | 55d8 Min | 4.0 dB Max | +23d8m CW Max (Operating) | 50ns Max |
P2T-812-80-515-T-SFF-DIFF
Preliminary | Preliminary | 8.0 GHz | 12.0 GHz | Absorptive | 80 dB Typ, 60 dB Min | 2.75 dB Max | +30 dBm CW Max (Survival) | 50 ns Typ, 60 ns Max |
P2T-100M800M-50-R-NFF
Preliminary | Preliminary | 0.1 GHz | 0.8 GHz | Reflective | 50dB Min @ 150-300 MHz
45dB Min @ 100-800 MHz | 0.6 dB Max | Peak 1000 W, Duty cycle 20%, pulse width 6us Max | 5 us Max |
P2T-500M18G-80-R-515-SFF-4W-OPT112
Preliminary | Preliminary | 1.0 GHz | 12.0 GHz | Reflective | 70 dB min - Measured 75.21 dB | 2.0 dB typ | 4 Watts CW max | 200 ns max - Measured 60 ns |
P2T-500M18G-80-R-515-SFF-OPT112
Active | Active | 1 GHz | 12 GHz | Reflective | 70 dB Min | 2.0 dB Max (0.5-12 GHz) | 25 dBm CW Max | 100 ns Max |
P2T-500M18G-80-R-515-SFF-4W
Active | Active | 0.5 GHz | 18 GHz | Reflective | 70 dB min - Measured 75.21 dB | 3.5 dB typ - Measured 3.14 dB | 4W CW max / 16W Peak (50ns PW / 10% DC) / 75 W Peak (1 µs max. pulse width, 0.1% duty cycle) Derate linearly to 50% at +95°C | 200 ns max - Measured 60 ns |
P2T-1G2G-85-T-SFF-PN
Preliminary | Preliminary | 1.0 GHz | 2.0 GHz | Absorptive | 85 dB Min | 1.0 dB Max | +30 dBm CW Max | 100 ns Max |
P2T-DC18G-10-R-5V-SFF-HIP10W
Active | Active | DC | 18.0 GHz | Reflective | 10 dB Min | 4.0 dB Max 3.0 dB Goal | 5 W CW max. | 100 ns |
P2T-812-80-515-R-SFF-DIFF
Preliminary | Preliminary | 8.0 GHz | 12.0 GHz | Reflective | 80 dB Typ, 60 dB Min | 2.5 dB Max | +30 dBm CW Max (Survival) | 50 ns Typ, 60 ns Max |
P2T-2G4G-80-55-R-SFF
Active | Active | 2.0 GHz | 4.0 GHz | Reflective | 80 dB Min | 1.3 dB Max | +30 dBm Max (Operating) | 50 ns Min |
P2T-218-60-R-1W-SFF
Active | Active | 2.0 GHz | 18.0 GHz | Reflective | 60 dB Min | 2.5 dB Max | (Survival) 1 W CW, 2 W Peak, 1% DC, 100 ns Max | 25 ns Max |
P2T-DC18G-10-R-5V-SFF-HIP10W-HERM
Preliminary | Preliminary | DC | 18.0 GHz | Reflective | 10 dB Min | 4.0 dB MAX 3.0 dB GOAL | 5 WATTS CW MAX (NOT TO BE SWITCHED ANY HIGHER THAN 50kHz [PRI) | 100 ns GOAL (AT LOW POWER) |
P2T-612-80-T-1W-SFF
Preliminary | Preliminary | 6.0 GHz | 12.0 GHz | Absorptive | 80 dB Min | 2 dB Max | +30 dBm CW Min | 150 ns Max |
P2T-0518-60-T-2W-SFF
Preliminary | Preliminary | 0.5 GHz | 18.0 GHz | Absorptive | 60 dB Min | 3 dB Max | 1 W CW, 2 W PEAK, 1%DC, 100 ns Max (Survival) | 100 ns Max |
P2T-1840-50-R-4W-292FF
Preliminary | Preliminary | 18.0 | 40.0 GHz | Reflective | 50 dB Min | 3 dB Max | 4 W PEAK, 20%DC, 200 ns Max (Survival) | 50 ns Max |
P2T-057-60-T-2W-SFF
Preliminary | Preliminary | 0.5 GHz | 7 GHz | Absorptive | 60dB Min | 1.8 dB Max | 0.5 W CW, 2 W PEAK, 1%DC, 100 ns Max (Survival) | 100 ns Max |
P2T-100M50G-100-T-OPT40
Active | Active | 0.1 GHz | 40.0 GHz | Absorptive | 85 dB (0.1 TO 18 GHz) Min
80 dB (18 TO 40 GHz) Min | 4.5 dB (0.1 TO 18 GHz) Max
6.0 dB (18 TO 40 GHz) Max | 20 dBm CW Max | 50 ns Max |
P2T-2D7G3D1G-75-T-SFF-PN-1W-PM
Preliminary | Preliminary | 2.7 GHz | 3.1 GHz | Absorptive | 75dB MIN | 1.3dB +/-0.1dB MAX | 1 Watt (30 dBM) CW MAX | 100ns MAX |
P2T-6G18G-40-R-570-SFF-300W
Active | Active | 6 GHz | 18 GHz | Reflective | 40 dB Typ, 38 dB Min | 2.2 dB Max | 300 W Peak | 1.25 µs Max (50% TTL TO 90% RF & 50% TTL TO 10% RF) |
P2T-218-60-515-R-SFF
Active | Active | 2.0 GHz | 18.0 GHz | Reflective | 60 dB Min | 1.8 dB Max | 1 W CW/ 2 W PEAK Max | 30 ns Max |
P2T-500M20G-70-T-55-SFF-I
Preliminary | Preliminary | 0.5 GHz | 20 GHz | Absorptive | 70dB MIN | 2.75 dB MAX | +23 dBm CW MAX | RISE: 15ns MAX
FALL 15ns MAX
DELAY ON: 50ns MAX
DELAY OFF: 50ns MAX |
P2T-100M50G-100-T-I
Preliminary | Preliminary | 0.1 GHz | 50 GHz | Absorptive | 70 dB (0.1 to 1 GHz) Typ
100 dB (1 to 18 GHz) Typ
100 dB (18 to 40 GHz) Typ
80 dB (40 to 50 GHz) Typ | 5.0 dB (0.1 to 18 GHz) Typ
6.0 dB (18 to 40 GHz) Typ
9.0 dB (40 to 50 GHz) Typ | 20 dBm CW Max | 50 ns Max |
P2T-1840-30-R-1W-292FF
Active | Active | 18 GHz | 40 GHz | Reflective | 35 dB Typ, 30 dB Min | 2.5 dB Typ, 3.0 dB Max | 1 Watt CW Max | 100 ns Typ, 500 ns Max |
P2T-18G40G-65-R-292FF-ROHS
Active | Active | 18 GHz | 40 GHz | Reflective | 65 dB | 3.5 dB | +20 dBm Max (+30 dBm Damage Level) | 100 ns Max - Measured <30 ns |
P2T-4060-80-T
Preliminary | Preliminary | 40 GHz | 60 GHz | Absorptive | 80 dB Typ | 9.0 dB Typ | 20 dBm CW Max | 50 ns Max |
P2T-100M44-70-T-292FF-PH
Preliminary | Preliminary | 0.1 GHz | 44 GHz | Absorptive | 70 dB Min. (0.1 TO 44 GHz) | 5.0 dB Max. (0.1 TO 18 GHz)
7.6 dB Max. (18 GHz TO 35 GHz)
12 dB Max. (35 GHz TO 44 GHz) | dBm @ +85 Degrees C & 24 dBm HOT SWITCHING | 100 ns Typ |
P2T-100M50G-100-512-T
Active | Active | 0.1 GHz | 50 GHz | Absorptive | 85 dB (0.1 to 18 GHz)
85 dB (18 to 40 GHz)
70 dB (40 to 50 GHz) | 4.5 dB (0.1 to 18 GHz)
6.0 dB (18 to 40 GHz)
8.5 dB (40 to 50 GHz) | 20 dBm CW Max | 50 ns Max |

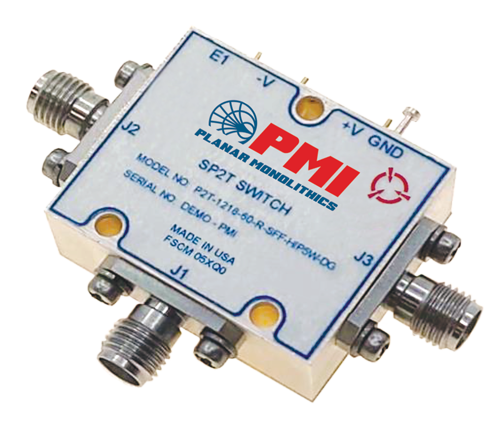

P2T-1218-60-R-SFF-HIP5W-DG
Active | Active | 12.0 GHz (Operates from 8 GHz) | 18.0 GHz | Reflective | 60 dB Min | 2.75 dB Max | 2W CW Max | 225 ns Typ |
P2T-100M56G-100-T
Active | Active | 0.1 GHz | 56 GHz | Absorptive | 70 dB (100 MHz to 1 GHz) Typ
100 dB (1 to 18 GHz) Typ
80 dB (18 to 56 GHz) Typ | 5.0 dB (100 MHz to 18 GHz) Max
6.0 dB (18 to 40 GHz) Max
9.0 dB (40 to 52) Max
14.0 (52 to 56 GHz) Max | 20 dBm CW Max | 50 ns Max |
P2T-9K30G-60-R-SFF-ROHS
Active | Active | 9 kHz | 30 GHz | Absorptive | Between J1 & J2/J3: 55 dB Min (9 kHz to 10.0 GHz),
48 dB Min (10.0 to 20.0 GHz),
45 dB Min (20.0 GHz to 30.0 GHz)
Between J2 & J3: 60 dB Min (9 kHz to 10.0 GHz),
50 dB Min (10.0 to 20.0 GHz),
50 dB Min (20.0 to 30.0 GHz) | 2.00 dB Max (9 kHz to 10.0 GHz)
2.75 dB Max (10.0 to 20.0 GHz)
3.50 dB Typ, 3.80 dB Max (20.0 to 30.0 GHz) | +29 dBm Max | Rise and Fall Time: 1.0 µs Max (10% to 90% of RF Output)
On and Off Time: 3.5 µs Typ, 4 µs Max (50% TTL to 90% of RF Output)
RF Settling Time: 6.2 µs Typ (50% Vctl to 0.1 dB of Final RF Output),
10 µs Typ (50% Vctl to 0.05 dB of Final RF Output)
Hot Switching: +18 dBm Typ |
P2T-1G1R1G-25-R-TFF-100W-OPT525NS
Active | Active | 1.0 GHz | 1.1 GHz | Reflective | 25 dB Min | 0.8 dB Max | 100 W | 525 ns typ. (50% TTL to 10%/90% RF) |
P2T-500M40G-60-T-55-292FF REV B
Active | Active | 0.5 GHz | 40 GHz | Absorptive | 60 dB Min | 6.0 dB Max | +20 dBm CW | 65 ns Max |
P2T-DC8G-45-R-50W-AL
Active | Active | DC | 8.0 GHz | Reflective | 53 dB Min, 58 dB Typ @ 0.01 - 0.5 GHz
50 dB Min, 52 dB Typ @ 0.5 - 1.0 GHz
44 dB Min, 47 dB Typ @ 1.0 - 2.0 GHz
40 dB Min, 42 dB Typ @ 2.0 - 4.0 GHz
37 dB Min, 40 dB Typ @ 4.0 - 6.0 GHz
36 dB Min, 40 dB Typ @ 6.0 - 8.0 GHz | 1.00 dB Max, 0.80 dB Typ @ 0.01 - 0.5 GHz
1.20 dB Max, 1.00 dB Typ @ 0.5 - 1.0 GHz
1.40 dB Max, 1.00 dB Typ @ 1.0 - 2.0 GHz
1.80 dB Max, 1.50 dB Typ @ 2.0 - 4.0 GHz
2.30 dB Max, 2.00 dB Typ @ 4.0 - 6.0 GHz
2.80 dB Max, 2.50 dB Typ @ 6.0 - 8.0 GHz | 50 Watts Average (Cold Switching) | 100 ns Max |
P2T-0R5G8G-45-R-50W-AL
Active | Active | 0.5 GHz | 8.0 GHz | Reflective | 48 dB Min, 52 dB Typ @ 0.5-1.0 GHz
42 dB Min, 45 dB Typ @ 1.0-2.0 GHz
36 dB Min, 38 dB Typ @ 2.0-4.0 GHz
35 dB Min, 37 dB Typ @ 4.0-6.0 GHz
30 dB Min, 33 dB Typ @ 6.0-8.0 GHz | 1.30 dB Max, 0.90 Typ @ 0.5-1.0 GHz
1.40 dB Max, 1.00 dB Typ @ 1.0-2.0 GHz
1.60 dB Max, 1.30 dB Typ @ 2.0-4.0 GHz
2.30 dB Max, 2.00 dB Typ @ 4.0-6.0 GHz
2.60 dB Max, 2.40 dB Typ @ 6.0-8.0 GHz | 50 Watt Average | 100 ns Max |
P2T-0R961R30-40-R-515-SFF-200W
Prelimiary | Prelimiary | 0.96 GHz | 1.3 GHz | Reflective | 40 dB Min. | 0.75 dB Max. | 200 Watts cw (Cold Switch) | 10 us |
P2T-0R1G8G-45-R-50W-AL-SMP
Prelimianry | Prelimianry | 0.5 GHz | 8.0 GHz | Reflective | 45 dB Min, 49 dB Typ @ 0.5-1.0 GHz
45 dB Min, 48 db Typ @ 1.0-2.0 GHz
40 dB Min, 41 dB Typ @2.0-4.0 GHz
35 dB Min, 37 dB Typ @ 4.0-6.0 GHz
30 dB Min, 33 dB Typ @ 6.0-8.0 GHz | 1.25 dB Max, 0.90 dB Typ @ 0.5-1.0 GHz
1.25 dB Max, 1.00 dB Typ @ 1.0-2.0 GHz
1.5 dB Max, 1.25 dB Typ @ 2.0-4.0 GHz
2.0 dB Max, 1.85 dB Typ @ 4.0-6.0 GHz
3.0 dB Max, 2.65 dB @ 6.0-8.0 GHz | 50W Average (Cold Switching) | 100 ns Max |
P2T-20500-50-R-515-SFF-150WHS
Preliminary | Preliminary | 0.02 GHz | 0.5 GHz | Reflective | 50 dB Min. | 0.5 dB Max | 150 Watts CW (Hot Switch) | 40 us |
P2T-1G18G-75-T-SFF
Active | Active | 1.0 GHz | 18.0 GHz | Absorptive | 75 dB min. | 3.0 dB max. | +30 dBm max. (Survival)
+20 dBm max. (Operating) | 100 ns max. |
P2T-2G6G-75-T-SFF-I
Preliminary | Preliminary | 2.0 GHz | 6.0 GHz | Absorptive | 75 dB min. | 2.0:1 Max | +30 dBm max. (Survival)
+20 dBm max. (Operating) | 100 ns max. |
P2T-2G18G-65-T-SFF-I
Preliminary | Preliminary | 2.0 GHz | 18.0 GHz | Absorptive | 65 dB min. | 3.0 dB max. | +30 dBm max. (Survival)
+20 dBm max. (Operating) | 100 ns max. |
P2T-500M4G-70-T-515-SFF-23DBM-ST-MVG
Preliminary | Preliminary | 0.5 GHz | 4.0 GHz | Absorptive | 70 dB min. | 1.5 dB max. | 23dBm CW min. - Hot Switching | 60 ns max. |
P2T-100M44-50-T-292FF-PH
Active | Active | 0.1 GHz | 44.0 GHz | Absorptive | 54 dB Typ (0.1 to 18.0 GHz)
50 dB Typ (18.0 to 35.0 GHz)
46 dB Typ (35.0 to 44.0 GHz) | 2.5 dB Max (0.1 to 18.0 GHz)
3.8 dB Max (18.0 to 35.0 GHz)
6.0 dB Max (35.0 to 44.0 GHz) | 27 dBm @ +85 °C
24 dBm Hot Switching | Rise and Fall Time: 10 ns Max
0% to 90% of RF Output)
On and Off Time: 20 ns Max
(50% Vctl to 90% of RF Output)
RF Settling Time: 60 ns Typ
(50% Vctl to 0.1 dB of Final RF Output),
70 ns Typ (50% Vctl to 0.05 dB of Final RF Output) |
P2T-6G18G-40-R-570-TFF-1D5KW-120W
Active | Active | 6.0 GHz | 18.0 GHz | Reflective | 35 dB Typ | 2.3 dB Max | 1.5 kW Peak (120 W CW) | 1.25 µs Max,
1.1 µs Typ (50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-9D2G10G-40-R-570-TFF-1D6KW-200W
Active | Active | 9.2 GHz | 10.0 GHz | Reflective | 40 dB Typ | 1.75 dB Max | 1.6 kW Peak (200 W CW) | 1.25 µs Max, 1.1 µs Typ
(50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-8G12G-40-R-570-TFF-1D5KW-120W
Active | Active | 8.0 GHz | 12.0 GHz | Reflective | 40 dB Typ | 2.0 dB Max | 1.5 kW Peak (120 W CW) | 1.25 µs Max, 1.1 µs Typ |
P2T-2G18G-10-R-5V-SFF-HIP10W-NSI
Preliminary | Preliminary | 2.0 GHz | 18.0 GHz | Reflective | 40 dB typ., 35 dB min. (2.0 to 6.0 GHz)
35 dB typ., 28 dB min. (6.0 to 12.0 GHz)
30 dB typ., 25 dB min. (12.0 to 18.0 GHz) | 1.5 dB max. (2.0 to 6.0 GHz)
2.0 dB max. (6.0 to 12.0 GHz)
2.7 dB max. (12.0 to 18.0 GHz) | 10 W CW max. (Not to be Switched any Higher than 50 kHz (PRI)) | 100 ns max. |
P2T-6G18G-40-R-570-TFF-120WCW
Active | Active | 6.0 GHz | 18.0 GHz | Reflective | 40 dB | 2.2 dB Max at band edges for 20% bandwidth and typically 1.75 dB goal for mid-band of 80% of the bandwidth 2.0 dB Max, and typically 1.5 dB goal | 120 W CW (1.5 kW Peak) | 1.25 µs Max, 1.1 µs Typ
(50% TTL to 90% RF and 50% TTL to 10% RF) |
P2T-0D418-75-T-SFF
Preliminary | Preliminary | 0.4 GHz | 18.0 GHz | Absorptive | 75 dB min. | 2.2 dB @ 0.4 to 10.0 GHz max.
3.0 dB @ 10.0 to 18.0 GHz max. | 27 dBm Com Port 23 dBm Other Ports
Peak 8 Watts max. @ 1 us
(Note: When input +27 dBm, the open port can not be full reflected) | 100 ns max. |
P2T-30M6-70-T-SFF
Preliminary | Preliminary | 0.03 GHz | 6.0 GHz | Absorptive | 70 dB min. | 2.6 dB max. | 27 dBm Com Port 23 dBm Other Ports @ Frequency Over 0.5 GHz
+20 dBm @ Frequency Under 0.5 GHz
Peak 8 Watts max. @ 1 us
(Note: When input +27 dBm, the output of on port can not be full reflected) | 200 ns max. |
P2T-6G18G-50-R-40W-TFF
Preliminary | Preliminary | 6.0 GHz | 18.0 GHz | Reflective | 50 dB min. | 3.0 dB max. | 40 W CW max., 300 W Peak max. | 200 ns max. (50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-2G6G-50-R-40W-SFFF
Preliminary | Preliminary | 2.0 GHz | 6.0 GHz | Reflective | 50 dB min. | 3 dB max. | 40 W max. | 200 ns |
P2T-400M2G-50-T-SFF
Preliminary | Preliminary | 0.4 GHz | 2.0 GHz | Absorptive | 50 dB Min | 1 dB max
within 0.5 dB amplitude tracking for all outputs | 1 W CW max., 75 W Peak (1 us Pulse Width) max. | 2 µs max |
P2T-28-60-T-SFF
Preliminary | Preliminary | 2.0 GHz | 8.0 GHz | Absorptive | 60 dB min. | 1.7 dB max. | 0.5 W CW, 1 W Peak | 250 ns |
P2T-30M6G-60-515-T-SFF
Preliminary | Preliminary | 0.03 GHz | 6.0 GHz | Absorptive | 60 dB min. | 3 dB max. | 1 W | 250 ns max. |
P2T-100M52G-100-T-OPT52D7
Preliminary | Preliminary | 0.1 GHz | 52.7 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) typ.
100 dB (1.0 to 18.0 GHz) typ.
100 dB (18.0 to 40.0 GHz) typ.
80 dB (40.0 to 52.7 GHz) typ. | 5.0 dB (0.1 to 18.0 GHz) typ.
6.0 dB (18.0 to 40.0 GHz) typ.
10.0 dB (40.0 to 52.7 GHz) typ. | 20 dBm CW max. | 50 ns max. |
P2T-100M52G-100-T-OPT54
Preliminary | Preliminary | 0.1 GHz | 54.0 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) typ.
100 dB (1.0 to 18.0 GHz) typ.
100 dB (18.0 to 40.0 GHz) typ.
80 dB (40.0 to 54.0 GHz) typ. | 5.0 dB (0.1 to 18.0 GHz) typ.
6.0 dB (18.0 to 40.0 GHz) typ.
10.0 dB (40.0 to 54.0 GHz) typ. | 20 dBm CW max. | 50 ns max. |
P2T-100M52G-100-T
Active | Active | 0.1 GHz | 52.0 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) Typ
100 dB (1.0 to 18.0 GHz) Typ
100 dB (18.0 to 40.0 GHz) Typ
80 dB (40.0 to 52.0 GHz) Typ | 5.0 dB (0.1 to 18.0 GHz) Typ
6.0 dB (18.0 to 40.0 GHz) Typ
10.0 dB (40.0 to 52.0 GHz) Typ | 20 dBm CW Max | 50 ns Max |
P2T-0R8G3G-60-R-TNC-200W
Preliminary | Preliminary | 0.8 GHz | 3.0 GHz | Reflective | 60 dB min. | 1.5 dB typ. | 200 W CW | 1 us typ. |
P2T-2G8G-40-R-570-TFF-100W
Preliminary | Preliminary | 2.0 GHz | 8.0 GHz | Reflective | 40 dB min. | 2.2 dB max. @ Band Edges for 20% Bandwidth and Typically 1.75 dB Goal
For Mid-Band of 80% of the Bandwidth 2.0 dB max. and Typically 1.5 dB Goal | 1 kW Peak, 100 W CW | 1.25 us max., 1.1 us typ.
(50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-3G6G-60-R-TNC-150W
Preliminary | Preliminary | 3.0 GHz | 6.0 GHz | Reflective | 60 dB min. | 1 dB typ. | 150 W CW | 1 us typ. |
P2T-6G18G-40-R-570-TFF-1D6KW-300W
Preliminary | Preliminary | 6.0 GHz | 18.0 GHz | Reflective | 40 dB typ., 38 dB min. | 2.2 dB max. @ Band Edges for 20% Bandwidth and Typically 1.75 dB Goal
For Mid-Band of 80% of the Bandwidth 2.0 dB max. and Typically 1.5 dB Goal | 1.6 kW Peak, 300 W CW typ. | 1.25 us max., 1.1 us typ.
(50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-80M1G-60-R-TNC-200W
Preliminary | Preliminary | 0.08 GHz | 1.0 GHz | Reflective | 60 dB min. | 1 dB typ. | 200 W CW | 2 us typ. |
P2T-1G1R1G-50-R-SMT-50W
Preliminary | Preliminary | 1.0 GHz | 1.1 GHz | Reflective | 50 dB min. | 0.50 dB max. | 50 W average (Cold Switch)
1500 W Peak (15 µs max. Pulse Width, 2% max. Duty Cycle) | Ton, Toff = 1 µs max. |
P2T-0R1G8G-45-R-50W-AL
Active | Active | 0.1 GHz | 8.0 GHz | Reflective | 50 dB Min, 45 dB Typ @ 0.1 to 2.0 GHz
40 dB Min, 41 dB Typ @ 2.0 to 4.0 GHz
35 dB Min, 37 dB Typ @ 4.0 to 8.0 GHz | 1.70 dB Max, 0.90 dB Typ @ 0.1 to 2.0 GHz
1.30 dB Max, 1.0 dB Typ @ 2.0 to 4.0 GHz
2.50 dB Max, 2.2 dB Typ @ 4.0 to 8.0 GHz | 50 W Average | 100 ns Typ |
P2T-10M8G-45-R-50W-AL
Active | Active | 0.01 GHz | 8.0 GHz | Reflective | 50 dB Min, 51 dB Typ @ 0.01 to 1.0 GHz
40 dB Min, 41 dB Typ @ 1.0 o 4.0 GHz
37 dB Min, 38 dB Typ @ 4.0 to 6.0 GHz
36 dB Min, 37 dB Typ @ 6.0 to 8.0 GHz | 0.90 dB Max, 0.80 Typ @ 0.01 to 1.0 GHz
1.25 dB Max, 1.20 dB Typ @ 1.0 to 4.0 GHz
1.80 dB Max, 1.75 dB Typ @ 4.0 to 6.0 GHz
2.60 dB Max, 2.50 dB Typ @ 6.0 to 8.0 GHz | 50 W Average | 100 ns Typ |
P2T-6G14G-50-R-SFFF
Preliminary | Preliminary | 6.0 GHz | 14.0 GHz | Reflective | 40 dB min. | 3 dB max. | 40 W max. | 200 ns |
P2T-41D742D3-60-R-292FF
Preliminary | Preliminary | 41.7 GHz | 42.3 GHz | Reflective | 60 dB Min | 7 dB Max | 20 dBm | 50 ns max. |
P2T-2G18G-60-T-SFF-PM-I-NG
Active | Active | 2.0 GHz | 18.0 GHz | Absorptive | 60 dB Min | 3.0 dB Max | +30 dBm Max (Survival),
+20 dBm Max (Operating) | 100 ns Max |
P2T-2G18G-60-T-SFF-PM-I
Active | Active | 2.0 GHz | 18.0 GHz | Absorptive | 60 dB Min | 3.0 dB Max | +30 dBm Max (Survival),
+20 dBm Max (Operating) | 100 ns Max |
P2T-6G18G-27-T-548-160W-TNC
Preliminary | Preliminary | 6.0 GHz | 18.0 GHz | Absorptive | 27 dB min. | 2.2 dB max. | 160 W CW min. | 2 µs |
P2T-0R5G4G-30-R-SFF-50W-MB
Active | Active | 0.5 GHz | 4.0 GHz | Reflective | 30 dB typ. | 1.25 dB max. | 50 W avg. | 1 usec max. |
P2T-0R1G4G-30-R-SFF-50W-MB
Active | Active | 0.1 GHz | 4.0 GHz | Reflective | 30 dB typ. | 1.25 dB max. | 50 Watts | 1 usec max. |
P2T-0R1G20G-60-T-SFF
Preliminary | Preliminary | 0.1 GHz | 20 GHz | Absorptive | 4.5dB max | 60 min | +20 dBm max | 50 ns typ, 75 ns max, (50% TTL to 10%/90% RF) |
P2T-0R1G20G-80-T-SFF
Preliminary | Preliminary | 0.1 GHz | 20 GHz | Absorptive | 80 dB min. | 5.0 dB max. | +20 dBm CW | 100 nsec typical, 300 nsec max. |
P2T-0R3G18G-70-R-55-SFF-OPT5G8G-P28V
Preliminary | Preliminary | 5 GHz | 8 GHz | Reflective | 60dB min | 3dB max | +20dBm CW max | 50nsec max |
P2T-0R5G18G-65-R-SFF
Preliminary | Preliminary | 0.5 GHZ | 18.0 GHz | Reflective | 65 dB typ. | 2.5 dB typ. | +20 dBm max. | 100 ns max. |
P2T-0R75G18G-80-R-512-SFF-OPT212D5G-N15
Preliminary | Preliminary | 2 GHz | 12.5 GHz | Reflective | 75dB min., 90dB typ. | 2.8dB max., 2.5dB typ. | +30dBm CW max. | 25ns typ., 35ns max |
P2T-10M6G-25-R-5V48V-SFF-HIP40W
Preliminary | Preliminary | 0.01 GHz | 6 GHz | Reflective | 25 dB typ, 20 dB min. | 2.5 dB typ, 2.8 dB max. | 40 Watts CW max , (Not to be switched any higher than 50kHz [PRI] or hot switched) | 100ns max, (50% TTL to 10%/90% RF) |
P2T-1200M1400M-35-R-SFF
Preliminary | Preliminary | 1.2 GHz | 1.4 GHz | Reflective | 35 dB Minimum | 0.4 dB Maximum | 100 W CW, 500 W Peak, 1% Duty Cycle, 10us Pulse | 5ms, 50% TTL to 10% or 90% RF |
P2T-1290M1710M-80-R-120W
Preliminary | Preliminary | 1.29 GHz | 1.71 GHz | Reflective | 80 dB Minimum | 0.5 dB Maximum | 120 W CW, All VSWR Conditions | 5 µs, 50% TTL to 10% or 90% RF |
P2T-1290M1710M-80-R-SFF
Preliminary | Preliminary | 1.29 GHz | 1.71 GHz | Reflective | 80 dB Typical | 0.5 dB Typical | 120 W CW, All VSWR Conditions | 5 µs, 50% TTL to 10% or 90% RF |
P2T-15D4G17D3G-80-T-515-SFF-5W
Preliminary | Preliminary | 15.4 GHz | 17.3 GHz | Absorptive | 70 dB min. | 3.5 dB typ. | 5 Watts CW max. | 200 ns max. |
P2T-17G18G-60-33DBM-5-SFF
Active | Active | 17 GHz | 18 GHz | Reflective | 70dB typical, 60dB min. | 2.0dB max. | +33dBm CW max. | 100nsec max. |
P2T-17G40G-60-T-55-292FF-OPT42
Preliminary | Preliminary | 17 GHz | 42 GHz | Absorptive | 60 dB Min | 5.5 dB Max | 100 mW CW Max (Hot Switching) | 100 ns Max (50% TTL to 90% RF), 100 ns Max (10% RF to 90% RF) |
P2T-1D2G1D4G-60-R-515-SFF-10WCW
Preliminary | Preliminary | 1.2 GHZ | 1.4 GHz | Reflective | 60 dB min. | 1.0 dB max. | 10 Watts CW max. | 100 ns typ. |
P2T-1D2G1D4G-60-R-515-SFF-10WCW-SP
Preliminary | Preliminary | 1.2 GHZ | 1.4 GHz | Reflective | 60 dB min. | 1.0 dB max. | 10 Watts CW max. | 100 ns typ. |
P2T-1D2G1D4G-60-T-515-SFF-2W
Preliminary | Preliminary | 1.2 GHZ | 1.4 GHz | Absorptive | 60 dB min. | 1.5 dB max. | 2 Watts CW max. | 200 ns max. |
P2T-1D2G1D4G-60-T-515-SFF-2W-SP
Preliminary | Preliminary | 1.2 GHZ | 1.4 GHz | Absorptive | 60 dB min. | 1.5 dB max. | 2 Watts CW max. | 200 ns max. |
P2T-1D2G1D4G-60-T-SFF
Preliminary | Preliminary | 1.2 GHZ | 1.4 GHz | Absorptive | 60 dB min. | 1.5 dB max. | +20 dBm CW max. | 100 ns max. |
P2T-1D2G1D4G-60-T-SFF-SP
Preliminary | Preliminary | 1.2 GHZ | 1.4 GHz | Absorptive | 60 dB min. | 1.5 dB max. | +20 dBm max. (Operating) | 100 ns max. |
P2T-1G18G-10-R-12V-SFF-HIP10W
Preliminary | Preliminary | 1 GHz | 18 GHz | Reflective | 10 dB Min. - Measured 25.1 dB | 4.0 dB Max., 3.0 dBm goal - Measured 2.53 dB | 5 W CW Max., (Not to be switched any higher than 50 kHz [PRI]) | <40 ns Typ, 100ns Max. - Measured <40 ns |
P2T-1G18G-10-R-5V-SFF-HIP10W-HERM
Active | Active | 1 GHz | 18 GHz | Reflective | 10 dB Min. - Measured 25.1 dB | 4.0 dB Max., 3.0 dBm goal - Measured 2.53 dB | 5 W CW Max., (Not to be switched any higher than 50 kHz [PRI]) | <40 ns Typ, 100ns Max. - Measured <40 ns |
P2T-2D4G2D5G-30-R-TFF-50W
Preliminary | Preliminary | 2.4 GHz | 2.5 GHz | Reflective | 25dB min, 30dB typ | 1.0dB max | 50 Watts CW max *See Notes | 250ns typ (50% TTL to 10% - 90% RF) |
P2T-2G10G-60-R-515-SFF-2W
Preliminary | Preliminary | 2 GHz | 10 GHz | Reflective | 60dB min | 3.0dB max | 2 watts CW max | 100ns max |
P2T-2G18G-60-T-SFF-3W
Preliminary | Preliminary | 2 GHz | 18 GHz | Absorptive | 60dB min | 2.5dB typ, 3.5dB max | 3 Watts Peak, 2% Duty Cycle, 50nsec PW | 50ns max., 50% TTL to 10/90% RF) |
P2T-300M18G-70-T-512-SFF
Preliminary | Preliminary | 0.3 GHz | 18 GHz | Absorptive | 70dB min | 3.5dB max | +20 dBm CW max | 100ns max |
P2T-30G40G-60-R-292FF
Active | Active | 30 GHz | 40 GHz | Reflective | 60 dB min - Measured 76 dB | 3.5 dB max - Measured 3.4 dB | +20 dBm max | 100 ns max - Measured 19 ns |
P2T-30M6G-55-T-SFF
Preliminary | Preliminary | 0.03 GHz | 6 GHz | Absorptive | 55 dB typ. | 2.0 dB max. | +30 dBm max. survival, +20 dBm max. operating | 200 ns max. |
P2T-335M535M-30-R-SFF-20W
Active | Active | 0.335 GHz | 0.535 GHz | Reflective | 45dB min. | 0.9dB max. | +42dBm (16W) CW max. | 100nsec typ. |
P2T-420M470M-50-R-SFF
Preliminary | Preliminary | 0.42 GHz | 0.47 GHz | Reflective | 1.6 dB Max | 70 dB Max | +50 dBm P1dB CW | 1 µs Max |
P2T-500M10G-60-R-515-SFF-10WCW-OPT5D85G7D75G
Preliminary | Preliminary | 5.85 GHz | 7.75 GHz | Reflective | 70 dB min. | 1.5 dB max. | 10 Watts CW max | 100 ns typ, (50% TTL to 10% / 90% RF) |
P2T-500M18G-30-R-SFF-1W
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Reflective | 1.75 dB max. | 30 dB min | +30 dBm max. | 100 nsec max. |
P2T-500M18G-60-T-515-SFF-4W
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Absorptive | 60dB min | 3.5dB max | 4 Watts CW max | 200nsec max |
P2T-500M18G-80-T-515-SFF-4W-OPT400M6D4G
Preliminary | Preliminary | 0.4 GHz | 6.4 GHz | Absorptive | 70 dB Min. | 2.0 dB Typ. | 4 Watts CW Max. | 200 nsec Max. |
P2T-500M18G-80-T-55-SFF
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Absorptive | 3.5dB max | 80dB typ | +20dBm CW | 50% TTL to 10%/90% RF, 25ns typ |
P2T-500M20G-50-R-SFF-MICROD
Preliminary | Preliminary | 0.5 GHZ | 20.0 GHz | Reflective | 50 dB min | 2.8 dB max | +23 dBm CW max | 50 nsec max. |
P2T-500M20G-50-T-512-SFF-I-NH
Active | Active | 0.5 GHz | 20 GHz | Absorptive | 50dB min. | 2.8dB max. | +23dBm CW max. | 50nsec max. |
P2T-500M20G-50-T-SFF-JW
Active | Active | 0.5 GHz | 20 GHz | Absorptive | 50dB min. | 2.8dB max. | +23dBm CW max | 50nsec max. |
P2T-500M6G-40-R-5V-SFF-100W
Preliminary | Preliminary | 0.5 GHz | 6 GHz | Reflective | 2.5 dB max | 40 dB typ | 100 Watts Pulsed, (10% Duty Cycle, 20 µs Pulse Width) | 100 ns typ, (50% TTL to 10% / 90% RF) |
P2T-6G18G-25-T-TFF-100W-TERM
Preliminary | Preliminary | 6 GHz | 18 GHz | Absorptive | 25 dB Min | 2.0 dB Typ, 2.6 dB Max | 100 Watts CW Min (Terminated Section will handle 10 Watts CW Max) | 1µs Max |
P2T-6G18G-40-R-570-TFF-50W
Preliminary | Preliminary | 6 GHz | 18 GHz | Reflective | 40 dB typ. | 2.2 dB max. At band edges for 20% bandwidth and typically 1.75 dB goal. For mid-band of 80% of the bandwidth 2.0 dB max., and typically 1.5 dB goal. | 50 Watts CW | 200 ns max. (50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-6G18G-50-T-512-SFF-1W
Preliminary | Preliminary | 6 GHz | 18 GHz | Absorptive | 50dB min | 3.5dB typ | +30dBm CW max | 5ns typ, 3ns goal |
P2T-7D5G9G-80-T-SFF
Preliminary | Preliminary | 7.5 GHz | 9 GHz | Absorptive | 80dB min. | 2.0dB max. | +25dBm CW max. | Rise / Fall: 15nsec, Delay On / Off: 50nsec |
P2T-7D7G8D5G-25-T-SFF-PM
Preliminary | Preliminary | 7.7 GHz | 8.5 GHz | Absorptive | 25dB min | 1.0dB max | +20dBm CW (Operating), +23dBm CW (Survival) | 50% TTL to 10%/90% RF, 1us max, 100ns typ |
P2T-8G8D6G-80-T-SFF
Preliminary | Preliminary | 8 GHz | 8.6 GHz | Absorptive | 80dB min. | 2.0dB max. | +25dBm CW max. | Rise / Fall: 15nsec, Delay On / Off: 50nsec |
P2T-960M977M-30-R-528-SFF-20W
Active | Active | 0.96 GHz | 0.977 GHz | Reflective | 30dB min | 1.5dB max | +43dBm (20W) CW max. | 200ns typ, (Customer spec of 2us max) |
PDT-10G11G-50-515-SFF
Preliminary | Preliminary | 10 GHz | 11 GHz | Absorptive | 50 dB Min | 2 dB Max | +32 dBm Average, +44 dBm Peak | 200 ns Max |
PDT-13G13R5G-45-515-SFF
Preliminary | Preliminary | 13 GHz | 13.5 GHz | Absorptive | 45 dB Min | 2 dB Max | +29 dBm Average, +41 dBm Peak | 200 ns Max |
PDT-5G8G-50-515-SFF
Preliminary | Preliminary | 5 GHz | 8 GHz | Absorptive | 50 dB Min | 2 dB Max | +38 dBm Average, +50 dBm Peak | 200 ns Max |
PMSN-2DT-05-STD-OPT100M1G-XB15HAD
Preliminary | Preliminary | 0.1 GHz | 1 GHz | Absorptive | 60dB min. | 1.0dB max | +20dBm CW max | Rise: 15ns max, Fall: 15ns max, Delay On: 100ns max, Delay Off: 100ns max |
PMSN-2DT-05-STD-OPT80M1G-XB1247
Preliminary | Preliminary | 0.08 GHz | 1 GHz | Absorptive | 60dB min. | 1.1dB max | +20dBm CW max | Rise: 15ns max, Fall: 15ns max, Delay On: 100ns max, Delay Off: 100ns max |
PSWN-1140-4DR-STD-118-HS15NS-OPT5G8G-P28V
Preliminary | Preliminary | 5 GHz | 8 GHz | Reflective | 60dB typ | 3dB max | 1 Watt CW or Peak | 50ns max |
PSWN-218-2DR-STD-F9120AH-27-OPT5G8G-P28V
Preliminary | Preliminary | 5 GHz | 8 GHz | Reflective | 60dB min | 3dB max | 1 Watt CW or Peak | 50ns max |
P2T-0R5G2G-60-T-55-SFF
Preliminary | Preliminary | 0.5 GHz | 2 GHz | Absorptive | 1.8 dB max | 70 dB min | +23 dBm CW max (200 mW) | 50 ns max. |
P2T-100M1G-90-T-55-SFF
Active | Active | 0.1 GHz | 1 GHz | Absorptive | 90 dB min. - Measured 90.9 dB | 2.5 dB max. - Measured 1.9 dB | +20dBm CW | 50 ns max. - Measured 25 ns |
P2T-100M20G-100-T
Preliminary | Preliminary | 0.1 GHz | 20 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) typ, 100 dB (1 to 20.0 GHz) typ | 5.0 dB typ | 20 dBm max | 50 ns max |
P2T-10K20G-5-R-20-SFF
Active | Active | 10 kHz | 20 GHz | Reflective | 20dB min | 5.0dB max, 4.0dB typ | +23 dBm CW min. | 200nsec max., 150nsec typ |
P2T-1290M1710-80-R-SFF
Preliminary | Preliminary | 1.29 GHz | 1.71 GHz | Reflective | 80 dB Typical | 0.5 dB Typical | 120 W CW, All VSWR Conditions | 5 µs, 50% TTL to 10% or 90% RF |
P2T-14D415D4-15-SMT-20W
Active | Active | 14.4 GHz | 15.4 GHz | Reflective | 10dB Min | 1.2 dB Max at +25 °C,
1.5 dB Max over -54 °C to +85 °C | 20 Watts Max., 25 Watts Goal | - |
P2T-17G40G-60-T-55-292FF
Active | Active | 17 GHz | 40 GHz | Absorptive | 60 dB Min - Measured 63.15 dB | 5.5 dB Max - Measured 5.00 dB | 100 mW CW Max (Hot Switching) | 100 ns Max (50% TTL to 90% RF) - Measured 20.54 ns, 100 ns Max (10% RF to 90% RF) |
P2T-1M40G-55-T-292FF
Preliminary | Preliminary | 0.001 GHz | 40 GHz | Absorptive | 55dB typ, 40dB min | 6.5dB typ | +20 dBm CW max. | Rise/Fall Time: 5ns typ (10% to 90% RF & 90% to 10% RF)
Delay On/Off: 15ns typ (50% TTL to 10%/90% RF) |
P2T-1M40G-55-T-292FF-OPT27G
Preliminary | Preliminary | 0.05 GHz | 27 GHz | Absorptive | 55dB typ, 40dB min | 6.5dB typ | +20 dBm CW max. | Delay On/Off: 15 ns typ. (50% TTL to 10%/90% RF)
Rise/Fall Time: 5 ns typ. (10% to 90% RF & 90% to 10% RF) |
P2T-200M2G-80-R-SFF-2W
Preliminary | Preliminary | 0.2 GHz | 2 GHz | Reflective | 80dB min | 2.0dB max | 2 Watts CW max | 25ns max (50% TTL to 10/90% RF), 10ns typ (1-/90% RF & 90/10% RF) |
P2T-218-80-T-SFF-OPT818
Preliminary | Preliminary | 8 GHz | 18 GHz | Absorptive | 80 dB max | 2.5 dB typ, 2.75dB max | +20 dBm CW min | 50ns typ, 100ns max |
P2T-25G27G-25-T-55-292FF
Preliminary | Preliminary | 25 GHz | 27 GHz | Absorptive | 25 dB min. | 4.5 dB max. | 0 dBm | Rise: 15 ns max., Fall: 15 ns max., Delay On: 50 ns max., Delay Off: 50 ns max. |
P2T-30M400M-50-R-12V-SFF-HIP2W
Preliminary | Preliminary | 0.03 GHz | 0.4 GHz | Reflective | 50 dB min. | 1.0 dB max. | 2 Watts CW max., (Not to be switched any higher than 50 kHz [PRI]) | 100 ns max., (50% TTL to 10%/ 90% RF) |
P2T-500M18G-50-T-SFF-I-OPT7D78D5
Preliminary | Preliminary | 7.7 GHz | 8.5 GHz | Absorptive | 50dB max | 1.2dB max | +23 dBm CW max. | 50nsec max |
P2T-500M20G-50-T-5-12-SFF
Active | Active | 0.5 GHz | 20 GHz | Absorptive | 50dB min. | 2.8dB max. | +23dBm CW Max. | 50nsec max. |
P2T-500M20G-50-T-5-12-SFF-I
Active | Active | 0.5 GHz | 20 GHz | Absorptive | 50 dB min. - Measured 53.88 dB | 2.8 dB max. - Measured 2.52 dB | +23dBm CW max | 50 ns max. - Measured 37 ns |
P2T-50M40G-95-T-515-292FF-OPT27G
Preliminary | Preliminary | 0.05 GHz | 27 GHz | Absorptive | 100dB typ, 95dB min (0.05 to 18.0GHz), 95dB typ, 80dB min (18.0 to 27GHz) | 6.0dB max, 4.0dB typ (0.05 to 18GHz), 5.0dB typ (18.0 to 27GHz) | +20dBm CW max | 100nsec max |
P2T-50M40G-95-T-515-292FM-OPT27G
Active | Active | 0.05 GHz | 27 GHz | Absorptive | 100 dB typ, 95 dB min (0.05 to 18.0GHz), 95 dB typ, 80 dB min (18.0 to 27GHz) | 6.0 dB max - Measured 4.93 dB, 4.0 dB typ (0.05 to 18GHz) - Measured 4.0 dB, 5.0 dB typ (18.0 to 27GHz) | +20 dBm CW max | 100 nsec max - Measured 87 ns |
P2T-6G18G-25-T-TFF-100W
Active | Active | 6 GHz | 18 GHz | Reflective | 25 dB Min | 2.0 dB Typ, 2.6 dB Max | 100 Watts CW Min | 1 µs Max |
P2T-6G18G-60-T-512-SFF-1W
Active | Active | 6 GHz | 18 GHz | Absorptive | 60dB min. | 3.5dB typ. | +30dBm CW max. | 100nsec max. |
P2T-7D7G8D5G-25-T-SFF-PM-OPT15VCTL
Preliminary | Preliminary | 7.7 GHz | 8.5 GHz | Absorptive | 25 dB min. | 1.0 dB max. | +20dBm CW (Operating) | 100 ns |
P2T-9D25G-80-R-SFF-3W
Active | Active | 9.25 GHz | 9.25 GHz | Reflective | 80 dB min - Measured 87.8 dB | 1.2 dB max - Measured 1.18 dB | +34dBm CW max, OR, +33dBm Peak, 2us PW , 8KHz (Operating) | 20 ns max - Measured 20 ns |
PEC-9R510R7-100W-SFF-SPDT
Active | Active | 9.5 GHz | 10.7 GHz | Reflective | 40 dB Min - Measured 44.49 dB | 1.5 dB Typ - Measured 1.34 dB | 120 W CW Max | 400 ns - Measured <300 ns |
P2T-1090M-70-T-55-SFF
Active | Active | 1.09 GHz | 1.09 GHz | Absorptive | 70 dB min. - Measured 72.51 dB | 2.5 dB max. - Measured 1.83 dB | 0 dBm max. | 100 ns max., 50 ns typ. - Measured ‹100 ns |
P2T-10M6G-35-R-5V-SFF-HIP100W
Preliminary | Preliminary | 0.01 GHz | 6 GHz | Reflective | 35 dB typ., 25 dB min. | 2.0 dB typ. | 100 Watts Pulsed, (10% Duty Cycle, 20 µs Pulse Width) | 100 ns typ., (50% TTL to 10%/ 90% RF) |
P2T-10M6G-45-R-5V-SFF-HIP20W
Active | Active | 0.01 GHz | 6 GHz | Reflective | 25 dB Typ, 20 dB min Measured, 70 dB @ 0.01 GHz, 46 dB @ 0.5 GHz, 22.86 dB @ 6 GHz | 2.5 dB Typ, 2.8 dB Max – Measured 2.51 dB | 20 Watts CW Max – Tested to 25 Watts CW , (Not to be switched any higher than 50 kHz) | 100 ns Max – Measured 61.6 ns, (50% TTL to 10%/90% RF) |
P2T-10M6G-45-R-5V-SFF-HIP20W-OPT10M500M
Active | Active | 0.01 GHz | 0.5 GHz | Reflective | 45 dB Typ Measured, 70 dB @ 0.01 GHz, 46 dB @ 0.5 GHz, 22.86 dB @ 6 GHz | 1.0 dB Typ – Measured 0.6 dB | 20 Watts CW Max – Tested up to 25 Watts CW , (Not to be switched any higher than 50 kHz) | 100 ns Max – Measured 61.6 ns "On", 51.6 ns "Off", (50% TTL to 10%/90% RF) |
P2T-17G40G-60-R-55-292FF
Active | Active | 17 GHz | 40 GHz | Reflective | 60dB min - Measured 62 dB | 3.5dB max - Measured 3.3 dB | 100mW CW max (Hot Switching) | 100ns max (50% TTL to 90% RF), 100ns max (10% RF to 90% RF), Measured 20 ns |
P2T-1G1R1G-25-R-SFF-1KW
Active | Active | 1 GHz | 1.1 GHz | Reflective | 25dB min | 0.8dB max | 1 kW Peak | 300ns Goal, 375ns max , From 50% TTL to 10%/90% RF |
P2T-2G18G-50-T-512-SFF-MW
Active | Active | 2.0 GHz | 18.0 GHz | Absorptive | 50 dBc min. | 3.5 dB max. | +30 dBm max. | 100 ns max. |
P2T-500M18G-70-T-512-SFF
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Absorptive | 70dB min | 3.5dB max | +20 dBm CW max | 50 ns max. |
P2T-500M20G-50-R-SFF
Active | Active | 0.5 GHz | 20 GHz | Reflective | 50dB min | 2.8dB max | +23dBm CW max | 50nsec max. |
P2T-70M330M-80-T-55-SFF
Active | Active | 0.07 GHz | 0.33 GHz | Absorptive | 80 dB min. - Measured 83 dB | 1.5 dB max. - Measured 1.02 dB | +20 dBm CW max. (Operating) | 100 ns max. - Measured 96 ns |
P2T-7G18G-60-T-2W
Active | Active | 7 GHz | 18 GHz | Absorptive | 60 dB Min - Measured 73.5 dB | 3.0 dB Max - Measured 2.9 dB | 2 W (30 % Duty Cycle, 130 µs Pulse Width) | 500 ns Max |
P2T-8G11G-90-T-SFF
Active | Active | 8 GHz | 11 GHz | Absorptive | 90 dB min. - Measured 104 dB | 2.5 dB typ., 3.5 dB max. - Measured 2.1 dB | +20dBm CW (Operating) | 50 ns max. - Measured 15 to 20 ns |
P2T-8G12G-100-T-55-SFF
Active | Active | 8 GHz | 12 GHz | Absorptive | 100 dB min. - Measured 110.69 dB | 3.0 dB typ., 5.0 dB max. - Measured 4.7 dB | +15dBm max | 100 ns max. - Measured 100 ns |
P2T-8G18G-40-R-TFF-120W
Active | Active | 8 GHz | 18 GHz | Reflective | 40 dB - Measured 39.44 dB | 2.2 dB Max At band edges for 20% bandwidth and typically 1.75 dB goal. For mid-band of 80% of the bandwidth 2.0 dB Max, and typically 1.5 dB goal - Measured 2.17 dB | 120 W (CW) - Measured 125.89 W | 200 ns Max, (50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-8G18G-45-R-SFF-HIP20W-15V
Preliminary | Preliminary | 8 GHz | 18 GHz | Reflective | 45dB min. | 2.5dB max, 2.0dB typ | 20W CW Max, PRF 0.001 GHz Max , 10W CW Max (Hot Switching) | Rise Time: 75 ns typ.
Fall Time: 25 ns typ.
Delay On: 150 ns typ.
Delay Off: 100 ns typ. |
P2T-0R5G18G-55-R-SFF-PN *
Active | Active | 0.5 GHz | 18 GHz | Reflective | 3.25 dB typ - Measured 1.85 dB | 55 dB min - Measured 78.02 dB | +20 dBm CW max | 100 ns max - Measured 72.6 ns |
P2T-0R5G18G-55-R-SFF-PN-MD15
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Reflective | 3.25 dB typ. | 55 dB min. | +20 dBm CW max. | 100 ns max. |
P2T-10M1G-80-R-SFF *
Active | Active | 0.01 GHz | 1 GHz | Reflective | 1.5:1 typ. - Measured 1.2:1 | 1.1 dB typ. - Measured 0.71 dB | +30dBm max (Survival), +20dBm max (Operating) | 200 ns max. - Measured 125 ns |
P2T-12G18G-70-R-SFF *
Active | Active | 12 GHz | 18 GHz | Reflective | 70 dB min - measured 72 dB | 2.5 dB typ - measured 2.2 dB | +30 dBm max (Survival), +20 dBm max (Operating) | 100 ns max - measured 25 ns |
P2T-1G18G-10-R-528-SFF-HIP10W
Active | Active | 1 GHz | 18 GHz | Reflective | 25 dB Typ - Measured 25.73 dB | 3.0 dB Typ., 4.0 dB Max - Measured 2.66 dB | 10 W CW Max | 100 ns Typ - Measured 40 ns |
P2T-1G18G-65-T-SFF-MD15
Preliminary | Preliminary | 1.0 GHz | 18.0 GHz | Absorptive | 65 dB typ. | 3.5 dB max. | +30 dBm max. (Survival), +20 dBm max. (Operating) | 100 ns max. |
P2T-2G4G-75-R-SFF-PN *
Active | Active | 2 GHz | 4 GHz | Reflective | 75 dB min - Measured 85.4 dB | 0.9 dB typ - Measured 0.88 dB | +30 dBm max (Operating) | 100 ns max - Measured 72.6 ns |
P2T-3G3R5G-45-R-SFF-50W-SM
Active | Active | 3.0 GHz | 3.5 GHz | Reflective | 40 dB Typ. - Measured 43.1 dB | 1.0 dB Typ. - Measured 1.26 dB | 50 Watts CW max *See Notes | 1 µs Max. - Measured 66 ns |
P2T-4G8G-70-R-SFF *
Active | Active | 4 GHz | 8 GHz | Reflective | 70 dBm Min - Measured 119 dB | 1.6 dB Typ - Measured 1.4 dB | +30 dBm Max (Survival), +20 dBm Max (Operating) | 100 ns max - Measured 29 ns |
P2T-500M18G-50-T-SFF-I
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 50 dB min - Measured 52.38 dB | 2.8 dB max - Measured 2.22 dB | +23 dBm CW max - Measured +23 dBm CW | 50 ns max - Measured 35 ns |
P2T-500M40G-60-T-55-292FF-OPT500M26R5G
Active | Active | 0.5 GHz | 26.5 GHz | Absorptive | 60 dB Min | 6.0 dB Max | +20 dBm CW Max | Rise/Fall Time: 15 ns Max, Delay On/Off: 50 ns Max |
P2T-5G5D15G-30-R-528-SFF-20W
Active | Active | 5 GHz | 5.15 GHz | Reflective | 30 dB Min - Measured 35.2 dB | 1.5 dB goal, 2.0 dB Max - Measured 1.20 dB | +43 dBm (20 W) CW Max | 200 ns Typ, (Customer spec of 2 µs Max) |
P2T-0R1G20G-110-T-SFF
Active | Active | 0.1 GHz | 20 GHz | Absorptive | 110 dB Min | 5.0 dB Max | +20 dBm CW | 100 ns Typ, 300 ns Max |
P2T-100M40G-110-T-512-292FF
Active | Active | 0.1 GHz | 40 GHz | Absorptive | 110 dB Typ, 100 dB Min (0.3 to 18.0 GHz),
100 dB Typ, 90 dB Min (18.0 to 26.5 GHz),
90 dB Typ, 80 dB Min (0.1 to 0.3 & 26.5 to 40.0 GHz) | 6.5 dB Max, 4 dB Typ (0.1 to 18.0 GHz),
5 dB Typ (18.0 to 26.5 GHz),
5.5 dB Typ (26.5 to 40.0 GHz),
9 dB Max (0.1 to 0.3 GHz @ 20 dBm IN) | +20 dBm CW Max | 100 ns Max |
P2T-1G1R1G-25-R-SFF-100W-SM
Active | Active | 1 GHz | 1.1 GHz | Reflective | 25 dB Min - Measured 40.26 dB | 0.8 dB Max - Measured 0.32 dB | 100 Watts | 250 ns Typ (50% TTL to 10%/ 90% RF),
Measured 310 ns |
P2T-1M4G-55-T-SFF
Active | Active | 0.001 GHz | 4 GHz | Absorptive | 55dB typ, 40dB min | 5.0dB typ | +20 dBm CW max. | Rise/Fall Time: 5ns typ (10% to 90% RF & 90% to 10% RF)
Delay On/Off: 15ns typ (50% TTL to 10%/90% RF) |
P2T-2G6G-70-T-SFF
Preliminary | Preliminary | 2 GHz | 6 GHz | Absorptive | 70 dBm min. | 1.9 dB max. | 1 W (30 dBm) | 100 ns max. |
P2T-500M10G-60-R-515-SFF-10WCW
Active | Active | 0.5 GHz | 10 GHz | Reflective | 60 dB Min - Measured 88 dB | 2.5 dB Max - Measured 1.15 dB | 10 Watts CW Max | 100 ns Typ - Measured 86 ns, (50% TTL to 10% / 90% RF) |
P2T-500M18G-60-R-5-15-SFF
Active | Active | 0.5 GHz | 18 GHz | Reflective | 60dB min. | 2.2dB max. | 1 Watt CW Max. | 100nsec max. |
P2T-500M40G-60-R-55-292FF-OPT3040
Preliminary | Preliminary | 30 GHz | 40 GHz | Reflective | 55 dB min. | 3.5 dB max. | +20 dBm CW max. | Rise: 15 ns max., Fall: 15 ns max., Delay On: 50 ns max., Delay Off: 50 ns max. |
P2T-50M40G-95-T-515-SFF-OPT18G
Active | Active | 0.05 GHz | 18 GHz | Absorptive | 100 dB Typ - Measured 102.76 dB | 4.0 dB Typ - Measured 2.69 dB | +20 dBm CW Max | 100 ns Max - Measured 72.26 ns |
P2T-8G12G-90-T-SFF
Active | Active | 8 GHz | 12 GHz | Absorptive | 75 dB min. - Measured 80 dB | 2.4 dB typ. - Measured 2.25 dB | +20 dBm CW (Operating) - Measured +20 dBm CW | 20 ns max. - Measured 15 ns |
PEC-2D35G-100W-SFF-SPDT
Active | Active | 2.2 GHz | 2.5 GHz | Reflective | 40 dB Min. - Measured 63 dB | 2.5 dB Typ., 3.0 dB Max. - Measured 2.06 dB | 100 W Max. (Hot Switching without damage) | 100 ns goal, 350 ns Max. - Measured 150 ns |
PEC-2D35G-20W-SFF-SPDT
Active | Active | 2.2 GHz | 2.5 GHz | Reflective | 40 dB min. | 2.5 dB typ., 3.0 dB max. | 20 W max. (Hot switching without damage | 100 ns goal, 350 ns max. |
PMSN-2DR-05-STD-OPT28-XB59D
Active | Active | 2 GHz | 8 GHz | Reflective | 60 dB Min | 1.4 dB Max | +20 dBm CW Max | Rise: 15 ns Max,
Fall: 15 ns Max,
Delay On: 100 ns Max,
Delay Off: 100 ns Max |
P2T-0R3G18G-70-T-515-SFF
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 70 dB Min - Measured 80 dB | 3.5 dB Max - Measured 2.92 dB | +20 dBm CW (Standard), +10 dBm (High Speed) | Rise Time: 15 ns Max (10% RF to 90% RF)
Fall Time: 15 ns Max (90% RF to 10% RF)
Delay On/Off: 100 ns Max. |
P2T-0R3G18G-70-T-55-SFF
Active | Active | 0.3 GHz | 18 GHz | Absorptive | 70dB min. | 3.5dB max. | +20dBm CW max. | 50nsec max. |
P2T-0R5G8G-45-R-SFF-50W-SM
Active | Active | 0.5 GHz | 8.0 GHz | Reflective | 49 dB Typ @ 0.5 to 1.0 GHz,
Measured 49.42 dB Min (J1-J2), 48.58 dB Min (J1-J3),
33 dB Typ @ 6.0 to 8.0 GHz
Measured 33.88 dB Min (J1-J2), 33.42 dB Min (J1-J3) | 0.90 dB Typ @ 0.5 to 1.0 GHz,
Measured 0.91 dB Max (J1-J2), 0.86 dB Max (J1-J3),
2.65 dB Typ @ 6.0 to 8.0 GHz
Measured 2.65 Max (J1-J2), 2.48 dB Max (J1-J3) | 50 Watts | 1 µs Max, 100 ns Typ - Measured 69 ns |
P2T-18G40G-65-R-292FF-SP
Active | Active | 18 GHz | 40 GHz | Reflective | 65 dB Min (18 to 26.5 GHz),
55 dB Min (26.5 to 40 GHz) | 3.5 dB Max (18 to 26.5 GHz), 4.5 dB Max (26.5 to 40 GHz) | +20 dBm Max (+30 dBm Damage Level) | 100 ns Max |
P2T-2G4G-75-T-SFF-PN *
Active | Active | 2 GHz | 4 GHz | Absorptive | 75 dBm Min - Measured 87.15 dB | 1.2 dB - Measured 1.15 dB | 1 Watt CW Max | 100 ns Max - Measured 73 ns |
P2T-4G8G-50-R-SFFF-OPT7R9G8R4G
Preliminary | Preliminary | 7.9 GHz | 8.4 GHz | Reflective | 45 dB min. | 1.5 dB max. | 40 Watts max. | 200 ns |
P2T-8G12G-70-R-SFF *
Active | Active | 8 GHz | 12 GHz | Reflective | 70 dBm min - Measured 77.74 dB | 1.9 dB typ - Measured 1.66 dB | +30 dBm max (Survival), +20 dBm max (Operating) | 100 ns max - Measured 75 ns |
P2T-12G18G-70-T-SFF *
Active | Active | 12 GHz | 18 GHz | Absorptive | 70 dB min - Measured 79.8 dB | 3.5 dB max - Measured 3.07 dB | +30 dBm max (Survival), +20 dBm max (Operating) | 100 ns max - Measured 49.6 ns |
P2T-0R75G18G-80-R-512-SFF
Active | Active | 0.75 GHz | 18 GHz | Reflective | 80 dB Min - Measured 83.05 dB | 3.0 dB Typ - Measured 2.91 dB | +30 dBm CW Max | 25 ns Max - Measured 25 ns |
P2T-100M18G-60-T-515-SFF-4W
Active | Active | 0.1 GHz | 18 GHz | Absorptive | 60 dB Min - Measured 68.75 dB | 3.5 dB Max - Measured 3.32 dB | 4 Watts CW Max | 200 ns Max - Measured 55 ns |
P2T-1G18G-65-R-SFF *
Active | Active | 1 GHz | 18 GHz | Reflective | 65 dB typ - Measured 74.15 dB | 2.5 dB typ - Measured 2.42 dB | +30 dBm max (Survival), +20 dBm max (Operating) | 100 ns max - Measured 31.6 dB |
P2T-1G1R1G-25-R-TFF-40W
Active | Active | 1 GHz | 1.1 GHz | Reflective | 25dB min. – Measured 37dB | 0.8dB max – Measured 0.4dB | 40 W | 300ns max |
P2T-2G18G-55-T-512-SFF-LV
Active | Active | 2 GHz | 18 GHz | Absorptive | 55 dB Min - Measured 56.35 dB | 3.0 dB Max - Measured 2.65 dB | +23 dBm CW Max. (Operating),
+27 dBm CW Max (Survial) | 50 ns Max,
Ton = 50% TTL to 90% RF,
Toff = 50% TTL to 10% RF |
P2T-2G6G-65-T-SFF
Active | Active | 2.0 GHz | 6.0 GHz | Absorptive | 65 dB typ. | 1.5 dB max. | +20 dBm max. | 100 ns max. |
P2T-4G8G-50-R-SFFF
Active | Active | 4 GHz | 8 GHz | Reflective | 50 dB Min | 3 dB Max | 40 W Max | 200 ns |
P2T-6G18G-40-R-570-TFF-50WCW
Active | Active | 6 GHz | 18 GHz | Reflective | 40 dB | 2.2 dB Max At band edges for 20% bandwidth and typically 1.75 dB goal. For mid-band of 80% of the bandwidth 2.0 dB Max, and typically 1.5 dB goal. | 50 W CW | 1.25 µs Max, 1.1 µs Typ. (50% TTL to 90% RF & 50% TTL to 10% RF) |
P2T-10M1G-80-T-SFF *
Active | Active | 0.01 GHz | 1 GHz | Absorptive | 80 dB Typ - Measured 81.10 dB | 1.3 dB Max - Measured 1.19 dB | +30 dBm Max (Survival),
+20 dBm Max (Operating) | 200 ns Max - Measured 180 ns |
P2T-2G4G-50-R-SFFF
Active | Active | 2 GHz | 4 GHz | Reflective | 50 dB Min | 3 dB Max | 40 Watts Max | 200 ns |
P2T-500M18G-30-R-SFF
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Reflective | 30 dB min. | 1.5 dB typ., 1.6 dB max. | +23 dBm Max | 100 ns Max |
P2T-500M18G-80-T-515-SFF-4W-ST-OPT300M20G
Active | Active | 0.3 GHz | 20 GHz | Absorptive | 60 dB Min - Measured 74.72 dB | 4.0 dB Max - Measured 3.12 dB | 4 W CW Max | 60 ns Max - Measured 31.2 ns |
P2T-500M20G-50-T-5-12-SFF-I-SP
Active | Active | 0.5 GHZ | 20.0 GHz | Absorptive | 50 dB Min - Measured 53.88 dB | 2.8 dB Max - Measured 2.52 dB | +23 dBm CW Max | 50 ns Max - Measured 37 ns Typ |
P2T-2G18G-65-T-SFF
Active | Active | 2.0 GHz | 18.0 GHz | Absorptive | 65 dB typ. | 3.0 dB max. | +20 dBm max. | 100 ns max. |
P2T-3040-60-R-292FF-RC
Active | Active | 30 GHz | 40 GHz | Reflective | 60 dB Min | 3.5 dB Max over 25 ºC, 4.0 dB Max over temperature | +20 dBm Max | 100 ns Max |
P2T-1R2G1R4G-25-R-SFF-250W
Active | Active | 1.2 GHz | 1.4 GHz | Reflective | 0.8 dB Max - Measured 0.56 dB | 25 dB Min - Measured 35.68 dB | 250 W Peak - Measured 250 W | 250 ns Typ, 50% TTL To 10%/90% RF -Measured 253 ns |
P2T-300M10G-65-R-515-SFF-10WCW-LV
Active | Active | 0.3 GHz | 10.0 GHz | Reflective | 65 dB Min | 2.5 dB Max | 10 Watts CW Max | 100 ns Typ |
P2T-4G8G-70-T-SFF *
Active | Active | 4 GHz | 8 GHz | Absorptive | 70 dBm Min - Measured 119 dB | 1.9 dB Max - Measured 1.78 dB | +30 dBm Max (Survival), +20 dBm Max (Operating) | 100 ns Max - Measured 49.6 ns |
P2T-500M18G-50-T-SFF-I-SP
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 2.8 dB Max | 50 dB Min | +23 dBm CW Max | 50 ns Max |
P2T-8G18G-45-R-SFF-HIP20W
Active | Active | 8 GHz | 18 GHz | Reflective | 45 dB Min. - Measured 46.03 dB | 2.5 dB Max, 2.0 dB Typ - Measured 1.95 dB | 20 W CW Max, PRF 0.001 GHz Max ,
10W CW Max (Hot Switching) | Rise Time: 75 ns Typ
Fall Time: 25 ns Typ
Delay On: 150 ns Typ
Delay Off: 100 ns Typ
Hot Switching: 10 W CW Max |
P2T-1G18G-65-T-SFF *
Active | Active | 1 GHz | 18 GHz | Absorptive | 65 dB Typ - Measured 80.8 dB | 3.5 dB Max - Measured 3.14 dB | +30 dBm Max (Survival), +20 dBm Max (Operating) | 100 ns Max - Measured 49.6 ns |
P2T-2G18G-55-T-512-SFF-LV-50OHM
Active | Active | 2 GHz | 18 GHz | Absorptive | 55 dB Min - Measured 59.46 dB | 3.0 dB Max - Measured 2.66 dB | +23 dBm CW Max (Opererating), +27 dBm CW Max (Survival) | 50 ns Max - Measured 37 ns, Ton = 50% TTL to 90% RF, Toff = 50% TTL to 10% RF |
P2T-18G40G-65-R-292FF
Active | Active | 18 GHz | 40 GHz | Reflective | 65 dB Min (18 to 26.5 GHz) - Measured 77 dB,
55 dB Min (26.5 to 40 GHz) - Measured 82 dB | 3.5dB max. (18 to 26.5GHz) - Measured 2.0 dB, 4.5dB max. (26.5 to 40GHz) - Measured 3.6 dB | +20 dBm Max (+30 dBm Damage Level) | 100 ns Max - Measured <30 ns |
P2T-1R2G1R4G-60-T-SFF
Active | Active | 1.2 GHz | 1.4 GHz | Absorptive | 60 dB Min - Measured 93.47 dB | 1 dB Max - Measured 0.53 dB | +30 dBm Max (Survival) | 100 ns Max - Measured 49.8 |
P2T-500M40G-60-R-55-292FF *
Active | Active | 0.5 GHz | 40 GHz | Reflective | 55 dB min. - Measured 55.43 dB | 5.5 dB typ. - Measured 4.22 dB | +20 dBm CW max. | Rise: 15 ns max - Measured 3 ns, Fall: 15 ns max - Measured 3 ns, Delay On: 50 ns max - Measured 25 ns, Delay Off: 50 ns mas - Measured 25 ns |
P2T-12G18G-45-R-SFF-10W
Active | Active | 12 GHz | 18 GHz | Reflective | 45 dB Min - Measured 45.4 dB | 1.5 dB Max - Measured 1.39 dB | 10 Watts Max | 60 ns Max - Measured 50 ns |
P2T-500M18G-80-T-515-SFF-4W-ST-HERM
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Absorptive | 70 dB Min | 3.5 dB Typ | 4 Watts CW Max | 60 ns Max |
P2T-500M18G-80-T-55-SFF-1
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 80 dB tTp | 3.5 dB Max | +20 dBm CW | 50% TTL to 10%/90% RF, 25ns Typ |
P2T-0R3G18G-80-T-55-SFF
Active | Active | 0.3 GHz | 18 GHz | Absorptive | 80 dB Min - Measured 83.88 dB | 3.5 dB Max - Measured 2.74 dB | +20 dBm CW Max | 50 ns Max,
Rise Time - Measured 25 ns,
Fall Time - Measured 23 ns |
P2T-100M40G-95-T-512-292FF
Active | Active | 0.1 GHz | 40 GHz | Absorptive | 100 dB Typ, 95 dB Min (0.1 to 18.0 GHz)
95 dB Typ, 80 dB Min (18.0 to 26.5 GHz)
75 dB Typ, 70 dB Min (26.5 to 40.0 GHz) | 6 dB Max
4 dB Typ (0.1 to 18.0 GHz)
5 dB Typ (18.0 to 26.5 GHz)
5.5 dB Typ (26.5 to 40.0 GHz) | +20 dBm CW Max - Measured +20 dBm | 100 ns Max. - Measured 20 ns |
P2T-100M6G-80-T-SFF-JW
Active | Active | 0.1 GHz | 6 GHz | Absorptive | 80 dB Typ, 70 dB Min - Measured 82.04 dB | 2.5 dB Typ, 2.75 dB Max - Measured 1.92 dB | +23 dBm CW Max | 150 ns Typ, 200 ns Max - Measured 156 ns |
P2T-8G12G-70-T-SFF *
Active | Active | 8 GHz | 12 GHz | Absorptive | 70 dBm Min - Measured 91.9 dB | 2.2 dB Max - Measured 1.78 dB | +30 dBm Max (Survival),
+20 dBm Max (Operating) | 100 ns Max - Measured 49.6 ns |
P2T-9K30G-60-R-SFF
Active | Active | 9.0 kHz | 30.0 GHz | Absorptive | 65 dB Typ (9 kHz - 10 GHz) - Measured 57.19 dB
60 dB Typ (10 GHz - 20 GHz) - Measured 50.44 dB
60 dB Typ (20 GHz - 30 GHz) - Measured 48.75 dB | 1.1 dB Typ (9 kHz - 10 GHz) - Measured 1.73 dB
1.4 dB Typ (10 GHz - 20 GHz) - Measured 2.49 dB
2.0 dB Typ (20 GHz - 30 GHz) - Measured 3.18 dB | +24 dBm Max (+18 dBm Hot Switching Max) | 1 µs Typ |
PDT-8G12G-40-515-SFF
Active | Active | 8 GHz | 12 GHz | Absorptive | 40 dB Min - Measured 44.5 dB | 2.0 dB Max - Measured 1.89 dB | +40 dBm CW, +57 dBm, 1 µs, 1% Duty Cycle | 200 ns Max - Measured 196 ns |
P2T-1G1R1G-25-R-SFF-100W
Active | Active | 1 GHz | 1.1 GHz | Reflective | 25 dB Min - Measured 40.09 dB | 0.8 dB Max - Measured 0.49 dB | 100 Watts - Measured at 125.89 W CW | 250 ns Typ - Measured 176 ns (50% TTL to 10% / 90% RF) |
P2T-8G18G-50-R-SFFF
Active | Active | 8 GHz | 18 GHz | Reflective | 50 dB Min | 3 dB Max | 40 Watts Max | 200 ns |
P2T-6G18G-40-R-570-TFF-1D6KW
Active | Active | 6 GHz | 18 GHz | Reflective | 40 dB - Measured 41.01 dB | 2.2 dB Max @ band edges for 20% bandwidth and typically 1.75 dB goal. For mid-band of 80% of the bandwidth 2.0 dB Max, and typically 1.5 dB goal - Measured 2.13 dB | 125.89 Watts | 1.25 µs Max, 1.1 µs Typ (50% TTL to 90% RF & 50% TTL to 10% RF) - Measured 1.11 µs |
P2T-100M50G-100-T
Active | Active | 0.1 GHz | 50 GHz | Absorptive | 70 dB (0.1 to 1.0 GHz) Typ - Measured 103.7 dB
100 dB (1 to 18.0 GHz) Typ - Measured 107.8 dB
80 dB (18.0 to 40.0 GHz) Typ - Measured 90.8 dB
80 dB (40.0 to 50.0 GHz) Typ - Measured 95.9 dB | 5.0 dB (0.1 to 18.0 GHz) Typ - Measured 3.0 dB
6.0 dB (18.0 to 40.0 GHz) Typ - Measured 5.2 dB
9.0 dB (40.0 to 50.0 GHz) Typ - Measured 9.1 dB | 20 dBm Max | 50 ns Max - Measured 33 ns |
P2T-500M18G-80-T-515-SFF-4W
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 70 dB Min - Measured 75.21 dB | 3.5 dB Typ - Measured 3.14 dB | 4 Watts CW Max | 200 ns Max - Measured 60 ns |
P2T-2G18G-55-T-512-SFF-LV-SP
Active | Active | 2 GHz | 18 GHz | Absorptive | 55 dB Min | 3.0 dB Max | +23 dBm CW Max (Operating),
+27 dBm CW Max (Survival) | 50 ns Max,
Ton = 50% TTL to 90% RF,
Toff = 50% TTL to 10% RF |
P2T-500M40G-60-T-55-292FF *
Active | Active | 0.5 GHz | 40 GHz | Absorptive | 55 dB Min - Measured 70.87 dB | 6.0 dB Max - Measured 5.19 dB | +20 dBm CW Max - Measured +20 dBm CW | 50 ns Max - Measured 40 ns |
P2T-0R5G18G-55-T-SFF-PN
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 55 dB Min - Measured 93.22 dB | 3.75 dB Max - Measured 2.61 dB | +20 dBm CW Max | 100 ns Max - Measured ‹30 ns |
P2T-500M18G-80-T-515-SFF-4W-ST-ROHS
Preliminary | Preliminary | 0.5 GHz | 18 GHz | Absorptive | 70 dB Min - Measured 71.2 dB | 3.5 dB Typ - Measured 3.2 dB | 4 Watts CW Max | 60 ns Max - Measured <40 ns |
P2T-500M18G-80-T-515-SFF-4W-ST
Active | Active | 0.5 GHz | 18 GHz | Absorptive | 70 dB Min - Measured 71.2 dB | 3.5 dB Typ - Measured 3.2 dB | 4 W CW Max | 60 ns Max - Measured <40 ns |
