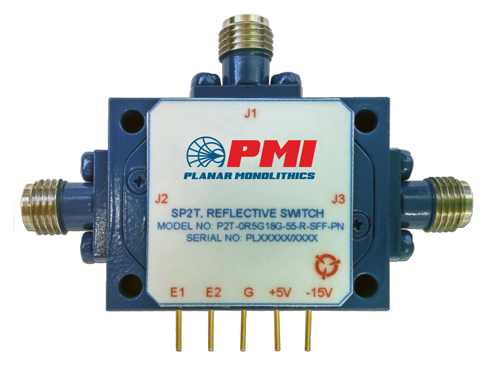

P2T-0R5G18G-55-R-SFF-PN * Active
SP2T Absorptive Switch
Quantic PMI Model P2T-0R5G18G-55-R-SFF-PN is a single pole, double throw, non-reflective switch designed to operate over the 0.5 to 18.0GHz, frequency range. This model is designed to maintain low insertion loss, high isolation and fast switching speed.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 55 dB Min |
| Insertion Loss - Typ (dB): | 55 dB |
| Isolation (dB): | 3.25 dB Typ - Measured 1.85 dB |
| Isolation - Typ (dB): | 3.25 dB |
| Input Power (dBm): | 20 dBm CW Max |
| Switching Speed: | 100 ns Max - Measured 72.6 ns |
| Switching Speed (Typ): | 100 ns |
| Power Supply: | +5 VDC @ 80 mA noMinal - Measured 18 mA, -15 V @ 50 mA noMinal - Measured 26 mA |
| Control Signal: | 2-Bit TTL Logic |
| VSWR In/Out: | 2.0:1 Max - Measured 165:1 |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.2" x 0.9" x 0.35" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
