P2T-0R5G18G-55-R-SFF-PN-MD15 Preliminary
SP2T Absorptive Switch

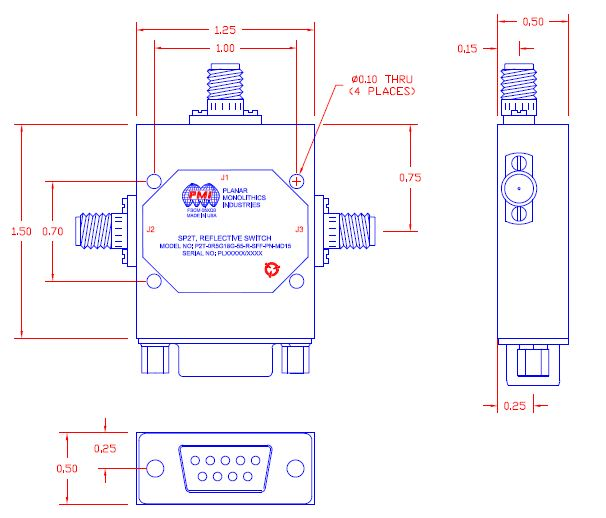

PMI Model P2T-0R5G18G-55-R-SFF-PN-MD15 is a single pole, double throw, non-reflective switch designed to operate over the 0.5 to 18 GHz frequency range and to maintain low insertion loss, high isolation and fast switching speed. Housing size is 1.25" x 1.5" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.25 dB Typ |
| Isolation (dB): | 55 dB Min |
| Input Power (dBm): | 20 dBm CW Max |
| Switching Speed: | 100 ns Max |
| Power Supply: | +5 VDC @ 80 mA, -15 VDC @ 50 mA |
| Control Signal: | TTL Logic |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Sub-D Connector |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.50" x 0.50" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
