P2T-0R5G2G-60-T-55-SFF Preliminary
SP2T Absorptive Switch

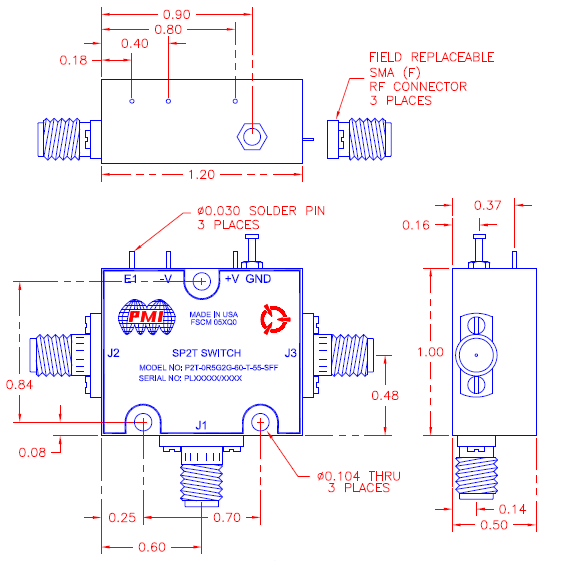

Quantic PMI Model P2T-0R5G2G-60-T-55-SFF is a single pole, double throw, absorptive switch that operates over the 0.5 to 2 GHz frequency range with a switching speed of 50 ns which is designed to handle 23 dBm CW input power. Housing measures 1.2" x 1.0" x 0.5" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.5 to 2 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 2 |
| Insertion Loss (dB): | 70 dB Min |
| Insertion Loss - Typ (dB): | 70 dB |
| Isolation (dB): | 1.8 dB Max |
| Isolation - Typ (dB): | 1.8 dB |
| Input Power (dBm): | 23 dBm CW Max (200 mW) |
| Switching Speed: | 50 ns Max |
| Switching Speed (Typ): | 50 ns |
| Rise Time: | 50 ns Max (10% RF to 90% RF) |
| Fall Time: | 50 ns Max (90% RF to 10% RF) |
| Power Supply: | +5 VDC @ 65 mA Max, -5 VDC @ 50 mA Max |
| Control Signal: | TTL Logic "0" = J1 to J2 ON, TTL Logic "1" = J1 to J3 ON |
| VSWR In/Out: | In/Out: 1.5:1, Terminated Out: 1.5:1 |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.20" x 1.00" x 0.50" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
