P2T-0R5G8G-45-R-SFF-50W-SM

Buy Now

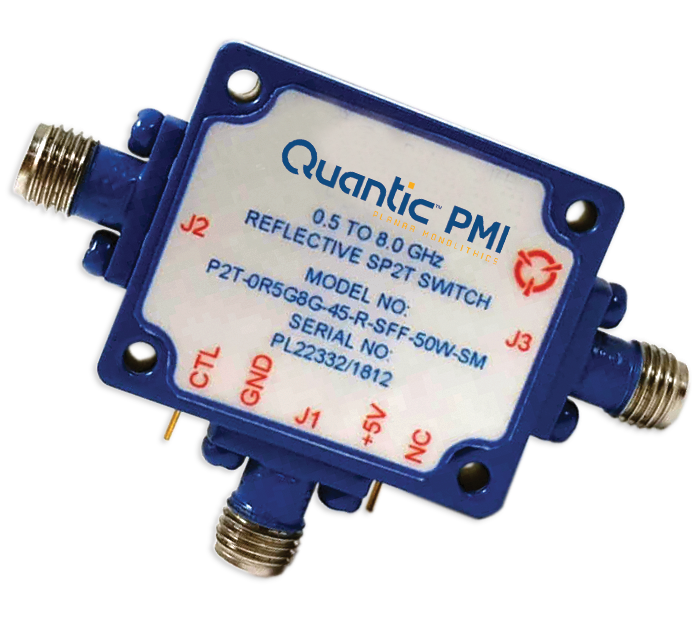

PMI Model No. P2T-0R5G8G-45-R-SFF-50W-SM is a SP2T Reflective Switch designed to operate over the 0.5 to 8.0 GHz frequency range. This model is designed to handle 50 Watts average input power.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.5 GHz
Frequency Max: 8.0 GHz
Insertion Loss (Typ): 2.65 dB
Isolation (Typ): 49 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 100 ns
Frequency: SP2T
Configuration: 0.5 to 8.0 GHz
Isolation: 49 dB Typ @ 0.5 to 1.0 GHz,
Measured 49.42 dB Min (J1-J2), 48.58 dB Min (J1-J3),
33 dB Typ @ 6.0 to 8.0 GHz
Measured 33.88 dB Min (J1-J2), 33.42 dB Min (J1-J3)
Insertion Loss: 0.90 dB Typ @ 0.5 to 1.0 GHz,
Measured 0.91 dB Max (J1-J2), 0.86 dB Max (J1-J3),
2.65 dB Typ @ 6.0 to 8.0 GHz
Measured 2.65 Max (J1-J2), 2.48 dB Max (J1-J3)
VSWR In/Out: 1.25:1 Typ @ 0.5 to 1.0 GHz
Measured 1.25:1 Max (J1-J2),
1.24:1 Max (J1-J3), 2.25:1 Typ @ 6.0 to 8.0 GHz
Measured 2.26:1 Max (J1-J2), 2.13:1 Max (J1-J3)
Input Power: 50 Watts
Switching Speed: 1 µs Max, 100 ns Typ - Measured 69 ns
Control Signal: TTL
Power Supply: +5 V @ 100 mA Max - Measured 32 mA
Connectors: SMA (F) - J1, J2, J3
Size: 1.20” x1.0” x 0.5”
Finish: Painted Blue *Mounting surface free of paint
Environmental Ratings:
Temperature (Operating): -45 ºC to +85 ºC
Temperature (Storage): -54 ºC to +125 ºC
