P2T-0R75G18G-80-R-512-SFF Active

SP2T Reflective Switch

P2T-0R75G18G-80-R-512-SFF
Product Feature

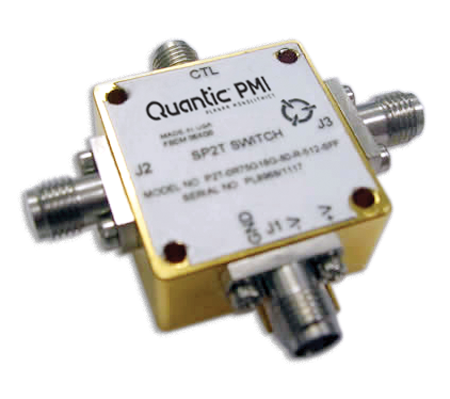

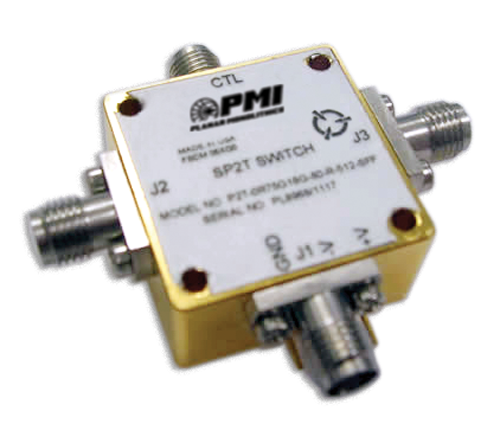

Quantic PMI Model P2T-0R75G18G-80-R-512-SFF is a single pole, double throw, reflective switch that operates from 750 MHz to 18.0 GHz which handles 1 W CW input power. The port-to-port isolation is greater than 80 dB. This model has low insertion loss while offering a fast-switching speed of 30 ns maximum.  Housing size is 1.0" x 1.0" x 0.5", weight 1.5 oz. Typ and has SMA Female Connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Reflective
Frequency Range (GHz): 0.75 to 18
Frequency Min (GHz): 0.75
Frequency Max (GHz): 18
Insertion Loss (dB): 3 dB Typ
Insertion Loss - Typ (dB): 3 dB
Isolation (dB): 80 dB Min - Measured 835 dB
Isolation - Typ (dB): 80 dB
Input Power (dBm): 30 dBm CW Max
Switching Speed: 25 ns Max - Measured 25 ns
Switching Speed (Typ): 25 ns
Power Supply: +5 VDC @ 35 mA Typ - Measured 35 mA,
-12 VDC @ 25 mA Typ - Measured 25 mA
Control Signal: Single Line TTL
VSWR In/Out: 2.0:1 Max - Measured 1.93:1
Connectors: SMA Female
Size: 1.0" x 1.0" x 0.5"
Weight: 1.5 oz. Typ
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
