P2T-100M40G-95-T-512-292FF Active
Absorptive, SP2T Pin Diode Switch
Additional Documents
- Product Feature
- Test Report - 1/3/13
- 3D Model
- PL14459 - Unit Data
- PL22962 - Unit Data
- PL22962-1 - Unit Data
- PL22963 - Unit Data
- PL24125 - Unit Data
- PL24126 - Unit Data
- PL24771 - Unit Data
- PL24772 - Unit Data
- PL24773 - Unit Data
- PL27211 - Unit Data
- PL27212 - Unit Data
- PL27251 - Unit Data
- PL28192 - Unit Data
- PL30230 - Unit Data
- PL33867 - Unit Data
- PL33867-1 - Unit Data
- PL33868 - Unit Data
- PL33868-1 - Unit Data
- PL33869 - Unit Data
- PL34360 - Unit Data
- PL34361 - Unit Data
- PL34361-1 - Unit Data
- PL37223 - Unit Data
- PL37224 - Unit Data
- PL37225 - Unit Data
- PL37225-1 - Unit Data
- PL37226 - Unit Data
- PL37227 - Unit Data
- PL37228 - Unit Data
- PL38423 - Unit Data
- PL38424 - Unit Data
- PL38425 - Unit Data
- PL38426 - Unit Data
- PL38427 - Unit Data
- PL45726 - Unit Data
- PL51730- Unit Data
- PL60175 - Unit Data
- PL60830 - Unit Data
- PL61446 - Unit Data
- PL61447 - Unit Data
- PL61448 - Unit Data
- PL61449 - Unit Data

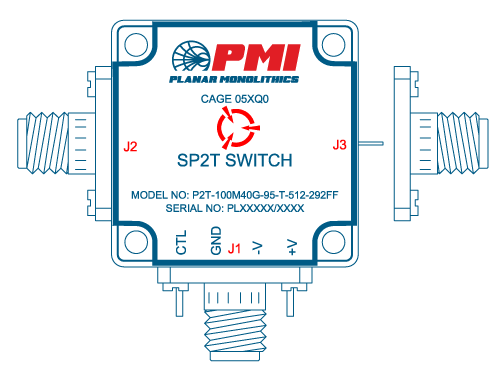

PMI Model P2T-100M40G-95-T-512-292FF is an absorptive, single pole, two throw pin diode switch that operates over the frequency range of 0.1 to 40 GHz and incorporates a TTL compatible driver for easy system integration. Housing size is 1.0' x 1.0" x 0.5" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.1 to 40 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 6 dB Max, 4 dB Typ (0.1 to 18 GHz), 5 dB Typ (18 to 26.5 GHz), 5.5 dB Typ (26.5 to 40 GHz) |
| Insertion Loss - Typ (dB): | 6 dB |
| Isolation (dB): | 100 dB Typ, 95 dB Min (0.1 to 18 GHz), 95 dB Typ, 80 dB Min (18 to 26.5 GHz), 75 dB Typ, 70 dB Min (26.5 to 40 GHz) |
| Isolation - Typ (dB): | 100 dB |
| Input Power (dBm): | 20 dBm CW Max |
| Switching Speed: | 100 ns Max. - Measured 20 ns |
| Switching Speed (Typ): | 100 ns |
| Power Supply: | +5 VDC @ 120 mA Typ, -12 VDC @ 65 mA Typ |
| Control Signal: | TTL Logic |
| VSWR In/Out: | 2.5:1 Max, 2.0:1 Typ - Measured 1.79:1/1.93:1 |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female - removable |
| Size: | 1.0' x 1.0" x 0.5" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
| Fungus: | MIL-STD-810C, Method 508.2 |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
