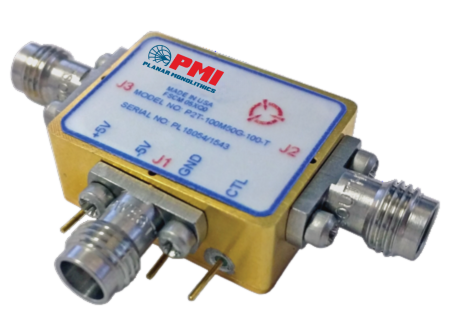

P2T-100M50G-100-T Active
SP2T Solid State Switch
Buy Now
Additional Documents
- Product Feature
- 3D Model
- Test Report 1 - 11/4/17
- Test Report 2 - 3/23/20
- Test Report 3 - 3/25/20
- S-Parameters
- PL21963 - Unit Data
- PL22252 - Unit Data
- PL27146 - Unit Data
- PL28442 - Unit Data
- PL30299 - Unit Data
- PL32088 - Unit Data
- PL32089 - Unit Data
- PL33642 - Unit Data
- PL33643 - Unit Data
- PL33692 - Unit Data
- PL34916 - Unit Data
- PL36457 - Unit Data
- PL38187 - Unit Data
- PL38600 - Unit Data
- PL38620 - Unit Data
- PL38621 - Unit Data
- PL38673 - Unit Data
- PL39507 - Unit Data
- PL39508 - Unit Data
- PL40610 - Unit Data
- PL44275 - Unit Data
- PL45640 - Unit Data
- PL45641 - Unit Data
- PL49496 - Unit Data
- PL49496-1 - Unit Data
- PL49497 - Unit Data
- PL49498 - Unit Data
- PL49498-1 - Unit Data
- PL49499 - Unit Data
- PL49500 - Unit Data
- PL49586 - Unit Data
- PL49587 - Unit Data
- PL50108 - Unit Data
- PL52314 - Unit Data
- PL53847 - Unit Data
PMI Model P2T-100M50G-100-T is an absorptive, 0.1 to 50 GHz, SP2T switch featuring low insertion loss and high isolation in a slim package. Package size is 1.00" x 0.75" x 0.40" and uses 2.4 mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.1 to 50 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 50 |
| Insertion Loss (dB): | 4.5 Max (0.1 to 18 GHz) 6 Max (18 to 40 GHz) 8.5 Max (40 to 50 GHz) |
| Isolation (dB): | 85 Min (0.1 to 40 GHz) 70 Min (40 to 50 GHz) |
| Input Power (dBm): | 20 dBm Max |
| Switching Speed: | 50 ns Max |
| Power Supply: | +5 VDC @ 100 mA Max -5 VDC @ 100 mA Max |
| Control Signal: | TTL Logic "0" = J1-J2 On TTL Logic "1" = J1-J3 On |
| VSWR In/Out: | 2.2:1 Max (0.1 to 18 GHz) 2.5:1 Max (18 to 40 GHz) 3.0:1 Max (40 to 50 GHz) |
| Connectors: | 2.4 mm (F) |
| Size: | 1.0" x 0.75" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond B |
| Shock: | MIL-STD-202, Method 213B Cond B |
| Vibration: | MIL-STD-202, Method 204D Cond B |
| Altitude: | MIL-STD-202, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
