P2T-100M50G-100-T-OPT40 Active
Absorptive, SP2T Pin Diode Switch
Buy Now

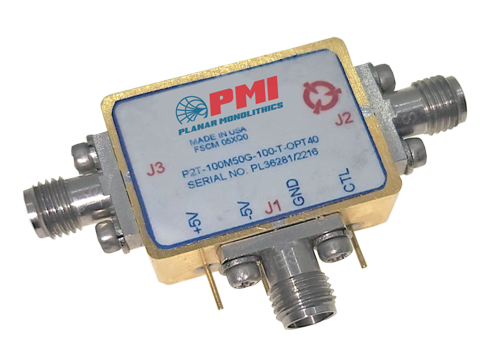

Quantic PMI Model P2T-100M50G-100-T-OPT40 is an SP2T Absorptive Switch that operates from 0.1 to 40 GHz. This PIN diode-based switch can handle up to 20 dBm of CW input power and has an insertion loss of <6 dB with a switching speed of <50 ns and provides >80 dB of isolation. The switch requires a DC supply of ±5 V and consumes less than 100 mA of current and can be controlled via 1-Bit TTL Logic signals. This switch is available in a package that measures 1.0" x 0.75" x 0.4" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.1 to 40 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 4.5 dB Max (0.1 to 18 GHz), 6 dB Max (18 to 40 GHz) |
| Insertion Loss - Typ (dB): | 4.5 dB |
| Isolation (dB): | 85 dB Min (0.1 to 18 GHz), 80 dB Min (18 to 40 GHz) |
| Input Power (dBm): | 20 dBm CW Max |
| Switching Speed: | 50 ns Max |
| DC Voltage & Current: | +5 VDC @ 100 mA Max -5 VDC @ 100 mA Max |
| Control Signal: | TTL Logic "0" = ON (J1 to J2) TTL Logic "1" = ON (J1 to J3) |
| VSWR In/Out: | 2.2.0:1 Max (0.1 to 18 GHz), 2.5:1 Max (18 to 40 GHz) |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.0" x 0.75" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
