P2T-100M6G-80-T-SFF-JW Active

Terminated SP2T Switch

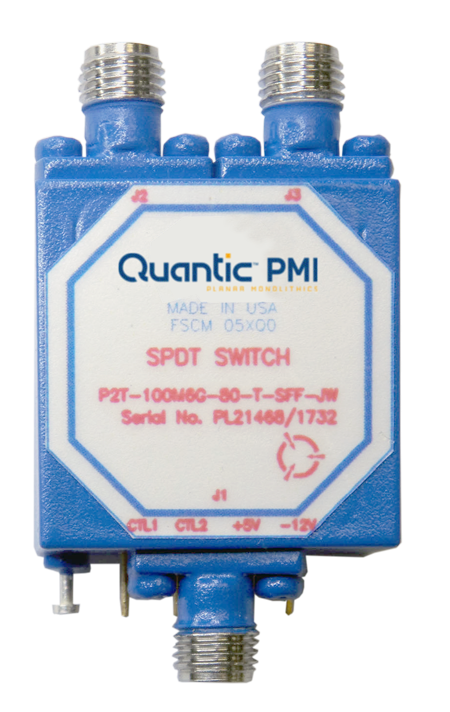

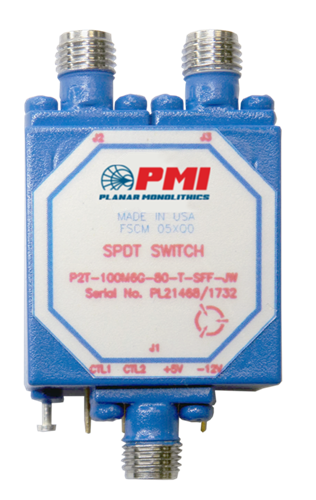

P2T-100M6G-80-T-SFF-JW
Product Feature

Quantic PMI Model P2T-100M6G-80-T-SFF-JW is a terminated single pole, two throw switch that operates from 100 MHz to 6.0 GHz which handles +23 dBm CW input power. The port-to-port isolation is 80 dB typically. This model has low insertion loss while still offering a fast-switching speed of 150 ns typical.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Absorptive
Frequency Range (GHz): 0.1 to 6
Frequency Min (GHz): 0.1
Frequency Max (GHz): 6
Insertion Loss (dB): 2.5 dB Typ, 2.75 dB Max
Insertion Loss - Typ (dB): 2.5 dB
Isolation (dB): 80 dB Typ, 70 dB Min - Measured 824 dB
Isolation - Typ (dB): 80 dB
Input Power (dBm): 23 dBm CW Max
Survival Power: 33 dBm CW Max
Switching Speed: 150 ns Typ, 200 ns Max - Measured 156 ns
Switching Speed (Typ): 150 ns
Power Supply: +5 VDC - Measured @ 46 mA,
-12 VDC - Measured @ 48 mA
Control Signal: TTL Logic, "0" = Insertion Loss, "1" = Isolation
VSWR In/Out: 2.0:1 Max - Measured 1.23:1
Power & Control Connector: Solder Pins
Connectors: SMA Female
Size: 1.00" x 1.00" x 5.00"
Finish: Painted Blue
Weight: 1.5 oz. Typ
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 ºC to +85 ºC
Temperature (Storage): -54 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
