P2T-10M1G-80-T-SFF * Active
Absorptive, High Speed, SP2T Switch
Buy Now

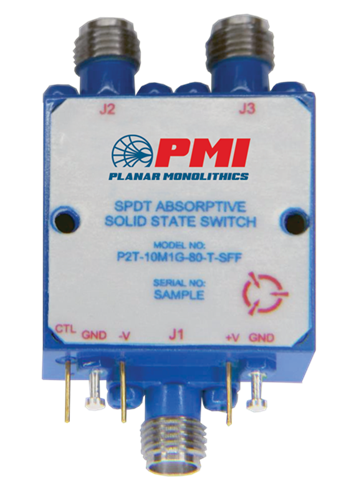

PMI Model P2T-10M1G-80-T-SFF is an Absorptive, High Speed, Single Pole Two Throw Switch capable of switching within 200 ns maximum over the frequency range is 0.01 to 1 GHz with an 80 dB isolation and insertion loss of 1.3 dB. Housing size is 1.0" x 1.0" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.01 to 1 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 1 |
| Insertion Loss (dB): | 1.3 dB Max |
| Insertion Loss - Typ (dB): | 1.3 dB |
| Isolation (dB): | 80 dB Typ |
| Input Power (dBm): | 30 dBm Max (Survival), 20 dBm Max (Operating) |
| Impedance: | 50 Ohm |
| Switching Speed: | 200 ns Max - Measured 180 ns |
| Switching Speed (Typ): | 200 ns |
| Power Supply: | +5 VDC, 100 mA Typ - Measured 24 mA, -15 VDC, 100 mA Typ - Measured 73 mA |
| Control Signal: | Solder Pin, TTL Compatible |
| VSWR In/Out: | 1.5:1 Typ - Measured 1.24:1 |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
