P2T-10M8G-45-R-50W-AL Active
SP2T Reflective Switch
Additional Documents
- Product Feature
- Test Report - 6/23/2020
- Test Report - 9/7/2018
- Demo - Unit Data
- PL31036 - Unit Data
- PL36092 - Unit Data
- PL36092-1 - Unit Data
- PL36093 - Unit Data
- PL36094 - Unit Data
- PL36095 - Unit Data
- PL36096 - Unit Data
- PL36096-1 - Unit Data
- PL36097 - Unit Data
- PL36097-1 - Unit Data
- PL36098 - Unit Data
- PL37681 - Unit Data
- PL37682 - Unit Data
- PL37683 - Unit Data
- PL37684 - Unit Data
- PL37685 - Unit Data
- PL37686 - Unit Data
- PL37687 - Unit Data
- PL37688 - Unit Data
- PL37689 - Unit Data
- PL37690 - Unit Data
- PL37691 - Unit Data
- PL37692 - Unit Data
- PL42340 - Unit Data
- PL42341 - Unit Data
- PL42342 - Unit Data
- PL42342-1 - Unit Data
- PL42343 - Unit Data
- PL42344 - Unit Data
- PL42345 - Unit Data
- PL50060 - Unit Data
- PL50061 - Unit Data

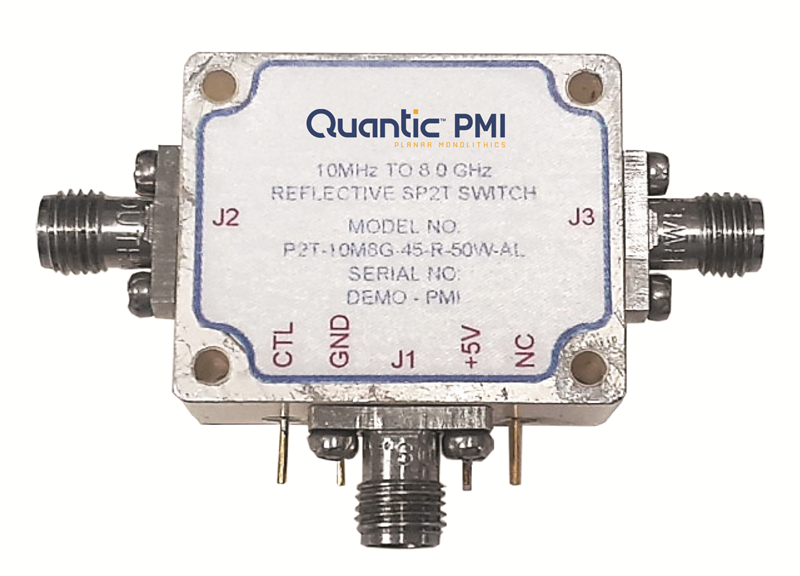

Quantic PMI Model P2T-10M8G-45-R-50W-AL is a single pole, two throw reflective switch designed to operate over the 0.1 to 8 GHz frequency range that is designed to handle 50 W average input power. Housing size is 1.2" x 1.0" x 0.5" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 0.01 to 8 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 0.9 dB Max, 0.8 Typ (0.01 to 1 GHz), 1.25 dB Max, 1.2 dB Typ (1 to 4 GHz), 1.8 dB Max, 1.75 dB Typ (4 to 6 GHz), 2.6 dB Max, 2.5 dB Typ (6 to 8 GHz) |
| Isolation (dB): | 50 dB Min, 51 dB Typ @ 0.01 to 1 GHz, 40 dB Min, 41 dB Typ @ 1 to 4 GHz, 37 dB Min, 38 dB Typ @ 4 to 6 GHz, 36 dB Min, 37 dB Typ @ 6 to 8 GHz |
| Switching Rate: | 15 kHz Max, 50% Duty Cycle |
| Input Power (dBm): | 50 W Average |
| Switching Speed: | 100 ns Typ |
| Cold Switching: | Yes |
| Power Supply: | +5 VDC @ 100 mA Max |
| Control Signal: | TTL (See Product Feature) |
| VSWR In/Out: | 2.0:1 Max, 2.0:1 Typ @ 0.01 to 1 GHz, 1.5:1 Max, 1.45:1 Typ @ 1 to 4 GHz, 1.7:1 Max, 1.6:1 Typ @ 4 to 6 GHz, 2.0:1 Max, 1.8:1 Typ @ 6 to 8 GHz |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.2” x 1.0” x 0.5” |
| Finish: | Painted Blue (No Paint on Mounting Surface) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +85 ºC |
| Temperature (Storage): | -54 ºC to +125 ºC |
| Environmental: | MIL-STD-810E |
| EMI / EMC: | MIL-STD-461 |
