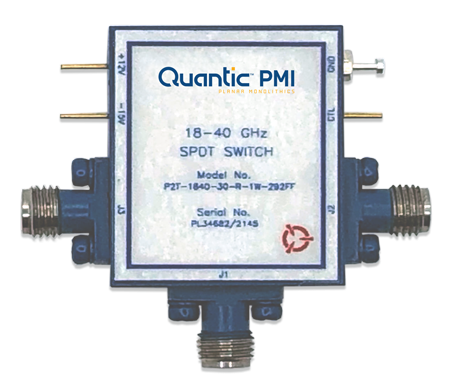

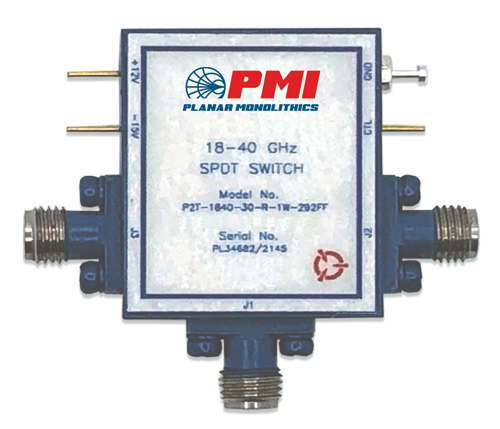

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | 18 to 40 |
|---|
| Frequency Min (GHz): | 18 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 2.5 dB Typ, 3 dB Max |
|---|
| Insertion Loss - Typ (dB): | 2.5 dB |
|---|
| Isolation (dB): | 35 dB Typ, 30 dB Min |
|---|
| Input Power (dBm): | 1 W CW Max |
|---|
| Switching Speed: | 100 ns Typ, 500 ns Max |
|---|
| DC Voltage & Current: | +12 VDC @ 50 mA Max
-15 VDC @ 50 mA Max |
|---|
| Control: | TTL Logic "O" = J 1 to J3 ON, J 1 to J2 OFF
TTL Logic "1" = J1 to J2 ON, J1 to J3 OFF |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|
| Size: | 1.00" x 1.20" x 0.40" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 1.5 oz Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +95 ºC |
|---|
| Temperature (Storage): | -65 ºC to +150 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204B Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
