P2T-1840-60-R-1W-292FF Active
SP2T Reflective Switch
Additional Documents
- Product Feature
- STEP MODEL
- Test Report - 12/18/23
- PL43185 - Unit Data
- PL43186 - Unit Data
- PL43187 - Unit Data
- PL43188 - Unit Data
- PL43189 - Unit Data
- PL43190 - Unit Data
- PL43191 - Unit Data
- PL43192 - Unit Data
- PL43193 - Unit Data
- PL43194 - Unit Data
- PL43195 - Unit Data
- PL43196 - Unit Data
- PL43197 - Unit Data
- PL43198 - Unit Data
- PL43199 - Unit Data
- PL43200 - Unit Data
- PL43201 - Unit Data
- PL43202 - Unit Data
- PL43203 - Unit Data
- PL43204 - Unit Data
- PL44077 - Unit Data
- PL44078 - Unit Data
- PL44079 - Unit Data
- PL44080 - Unit Data
- PL44081 - Unit Data
- PL44082 - Unit Data
- PL44083 - Unit Data
- PL44769 - Unit Data
- PL44770 - Unit Data
- PL44771 - Unit Data
- PL44772 - Unit Data
- PL44773 - Unit Data
- PL44774 - Unit Data
- PL44775 - Unit Data
- PL44776 - Unit Data
- PL44777 - Unit Data
- PL44778 - Unit Data
- PL44779 - Unit Data
- PL44780 - Unit Data
- PL44781 - Unit Data
- PL44782 - Unit Data
- PL44783 - Unit Data
- PL44784 - Unit Data
- PL44785 - Unit Data
- PL44786 - Unit Data
- PL44787 - Unit Data
- PL44788 - Unit Data
- PL44789 - Unit Data
- PL44790 - Unit Data
- PL44791 - Unit Data
- PL44792 - Unit Data
- PL44793 - Unit Data
- PL44794 - Unit Data
- PL44795 - Unit Data
- PL44796 - Unit Data
- PL44797 - Unit Data
- PL44798 - Unit Data
- PL45320 - Unit Data
- PL45321 - Unit Data
- PL45322 - Unit Data
- PL45323 - Unit Data
- PL45324 - Unit Data
- PL45325 - Unit Data
- PL45326 - Unit Data
- PL45327 - Unit Data
- PL45328 - Unit Data
- PL45329 - Unit Data
- PL46257 - Unit Data
- PL46258 - Unit Data
- PL46259 - Unit Data
- PL46260 - Unit Data

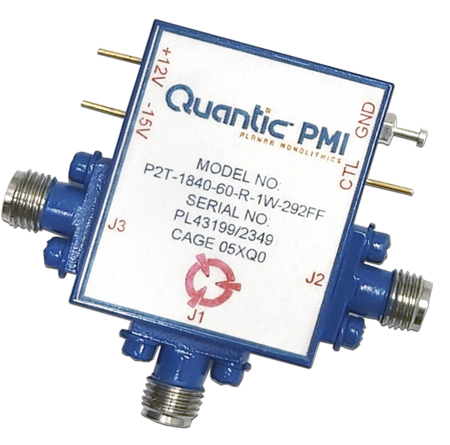

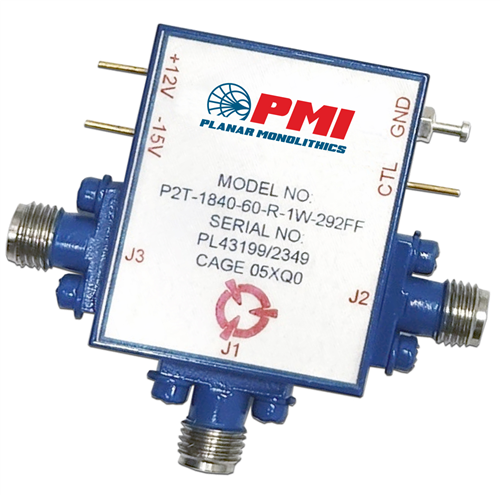

PMI Model P2T-1840-60-R-1W-292FF is a reflective single pole, two throw switch that operates from 18 to 40 GHz which handles 1 W CW power with a port-to-port isolation of 30 dB minimum and has low insertion loss while still offering fast switching speed. Housing size is 1.0" X 1.2" X 0.4" and uses 2.92mm connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 3.25 dB Typ, 3.5 dB Max |
| Isolation (dB): | 60 dB Min |
| Input Power (dBm): | 1 W CW Max |
| Switching Speed: | 100 ns Typ, 500 ns Max |
| DC Power Supply: | +12 VDC Max @ 100 mA -15 VDC Max @ 50 mA |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.00" x 1.20" x 0.40" |
| Finish: | Painted Blue |
| Weight: | 1.5 oz Max |
| Export Classification (ECCN): | EAR99 |
