P2T-18G40G-65-R-292FF-SP Active
SP2T Pin Diode Switch

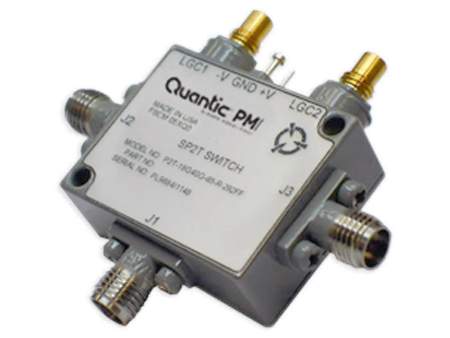

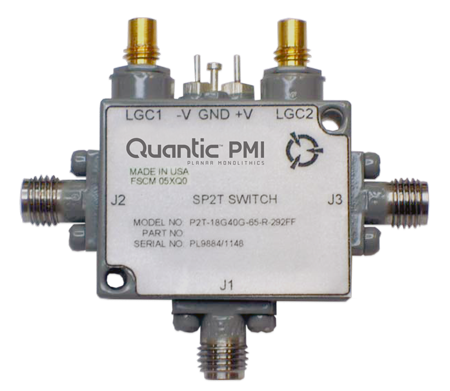

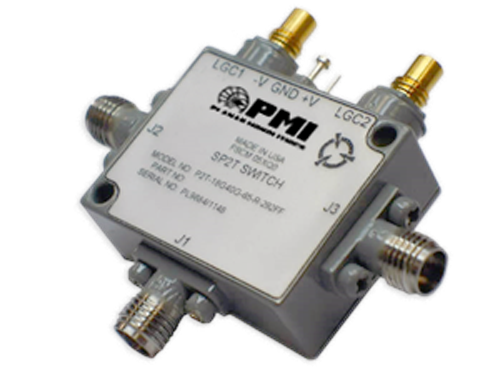

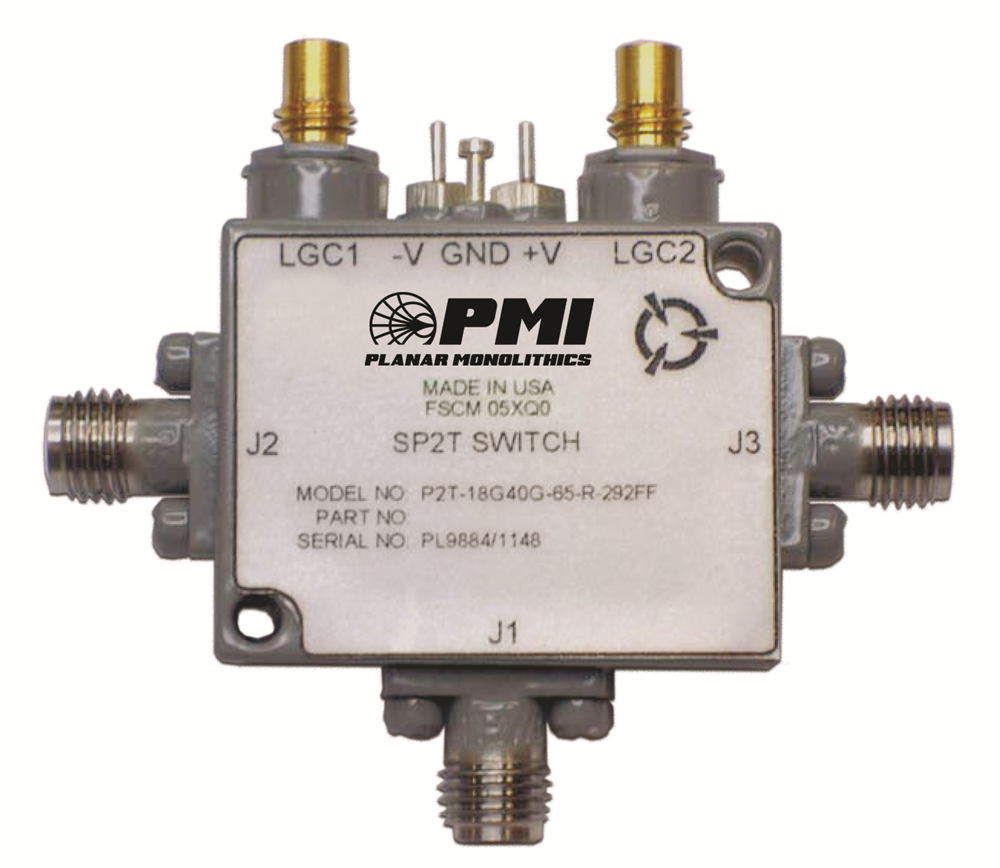

Quantic PMI Model P2T-18G40G-65-R-292FF-SP is a single pole, two throw, pin diode switch that operates over the 18.0 to 40.0 GHz frequency range. This model incorporates a TTL compatible driver for easy system integration,.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 3.5 dB Max (18 to 26.5 GHz), 4.5 dB Max (26.5 to 40 GHz) |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 65 dB Min (18 to 26.5 GHz), 55 dB Min (26.5 to 40 GHz) |
| Isolation - Typ (dB): | 65 dB |
| Input Power (dBm): | 20 dBm Max (30 dBm Damage Level) |
| Switching Speed: | 100 ns Max |
| Switching Speed (Typ): | 100 ns |
| Power Supply: | +5 VDC @ 75 mA Typ, -12 VDC @ 50 mA Typ |
| Control Signal: | Low "0" - ON, High "1" - OFF, J1-J2 - ON (LGC1 "0", LGC2 "1"), J1-J3 - OFF (LGC1 "1", LGC2 "0") *Surge Protection Included on TTL Lines |
| VSWR In/Out: | 2.3:1 Max (18 to 26.5 GHz), 2.5:1 Max (26.5 to 40 GHz) |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.2" x 0.95" x 0.46" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -65 ºC to +110 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D |
